Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Other, placer gold separator, Placer gold separator
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingzhou Yongli Mining And Dredging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, placer gold separator, Placer gold separator
Place of Origin Shandong, China
Brand Name YONGDELI
Model Number YLGS599
Voltage 380V, 380V
Power(W) 1000KW
Dimension(L*W*H) 4620mmx1845mmx1580mm
Weight 300kg to 5 tons
Certification BV and SGS
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

                                  Placer gold separator



1. Introduction to gold separator



Most of our gold separators are gravity type gold separating machines. For now we have shaking table, instigating sluice box, jig and centrifugal concentrator. The advantage is that all our gold separators are friendly to the environment not like the leeching method.



2. Features of gold separator

Our gold separators own high concentration ratio, high recovery efficiency. All are easy to operate and with low maintenance.  We are guided by the principle when designing gold separators, which is easy to operate, low maintenance but with a satisfactory recovery efficiency.



3. Technical parameter of shaking table ( table concentrator)



Model 6-S 7.6 6-S 4.08 6-S 1.95 6-S 0.5
Deck type Course ore Deck Fine sand
Deck		 Slime Deck Three different kinds of decks are available
Beneficiation Area (m 2 ) 7.6 7.6 7.6 4.08 1.95 0.5
Deck Size Length (mm) 4450 4450 4450 3000 2100 1100
transmission end width (mm) 1855 1855 1855 1320 1050 500
Concentrate end width (mm) 1546 1546 1546 1100 850 430
Maximum Feeding Size (mm) 2 0.5 0.15 Sand -2
Slime -0.1		 Sand -2
Slime -0.074		 Sand -2
Slime -0.074
Feeding Amount 30-60 T/d 10-20 T/D 15-25 T/D 0.4-1.5 T/h 0.3-0.8 T/h 0.05-0.2 T/h
Feeding Density (%) 25-30 20-25 15-25 10-30
Stroke (mm) 16-22 11-16 8-16 6-30 12-28 9-17
Frequency (F) 45-48 18-53 50-57 210-320 250-450 280-460
Water added 80-150 T/d 30-60 T/d 10-17 T/d 0.3-1.5 T/h 0.2-1 T/h 0.1-0.5 T/h
Transverse slope of Deck 2°30-4°30 1°30-3°30 1°-2° 0-10° 0-8° 0-10°
Longitudinal slope of Deck 1.4 0.92
Cross-section Shape of Deck Rectangular Saw-tooth Triangle Available Rectangular, Saw-tooth, Triangle
Motor Power (Kw) 1.1 1.1 1.1 1.1 1.1 0.55
Transmission Mechanism Eccentric linkage



4.Pictures of our main gold separators

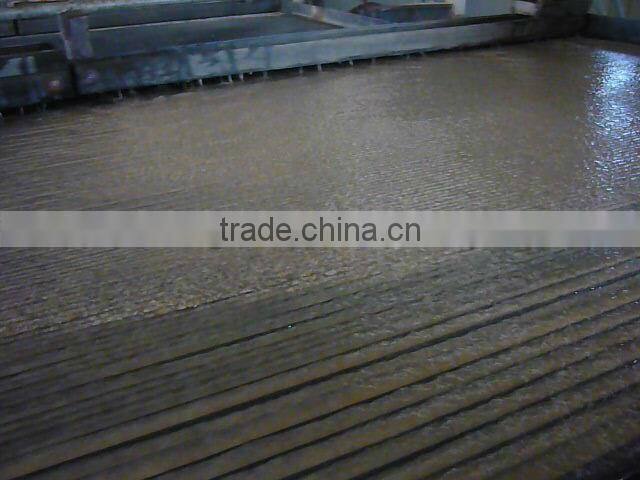

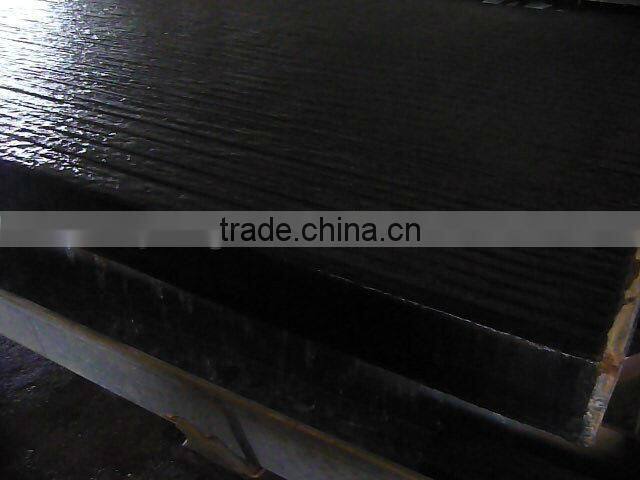

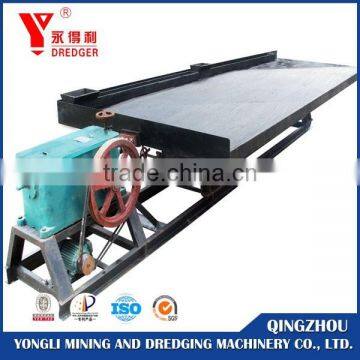

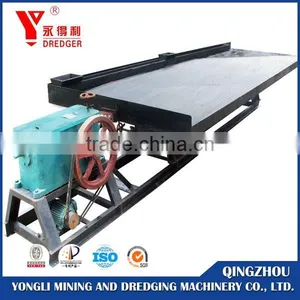

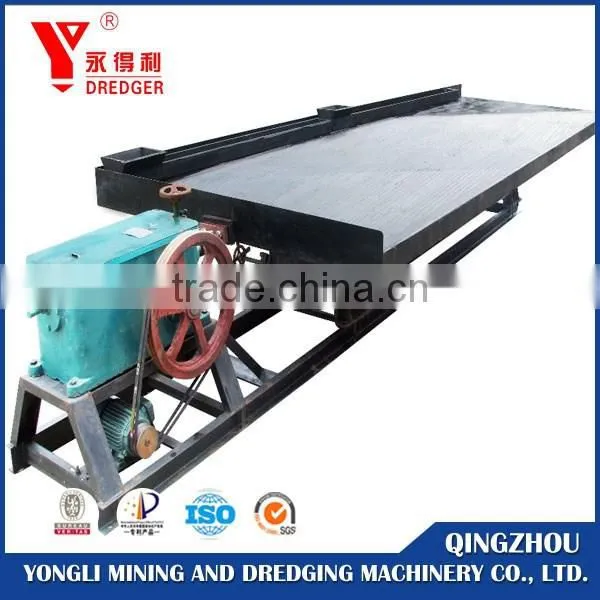

6-S shaking table

separating machines with good quality



separating machines with good quality



separating machines with good quality



separating machines with good quality



Pulsating sluice box

separating machines with good quality



Centrifugal type gold separator

separating machines with good quality



Jig machine for nugget gold and diamond

separating machines with good quality



Customers visiting our factory

separating machines with good quality



separating machines with good quality



separating machines with good quality



separating machines with good quality



We are the professional manufacturers of gravity type gold separators. Welcome to contact us for more details.
