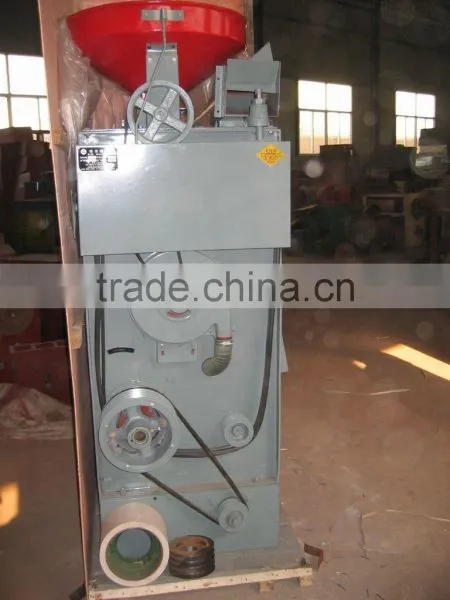

Rice mill machine SB-30

SB 10 Rice mill machine general description:

General Description:

The rice milling Unit SB-30 is a comprehensive equipment for rice –processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber-roller for hulling. Winnowing and air-blowing to husk. The machine may complete all the processing works from cleaning grain, rice husking in hulling to rice husking in succession. As to husk , chaff, blighted grain as well as polished rice ,they are all pushed out of machine separately. This machine is a comprehensive expression for all the good qualities of varied kinds of rice-processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally. It`s structure is compact and well organized. It is of less noise and can be easily operated and reliably regulated. Rice after processed consist of less chaff and few of them are damaged(broken). The neatness of such rice may be up to above standard 1. It consumes less power and is efficient in work . It is indeed a combined Rice mill unit of a new generation.

2.Main Technical specifications;

l         Rice huller

1. Rubber roller Φ222×152.4(mm)(diameter*length)
2. R.P.M of fast roller: 1200 r/min
3. R.P.M of slow roller:890 r/min
4. R.P.M of husk blower:1680 r/min

l         Rice polisher:

1. Iron cylinder:Φ118×282mm(outer diameter of protrudes*length)
2. Screw conueyor:Φ110*113mm(outer diameter*length)
3. Hexagonal screen:Φ134*264mm(diameter of inscribed circle*length)                                  Mesh of hexagonal screen:0.95*15mm(width*length)
4. R.P.M of main shaft of rice polisher:900 r/min
5. R.P.M of high pressure blower:3400 r/min

l         Power reguired: 15kw or 18HP

l         Output

Long-shaped rice 1100-1300 kg/h (standard 1)

Round-shaped rice 1200-1500 kg/h(standard1)

l         Overall dimensions of machine:1095×955×1600mm(L×W×H)

l         Weight of machine:230 kg approx.(Excluding the weight of power engine)

Packing wooden case: 1050*760*1300mm

3.  Power electromotor price:    15 kw    $319.00/set
