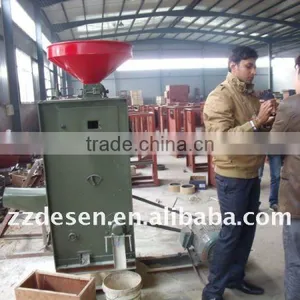

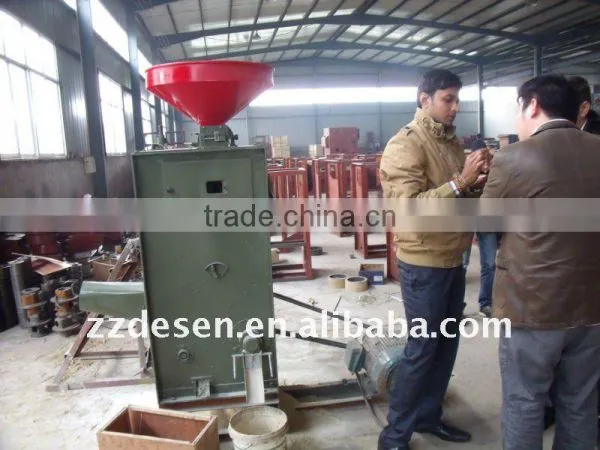

iron roller roll rice mill SB-5

SB-5 iron roller Rice mill general description:

Description

The rice milling unit model SB-5 is a small type of special eguipment for rice processing. It is composed of hopper-feed way, rubber-roller for hulling. Winnowing and air-blowing to husk, ricehusking etc. The machine may complete all the processing works from cleaning grain. Well as hulling to ricehusking in succession. As to husk,chaff,blighted grain as polished rice, they are all pushed out of machine separately.

 The machine`s structure is compact and well-organired, small in volume, light in weight. It is of less noise and can be easily operated and reliably regulaled. Rice after processed consist of less chaff and few of them are damaged(broken).The neatness of such rice may be up to above standard I. It consumes less power and is efficient in work. It is a new type of eguipment for rice-processing ang fits for indiuidual management in the countryside.

Main technical specifications

•         Rice huller

1. Rubber roller Φ153×63.5(mm)(diameter*length)
2. R.P.M of fast roller: 1703 r/min
3. R.P.M of slow roller:1311 r/min
4. R.P.M of husk blower:1787 r/min

•   Rice polisher:

1. Iron cylinder:Φ62×247mm(outer diameter of protrudes*length)
2. Screw conueyor:Φ68*80mm(outer diameter*length)
3. Hexagonal screen:Φ73*231mm(diameter of inscribed circle*length)                                 Meshof hexagonal screen:0.95*15mm(width*length)
4. R.P.M of main shaft of rice polisher:1240 r/min
5. R.P.M of high pressure blower:3456 r/min

l        Power reguired: 5.5kw

l        Output

Long-shaped rice 260~350 kg/h (standard 1)

Round-shaped rice 300~400kg/h(standard1)

l        Overall dimensions of machine:860×692×1290mm(L×W×H)

l        Weight of machine:130 kg(Excluding the weight of power engine)

10.  Power electromotor price:     5.5 kw    $236.00/set
