Specifications
This soxhlet extractors is fully enclosed within the loop structure, with a water separator and condenser, coolerBrief introduction soxhlet extractors
This soxhlet extractors is suitable for medicine, plants, pharmaceutical, food and chemical industry pressure, vacuum, decoction, soaking, percolation, extraction, Soxhlet extraction, dynamic thermal reflow forced circulation and many other pharmaceutical technology. Soxhlet dynamic extraction unit is very suitable for the extract and concentrat of the vegetable concentrates, essential oils, aromatic oils. Is the ideal equipment of Colleges and universities, research institutes and enterprises, small and medium sized pharmaceutical laboratories’ small batch production.
Equipment Features of soxhlet extractors
1. Equipment efficiency is high: This soxhlet extractors is the latest ultra-compact Soxhlet dynamic extraction unit developed by our company's, this soxhlet dynamic extraction unit combine the Soxhlet extraction and dynamic heat reflux extraction, can be do the Extraction and concentration test for two different materials at the same time. The work Efficiency is twice of the common dynamic heat reflux extraction and concentration unit .
2. Material conversion rate high: soxhlet extractors is a Classic Process of the Chinese medicine preparation, Dynamic heat reflux extraction of forced circulation made on the basis of the Optimization for Single reflux extraction enrichment, the soxhlet dynamic extraction unit combines the advantages of two extraction processes, combined with our factory exquisite craftsmanship, so the soxhlet dynamic extraction unit conversion rate of material is doubled higher than Conventional dynamic extraction enrichment equipment.
3. High quality liquid extraction: in this soxhlet extractors soxhlet extraction can be vacuum units, effectively reduce the loss of heat-sensitive active ingredients. While avoiding vegetable protein dissolved into the liquid from the material due to the heat extraction, affect the quality of the liquid. Meanwhile, the dynamic extraction unit uses frames mixing, so that a large volume of Chinese herbal medicines can be fully contact with solvents, accelerate the active ingredients Separate out from the API
4. High efficiency of extraction and concentration: Feeding time, the original liquid (solution: water, alcohols, petroleum ether, etc.) in a closed recycle equipment. The active ingredient can be continuously extracted from the raw materials.Therefore, the device can be saving 30% raw materials under the same quantity of raw materials extraction amount. As the steam in condensed is secondary use, the soxhlet dynamic extraction unit can save energy consumption of about 50%.
5. Soxhlet extractors within the system, dynamic loop extraction system, vacuum evaporated system can be combined linkage run flexibly according to your needs, it’s can also be run independently separately. Can reduce the power consumption of devices at maximum state.
6. Equipment with compact structure, station area is small, the actual area around the 2M2, can be equipped with mobile casters for easy operation.
7. Our soxhlet extractors is fully enclosed within the loop structure, with a water separator and condenser, cooler, can efficiently extract the aromatic oils and vegetable oils.
The main technical parameters of soxhlet extractors
Model |
HST |
Capacity |
3L---500L |
Maximum heating power |
Depending on the model, 3.5kw-30kw |
Mixing motor power |
Depending on the mode,75w-1.5kw |
Extraction form |
Soxhlet + Dynamicre flux extraction + percolation |
Heating form |
Oil heating / heat generator / external steam |
Mixing control |
0-1500 rev / min, digital, stepless |
Temperature Control |
Temperature -65 °C |
Device Control |
Digital control machine / PLC touch screen control |
Vacuum |
-0.05~-0.08MPa |
Use solvent |
Water, ethanol, and petroleum ether |
Equipment Material |
SUS304/SUS316L |
Vacuum evaporated system |
Can be equipped with DSX-LZ stainless steel rotary vacuum evaporator |
Material handling capacity |
Depending on the model, 1.2 - 300 kg / hr range |
Dimension |
1600*850*1800MM |
Pictures of soxhlet extractors

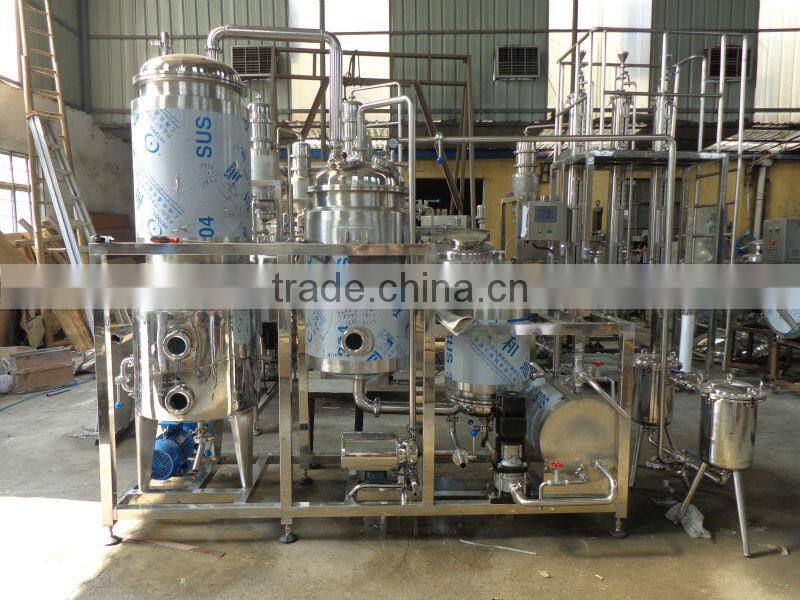

soxhlet extractors
Soxhlet extractors after packing
