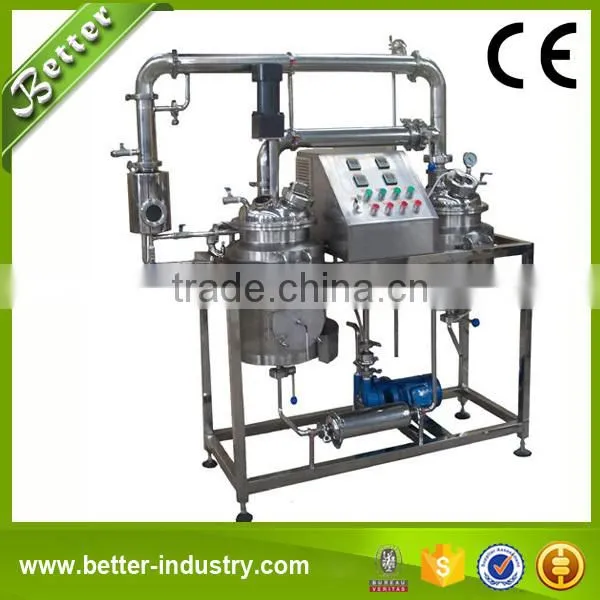

Ultrasonic Solvent Extraction Stevia Equipment/Machine
Introduction of Ultrasonic Solvent Extraction Stevia Equipment/Machine
It is suitable for normal pressure and temperature ultrasonic extraction, ultrasonic extraction, dynamic hot
reflux extraction and extraction by organic solvent recovery and other process in Chinese traditional medicine,
health products, biological, pharmaceutical, cosmetic and food industries.The equipment can be dynamically
continuous ultrasonic extraction.This is the ideal equipment for colleges and universities, research institutes,
research and development departments and laboratories of enterprises and institutions,and many varieties,
small batch production of pharmaceutical plant.
Equipment control system: (two choices according to demand)
NO. | functional description | Digital display control system | PLC touch screen automatic control |
1 | Heating temperature control | Digital temperature control table | Dynamic display of touch screen, setting |
2 | Ultrasonic power control | digital control | The LED screen dynamic display, setting, control |
3 | Time display | digital control | digital control |
4 | Key valve | Manual/ball valve, butterfly valve | Pneumatic valve/solenoid valves |
5 | Working condition | digital display | Touch screen process shows |
6 | Parameters of the switch control | Manual push button/button | Touch screen display, setting, control |
Features of Ultrasonic Solvent Extraction Stevia Equipment/Machine
- High efficiency: This device is our latest ultracompact ultrasonic dynamic heat reflux extraction and concentration unit.On the basis of the original dynamic heat reflux extraction unit, this device optimizes ultrasonic generator and solvent recovery equipment into one equipment to make the ultrasonic dynamic extraction, extraction, filtration, solvent recovery, oil condensation and other production processes finished in one step.It has greatlysaved raw materials and working hours, work efficiency is improved by 60% to 80% higher than the general extraction equipment.
- High conversion rate: This device use the unique physical effects and cavitation function of ultrasound, can make the plant cell tissue broken or deformed.Vibrations between the solute particle, acceleration shock, and strengthening of sound pressure shear make the material form a local point of extreme high temperature and pressure and promote the effective component of Chinese medicine precipitation.Compared with the traditional process,the extraction rate increases up to 45%.
- Ultrasonic extraction is extracted at normal temperature, effectively reduces the loss of heat -sensitive components. Meanwhile the ultrasonic extraction and concentration units use the titanium shaped ultrasonic generator, air mixing (or mechanical agitation) so that a large volume of Chinese herbal medicines can be fully exposed to the ultrasound probe.It accelerates precipitation of the active ingredient in the raw materials.
- When the ultrasonic dynamic extraction and concentration units are in use,the ultrasonic extraction equipment and the vacuum decompression enrichment facilities not only can operate independently but also can be linked to run.
- In order for the easy taking of the dregs of decoction, the ultrasonic dynamic extraction and concentration units are equipped with a large aperture manhole or hand hole, and also with internal and external dual filter system to prevent the small crew residue from flowing into the concentration unit.
- The units have compact structure and occupy a small area of about 2 ~ 6M2, small units can be equipped with mobile casters for easy operation
- Widely adaptability:The ultrasonic dynamic extraction and concentration units of Shanghai Better Industry extract the herbal ingredients without being limited by the component polarity and the size of molecular weight.The units are suitable for the extraction of vast majority of Chinese medicine herbs and various ingredients.This device is fully enclosed within the loop structure, equipped with a water separator and condenser, cooler,and precious solvent can be reused many times.
- Multi-frequency combination:The units can achieve single-frequency,dual-band, triband,multi-frequency ultrasonic extraction.The ultrasonic frequency between 15-80KHz can be configurated on demand.
- Equipment selectable frequency range: 15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60 KHz,80KHz.
Parameters of Ultrasonic Solvent Extraction Stevia Equipment/Machine
- Ultrasonic generator: 28 KHZ ,55 KHZ).
- Filter material: stainless steel material basket,stainless steel filter.
- Ultrasonic control: digital ultrasonic control
- The extracting tank heating area: 0.25 M2
- Ultrasonic timer: digital
- Heating timer: digital
- Interlayer water pressure: the atmospheric pressure
- Water extraction temperature: room temperature to 95 degrees,adjustable
- Alcohol extraction temperature: room temperature to 73 degrees,adjustable
- Power supply: single 50 HZ, 220 V
- Extraction tank volume: 20L (Three layers of insulation hot water heating system.)
- Extraction tank inside the water cycle: small heat pumps.
- Material: the whole machine all adopt high quality food grade SUS304 2B, suitable for weak acid,
- weak alkali cleaning equipment
- The equipment surface treatment: mirror polishing tank surface, outer surface drawing inferior smooth processing.
- Device size: 450*250*550 (length * width * height,can be customized according to customer's requirements)
Picture of Ultrasonic Solvent Extraction Stevia Equipment/Machine
Payment Term
If the total amount below $5000, it should be 100% prepayment.
If the total amount above $5000, it should be 50% prepayment; the balance paid before loading.
Delivery Time
30 working days after prepayment received
Quality guarantee
One year after shipment excluding the wearing and tearing parts.
Validity of the quotation
This quotation is valid for one month
Installation
We will assemble and test the machine before packing. Also send English manual. If customer need, we will send one engineer for assembling and training of workers. USD100 per person per day, food, accommodation and air-ticket will be on clients.
What does BETTER need from me to quote a price?
1.Raw material
2.Production capacity per batch
What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.
Can I use the machine to extract several kinds of raw materials?
Yes,of course.
Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your
Reference.
What heating way does your machine support?
Electricity/gas/wood/steam heating.
What is your material of your machine?
Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you
a discount.
Do you have machines in stock?
No,our machine is produced according to your request.
How will my order be packed, can you provide the installation service?
Packed in plywood case.
We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
Why Choose BETTER?
1.We are Alibaba Assessed 5 years Gold Supplier.
2.We are a factory manufacturing Stevia Equipment/Machine , best production capability, best quality control, best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.
