Specifications
Herb extraction equipment datas:Model:HDT
Capacity:3L---1000L
Device Control:Digital control machine
Dimension:1300mm*650m
Herb extraction equipment description:
This herb extraction equipment is suitable for medicine, health care products, bio-pharmaceuticals, cosmetics, food and other industries ambient pressure extraction, ultrasonic extraction,ultrasonic essential oils, aromatic oils Ingredient extract and Extraction Vacuum pressure concentrate and other technology.This herb extraction equipment is the ideal for universities, research institutes and enterprises, laboratories and pharmaceutical research and development departments of many varieties, small batch production use.
Parameters of herb extraction equipment:
Model | HDT |
Capacity | 3L---1000L |
Maximum heating power | Depending on the model, 3.5kw-20kw |
Mixing motor power | Depending on the mode,75w-180kw |
High temperature magnetic pump power | Depending on the mode,55w-200kw |
Ultrasonic Power | Depending on the mode. 100w--1800kw |
Mixing control | 0-1500 rev / min, digital, stepless |
Temperature Control | Temperature -65 °C |
Device Control | Digital control machine |
Use solvent | Water, ethanol, and petroleum ether |
Equipment Material | SUS304/SUS316L |
Vacuum evaporated system | Can be equipped with DSX-LZ stainless steel rotary vacuum evaporator |
Ultrasonic frequency | 20KHz frequency automatic tracking (standard) |
Material handling capacity | Depending on the model, 1.2 - 50 kg / hr range |
Dimension | 1300mm*650mm*1700mm |
Features of herb extraction equipment:
1. Equipment efficiency: This herb extraction equipment is the latest ultra-compact ultrasonic dynamic extraction and concentration unit developed by our company's, this chinese medicine equipment optimize the product on the basis of the original dynamic extraction machine,integrated the small vacuum evaporated device in this herb extraction equipment , use the ultrasonic dynamic extraction, extraction, filtration, concentrated under reduced pressure, oil condensate and other production processes to saving raw materials and working hours, work efficiency have been increased by 50% to 100% than the average multi-extraction equipment.
2. Our herb extraction equipment with the compact structure, fully exert the features of the ultrasonic shaped type generator, ultrasonic effect to the raw materials directly, using ultrasound to enhanced the mechanical action of Herbal extracts, cavitation, local high vibration, high impact, high sound pressure shearing, so that the extraction time shortened 4/5 or more than traditional methods, medicinal raw material processing capacity big.
3. Regarding the HDT Series herb extraction equipment, the chinese medicine equipment and the vacuum evaporated device can be operate independently in use, it’s can also be linked operation.
4. Material conversion rate high, herb extraction equipment is room temperature extraction, the active ingredient of the raw materials is not likely to lose, in the process of the concentrated in vacuo, the evaporated chamber working at the low temperatures, made the active ingredient of the heat-sensitive Within raw materials can be maximize retention. This can be make sure the quality of the material extract better.
5. Shanghai Yuda herb extraction equipment adaptability: it’s do not limited to ingredients polarity and molecular size for extract Chinese herbal. It’s applies to the extract of vast majority of Chinese herbal extracts and various ingredients;This herb extraction equipment is equipped with water separator and efficient condenser, aroma oils are vegetable oils can be extracted.
Equipment selectable frequency range:15KHz,20KHz,28 KHz,30 KHz,35 KHz,40 KHz,50 KHz,60 KHz,80KHz.
Pictures of herb extraction equipment
herb extraction equipment
herb extraction equipment

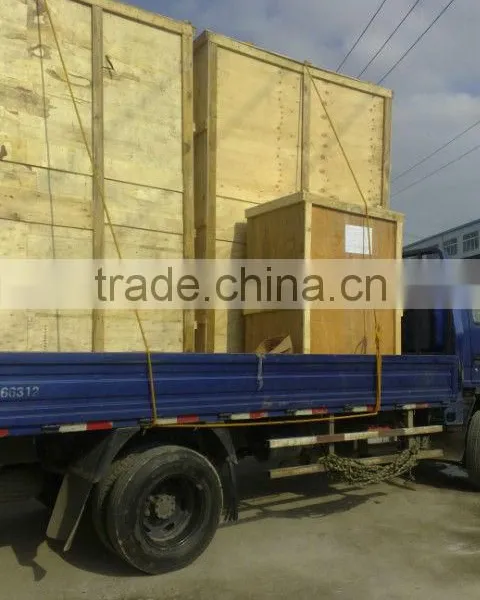

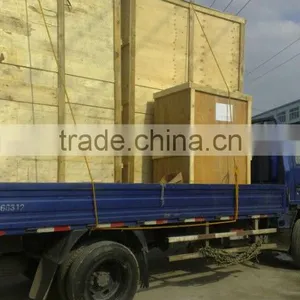

herb extraction equipment after packing
