Specifications
1. Basket in water.2. Operation part has adopted PLC or touch screen control system, this accords to customer's demand.
| Model | EC10 | EC20 | EC30 | EC50 | EC100 | EC150 | EC200 | EC300 |
| Voltage | 10V | 20V | 30V | 50V | 100V | 150V | 200V | 300V |
| Power | 4.0KW | 4.5KW | 5.5KW | 9KW | 12KW | 14KW | 25KW | 25KW |
| Specifications |
1. Steam extraction part is popular with the structure of basket-in-water 3. This unit is automatically operate. 4. All kinds of plants can be the material of Essential oil Extractor. |
|||||||
1. Brief instruction of Essential Oil Extractor
Essentail Oil Extrator is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.
2. Special Design of Essential Oil Extractor
a. Steam extraction part is popular with the structure of basket-in-water Essential Oil Extractor.
b. Our Essential Oil Extractor operation part has adopted PLC or touch screen control system, this accords to customer’s demand.
3. Main Technical Datas of Essential Oil Extractor
a. Power: 4.5kw, 380v/50Hz, Three Phase
b. Volume of Distillation Pot: 20L
c. Heating Area of Extraction Tank: 0.33M2
d. Condensing Area of Condenser: 0.72M2
e. Cooling Area of Cooler: 0.70m2
f. Vacuum Pressure for Distillation: 0.3mpa
g. Moisture Extraction Temperature: 50~100c
h. Power Of Electric Heater: 4.5 kw (Includes Oil Heating System)
i. Cooling From Tap Water
4. Pictures of Essential Oil Extractor
200L Essential Oil Extractor
Oil-water Seperator of Essential Oil Extractor
Detail of Essential Oil Extractor
More detail of Essential Oil Extractor
Raw Material of Essential Oil Extractor
All kinds of plants can be the raw material of Essential Oil Extractor

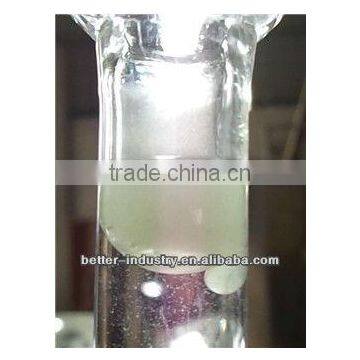

Final Product of Essential Oil Extractor
Thank you for interested in our Essential Oil Extractor!
