Specifications
1.hydraulic system built-in with tidy appearanceing various plastic and powder wares
3.C-frame
4.easy to operate

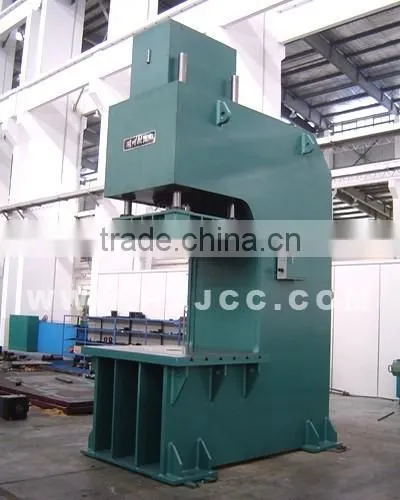

C-frame type,hydraulic system built-in with tidy appearance, optional of preset pressure or preset stroke, made for straightening shafts and sectional material, press-fitting sleeve parts, bending,embossing and drawing as well as pressing various plastic and powder wares. C-frame machine supplies easy approach to operate in three directions. Nominal capacity: 10-25000KN
Product feature
1.The C-body design, whole body casting,stable performance, use small space and easy to operate.
2.With PLC control,easy programming process control action,positioning accuracy, high precision.
3.Equipped with pressure sensors,displays the actual pressure,pressure range can be set to detect the product is qualified or not.
4.Safety designed,using both hands to operate,with emergency stop button and jog up and down function.
5.Key and Foot Switch two cycle start modes.
6.Control mode can change according to customer requirements.
7.Widely used for bearings,gears and other precision press-fit parts.
8.Infrared protection and Pressure sensor can be configured (Optional).
9.Failure warning, pre-diagnosis, fault diagnosis function (optional).
| Item | Unit | YF30-2.5 | YF30-4 | YF30-6.3 | YF30-10 | YF30-16 | YF30-25 | YF30-40 | YF30-63 | YF30-100 | YF30-200 | YF30-315 | YF30-500 | |
| Nominal Force | KN | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 2000 | 3150 | 5000 | |
| Max.Working Pressure | Mpa | 8 | 12.5 | 16 | 20 | 20 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Ram Stroke | mm | 125 | 200 | 200 | 250 | 320 | 350 | 400 | 400 | 450 | 450 | 450 | 1200 | |
| Throat Depth | mm | 110 | 125 | 180 | 250 | 250 | 280 | 320 | 320 | 320 | 350 | 350 | 1500 | |
| Daylight | mm | 210 | 360 | 360 | 450 | 520 | 560 | 600 | 650 | 710 | 710 | 710 | 1600 | |
| Table Size(LRxFB) | mm | 300x200 | 320x240 | 360x320 | 500x420 | 560x480 | 630x520 | 700x580 | 710x600 | 710x630 | 710x630 | 1000x650 | 2500x2500 | |
| Blanking Hole | mm | Φ80 | Φ80 | Φ80 | U100 | Φ100 | Φ145 | Φ125 | Φ165 | Φ80 | / | Φ170 | / | |
| Table Height above Floor | mm | 900 | 900 | 900 | 700 | 700 | 700 | 700 | 800 | 820 | 700 | 700 | 400 | |
| Ram Speed | Descent | mm/s | 38 | 38 | 55 | 45 | 45 | 115 | 63 | 115 | 110 | 180 | 180 | 130 |
| Work | 38 | 38 | 55 | 25 | 10 | 15 | 14 | 8 | 8 | 8 | 8~15 | 5~12 | ||
| Return | 100 | 100 | 140 | 130 | 80 | 120 | 96 | 105 | 90 | 150 | 120 | 100 | ||
| Overall Size | LRxFB | mm | 1105x555 | 1105x555 | 1295x595 | 1125x740 | 1215x790 | 1485x860 | 1540x860 | 1700x950 | 1900x860 | 1240x2540 | 1905x2245 | 4850x2500 |
| Height above Floor | 1720 | 1860 | 1900 | 1820 | 1985 | 2030 | 2164 | 2488 | 2705 | 3440 | 4190 | 7620/6000 | ||
| Motor Power | kw | 1.5 | 2.2 | 3 | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 22 | 30 | 30 | |
