HJS32 Sheet Metal Cutting and Bending Machine

HJS32 Sheet Metal Cutting and Bending Machine thumbnail-1
HJS32 Sheet Metal Cutting and Bending Machine photo-1
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Shengli
Contact Supplier Request Quote Chat Now
Huzhou Machine Tool Works Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Shengli

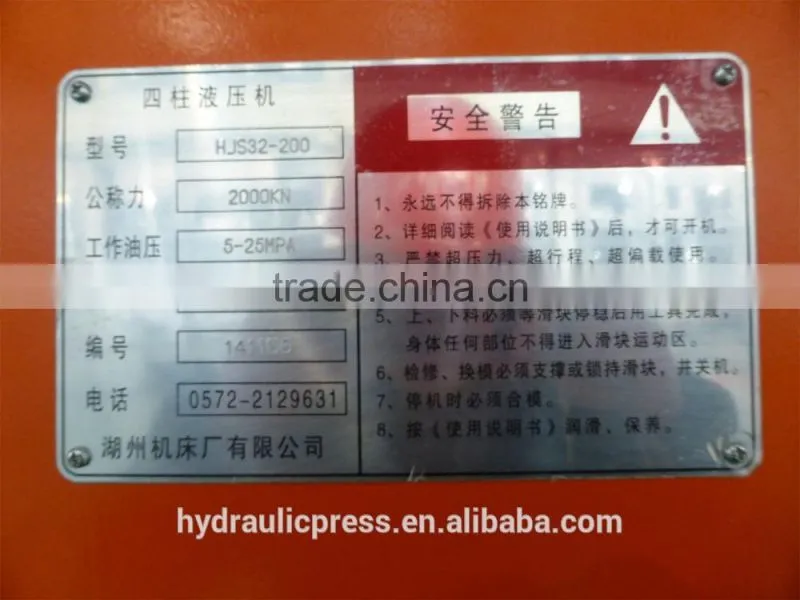

Model Number HJS32-200
Voltage 220v, 380v, 380 v, 220 v
Power(W) 18.5 kw
Dimension(L*W*H) 2360x2000x3830 mm
Weight Depend on Detail Model
Certification CE, SGS
Warranty All Life, One Year for Free, All life, 1 year for free
After-sales Service Provided Engineers available to service machinery overseas



FAQ

 Where is your company located?

We're located in Huzhou Economic Development Zone, near Shanghai and Hangzhou city.



 Applications & Features

 The 32 series is designed for general-purposes suitable to a wide variety of plastic material press-works such as bending, flanging, sheet metal drawing, and also for straightening and press-fit in wide applications of plastic, rubber, electric-motor, automobile, ceramic ware, metal product, abrasive material, fireproof material, powder and metallurgy industries. If you intend to use it for blanking and punching, a buffer device should be ordered in addition to eliminate or mitigate compact and noise.



  Loaded with a stand-alone hydraulic station and electrical cabinet, optional of three operating modes of adjust(inch), manual and semi-automatic.



  Working pressure, speed and strokes of quick and slow descent can be regulated in the specified range to meet the required process. Providing two controls of preset stroke and preset pressure, if you choose the preset pressure, the press executes hold-pressure and delay, auto ram return after pressing action, and providing hold-pressure with motor run or motor stop as option.







Main Technical Data

Item Unit YF31-25 YB32-40A YC32-63A HJS32-100 HJS32-200 HJS32-315 HJS32-400
Serial Number   YW03 YW043 YW06 GYZ11N2 GYZ12M6 GYZ1242 GYZ11N5
Nominal Force KN 250 400 630 1000 2000 3150 4000
Eject Force KN 60 100 160 300 400 630 630
Return Force KN 110 150 125 160 240 300 350
Max.Working Pressure Mpa 25 25 25 25 25 25 25
Ram Stroke mm 250 320 500 630 710 800 800
Eject Stroke mm 125 150 160 200 250 300 300
Daylight mm 450 520 800 900 1120 1250 1250
Ram Speed Quick descent mm/s 45 55 110 185 200 220 220
Work 10~24 15~36 9~22 10~24 7.5~18 6~15 7.5~18
Return 55 105 105 140 150 150 210
Eject Speed Eject mm/s 100 150 90 75 95 75 110
Retreat 200 380 220 155 160 130 200
Opening Table Size Left-to-right mm 360 450 570 720 930 1260 1300
Front-to-back 320 400 500 630 900 1200 1300
Table Height above Floor mm 750 870 800 860 550 650 710
Overall Size Lefe-to-right mm 1100 1240 1850 2010 2360 2840 3600
Front-to-back 900 1120 1860 1690 2000 2000 2540
Height above Floor 1900 2260 2910 3490 3830 4340 4640
Motor Power kw 3 5.5 5.5 11 18.5 22 37





Item Unit HJS32-500 HJS32-500 HJS32-630 HJS32-800 HJS32-1000 HJS32-2500 HJS32-4000
Serial Number   GYZ11N6 YZ11P7 GYZ11N7 / / / /
Nominal Force KN 5000 5000 6300 8000 10000 25000 40000
Eject Force KN 1000 1000 1000 1250 2000 2500 4000
Return Force KN 380 570 430 720 1600 2000 4360
Max.Working Pressure Mpa 25 25 25 25 25 25 25
Ram Stroke mm 900 900 1000 1000 1000 1000 1000
Eject Stroke mm 300 300 300 350 450 500 500
Daylight mm 1500 1500 1600 1600 1600 1600 1700
Ram Speed Quick descent mm/s 250 160 250 150 150 150 150
Work 6~15 8~15 5~12 5~12 5~12 3~5 5
Return 185 125 165 120 75 74 55
Eject Speed Eject mm/s 75 75 75 80 60 50 60
Retreat 160 160 160 160 120 160 100
Opening Table Size Left-to-right mm 1400 1980 1900 1880 2000 3000 3500
Front-to-back 1400 1600 1600 1600 1800 2500 2500
Table Height above Floor mm 500 500 500 500 450 450 380
Overall Size Lefe-to-right mm 3750 4470 5140 5390 5940 8800 11085
Front-to-back 2620 2539 2539 2480 3000 3800 6350
Height above Floor 5220 5107 5570 5535 5400 6640 7088
Motor Power kw 37 44 36 60 74 81.55 161.33
