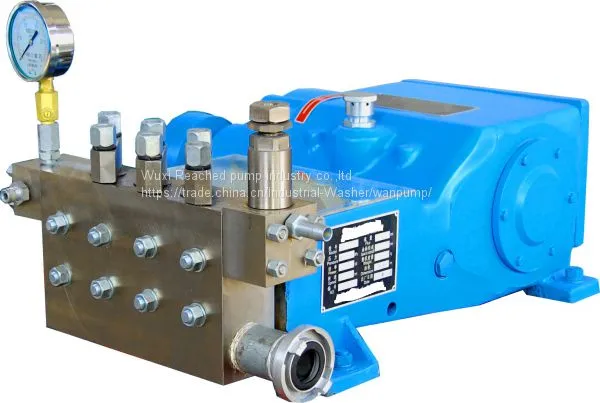

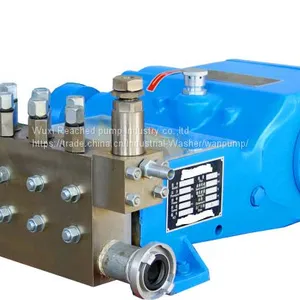

high pressure pump,high pressure cleaning pump(WP1-S)
- 20 Set / Sets per Month
- Shanghai
- T/T L/C
- 7 days
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | REACHED | Place of Origin: | China | Model Number: | WP1-S |
Application: | Fire | Fuel: | Diesel | Power: | Electric |
Usage: | Water | Theory: | Reciprocating Pump | Standard or Nonstandard: | Standard |
Structure: | Piston Pump | Pressure: | High Pressure |
Product Description
German WOMA technology triplex piston pump,triplex plunger pump,high pressure cleaning pumpInput speed:1480r/min, Stroke:60mm,gear ratio:3.650,pump speed:400 r/min
Power(kw) 7.5 11 15 18.5 22 Plunger diameter
Flow rate(L/Min) Maximum pressure(MPa)
25 15 22 22mm
30 13 18 25 24mm
32 12 17 22 25mm
40 9 14 18 24 27 28mm
48 8 12 16 20 23 30mm
55 7 10 14 17 20 32mm
66 6 9 12 15 17 35mm
85 5 7 9 11 13 40mm
105 4 6 8 9 11 45mm
