Magnetic Separation
Company profile
Shandong Hengchuan Ore Machinery Co. , Ltd, established in 2002, is leading ore machinery in china. Company covers area of 20000 square meters.
Our main products :Placer Gold Mining Machine ,Magnetic Separator ,Sand Mining and Washing Machine, Mining Dredgers ,Sand Barges, Particular Vessels, etc. They have been sold not in domestic market, but export to more than thirty foreign countries, like Philippines, Malaysia, North Korea , Mongolia, Cameroon, South Africa, Ghana, Brazil, etc.

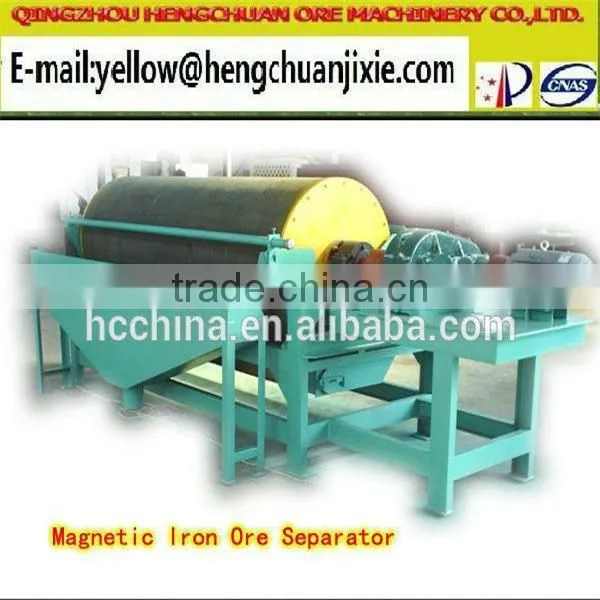

Strong Magnetic Force Separator
Short Introduction
1 Strong magnetic separator is designed with advanced technology . The magnetic force can get 1000-22000GS
2 Discharging usually by hairbrush and rubber belt
3 This machine applys to Manganese Mine , Hematite Mine , Limonte Mine , Quartz Mine ,kaolin Mine , Potassium Feldspar ,etc.
4 Have exported to lran , korea , Indonesia and many other countries .

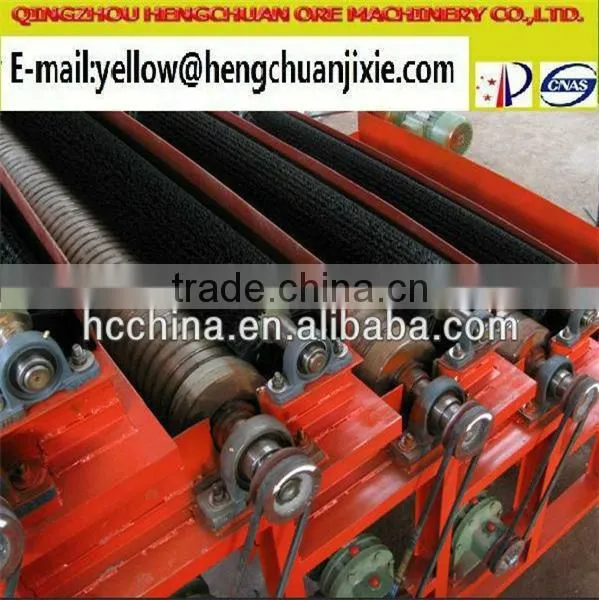

Discharge by hairbrush
Short Introduction
Yype |
Capacity T/h |
Power |
Magnetic strength GS |
Magnetic separator type mm |
HCQ-100 |
1-3 |
1-3 |
12000-14500 |
100*1000 |
HCQ-150 |
3-5 |
3-5.5 |
12000-14500 |
150*1200 |
HCQ-220 |
5-10 |
5.5-7.5 |
12000-14500 |
220*1500 |
HCQ-380 |
10-20 |
5.5-11 |
12000-14500 |
380*2000 |
Discharge by rubber belt
MAgnetic Separator plant Short Introduction
1 Dry magnetic separator is used to separate magnetic sand sized smaller than 10mm . It can lower about lower about 50% of power consumption of Ball Mill .
2 There are many models for choice , like Vertical type , Horizontal type , Single cylinder , Double cylinder and Multiple cylinder , etc .
3 If water source available , can adopt water separation machine , like CTS , CTB type magnetic separator .
4 Magnetic force is from 3800-4500GS . Capacity is from 100-200tons per hour .
5 According to the working condition , can adopt Jaw crusher , Hammer crusher or Roller crusher to crush the big materials .
Double cyclinder Vertical Separator
Short Introduction
Type |
Capacity T/h |
Power Kw |
Magnetic Strength Gs |
Magnetic separator type mm |
HCG-50 |
50 |
10-20 |
3500-4500 |
750*1800 |
HCG-100 |
100 |
15-30 |
3500-4500 |
900*2600 |
HCG-150 |
150 |
25-50 |
3500-4500 |
900*3000/1050*2600 |
HCG-200 |
200 |
30-80 |
3500-4500 |
1050*3000/1200*2800 |

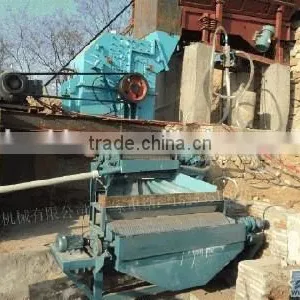

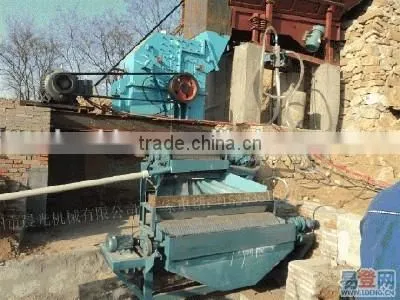

Plant with Crushers main technical parameters
Type |
Capacity T/h |
Power Kw |
Magnetic Strength Gs |
Magnetic separator type mm |
HCG-50 |
50 |
40-60 |
3500-4500 |
750*1800 |
HCG-100 |
100 |
50-80 |
3500-4500 |
900*2600 |
HCG-150 |
150 |
60-100 |
3500-4500 |
900*3000/1050*2600 |
HCG-200 |
200 |
70-120 |
3500-4500 |
1050*3000/1200*2800 |
