Ball Mill Mill Grinder Mill Group

Ball is the material to be broken, and then to smash the key equipment, widely used in cement, silicate products, new building materials, refractory materials, fertilizer, ferrous and nonferrous metal and glass ceramics and other production industries of all kinds of ores and other grind-able materials can be dry or wet grinding.

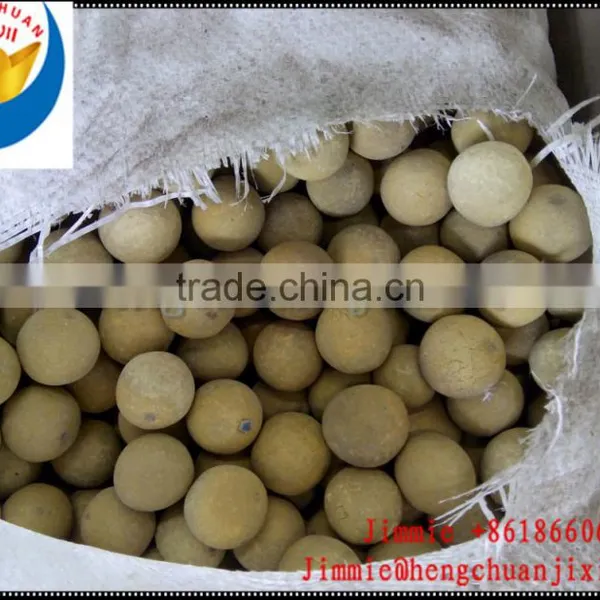

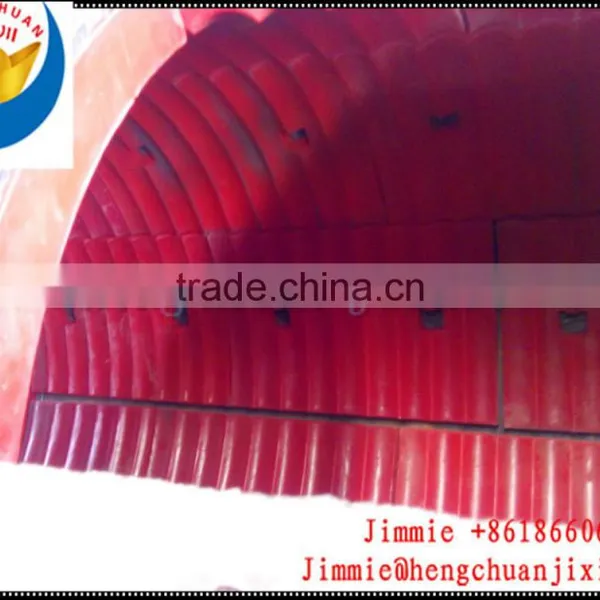

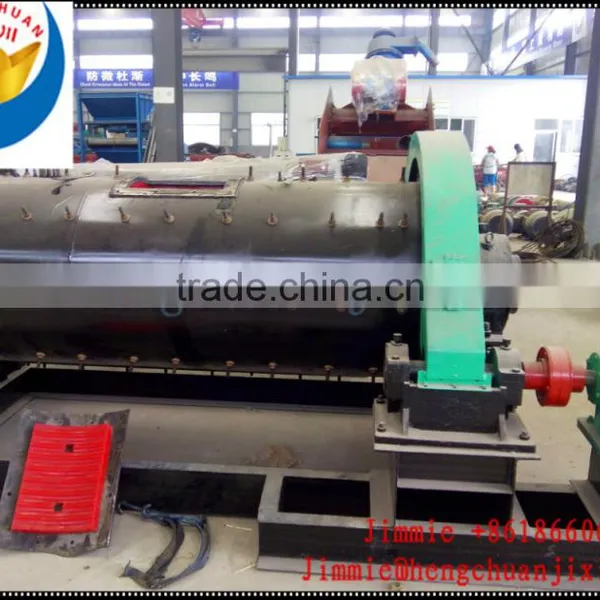

     This machine is a horizontal cylinder rotating mechanism, there are motor driven or outer gear, the two positions. Material from the feed device into the compound evenly into the air shaft spiral mill first warehouse, the warehouse has ladder liner board or corrugated liner, built with different specifications steel ball, rotating cylinder produces centrifugal force to the ball a certain height After the fall, have severe impact on the material and abrasive. The material in the first position coarse grinding, the single-compartment plate into the second warehouse, the warehouse lined with flat lining, the steel ball, the material to further grinding. Powder is discharged through the discharge grate plate to complete the grinding operation.

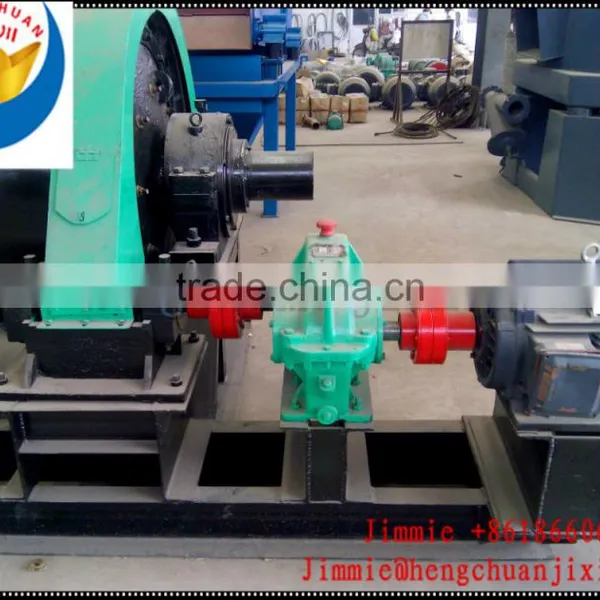

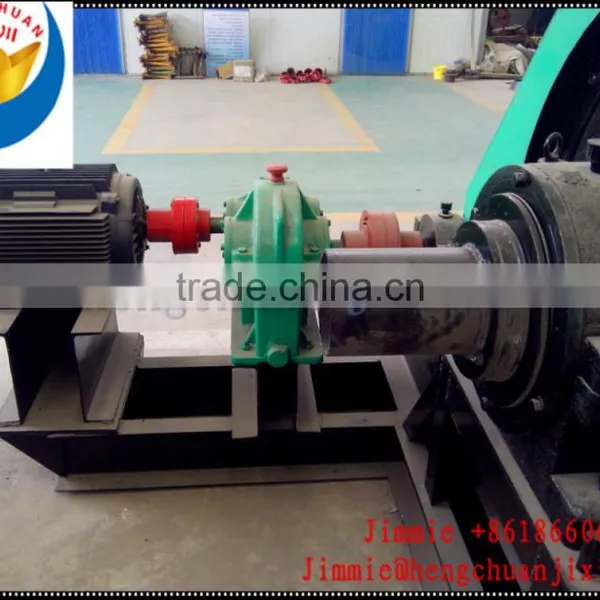

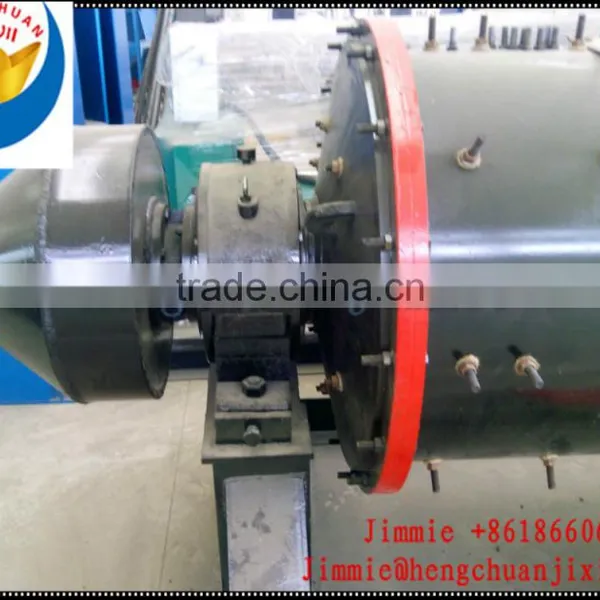

      Ball from the feeding part, discharging Department, Rotary Department, Transmission Division (reducer, small transmission gear, motors, electrical control) and other major components. Cast steel hollow shaft, lined with removable, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good abrasion resistance. The machine running smoothly, work reliably.
Top form
      According to materials and methods of discharge, optional dry ball mill and wet lattice-type ball mill.

The main technical parameters

          Model                            diameter1200×2400

Speed of bucket (r / min)      36

Weight of ball (t)                    3

feed size (mm)                      ≤25

 Discharge size (mm)           0.075-0.6

capacity (t / h)                       1.5-4.8

 Motor power (kw)                30

Total weight (t)                    12
