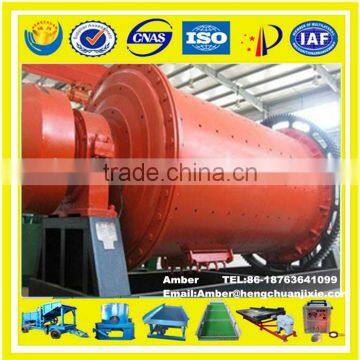

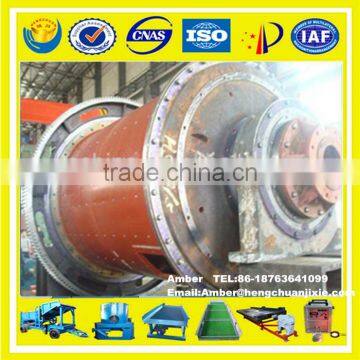

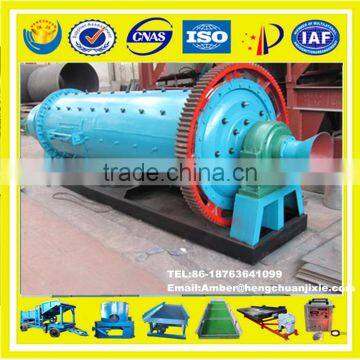

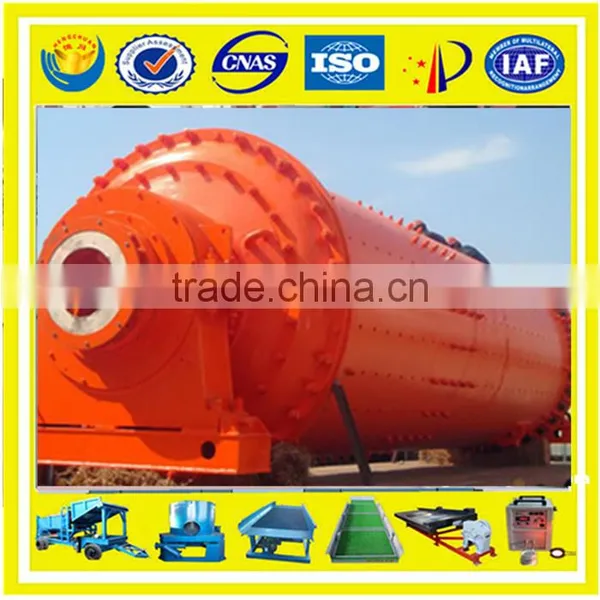

Good Clay Grinding Machine Mill Price/Ball Mill For Sale

Name: Good Clay Grinding Machine Mill Price/Ball Mill For Sale
Brand: HENGCHUAN
Availability: InStock

FOB Price

US$ 20,000 - 100,000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Ball Mill
Motor Type	AC Motor	Power(W)	30kw
Capacity(t/h)	1-2tons per hour	Place of Origin	Shandong, China
Brand Name	HENGCHUAN	Model Number	HCBM900*3000
Dimension(LWH)	550018001400mm	Weight	7.8t
Certification	ISO9001:2008	Warranty	one year

Packaging Details

By container for Good Clay Grinding Machine Mill Price/Ball Mill For Sale

Product Description

Good Clay Grinding Machine Mill Price/Ball Mill For Sale

Product Description

1.Introduction of Good Clay Grinding Machine Mill Price/Ball Mill For Sale

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Ball mill is an important equipment to grind the crushed materials which is widely used in powdermaking

production line including cement, silicate, newtype building material, refractory material, fertilizer, ore

dressing of ferrous metal and nonferrous metal, glass ceramics, etc. Further more, ball mill can grind

various ores and other materials with dry type and wet type.There are two types of ball mill, grate type

and overfall type seprated by different ways of material discharging. Grate type is a type of grinding mill

processes similarly to the sag mill or other mining crushers. Ball Grinding Machine is used to grind or mix

metals or raw materials for further processing. Various materials are placed into the mill drum and rotated

with the minedmaterials that are to be crushed. The ball mill contains materials meant for crushing and

grinding, such as balls of ceramic, smallrocks, or balls made from stainless steel. The internal device of

the ball mill grinds material into powderlike substances, and can rotate continuously for optimal grinding

and refinery production.

2.Feature of Good Clay Grinding Machine Mill Price/Ball Mill For Sale

1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

3.Working Principle of Good Clay Grinding Machine Mill Price/Ball Mill For Sale

This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material.

After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

4.Specification of Good Clay Grinding Machine Mill Price/Ball Mill For Sale

Model	Speed (r/min)	Max. weight of balls (t)	Input size (mm)	Output size (mm)
Φ900×1800	37	1.8	≤15	0.075-0.89
Φ900×2100	37	2.3	≤15	0.075-0.4
Φ900×3000	35	3.85	≤25	0.075-0.4
Φ1200×2400	35	4.6	≤25	0.075-0.4
Φ1200×2800	35	5.4	≤25	0.075-0.4
Φ1200×4500	35	8.6	≤25	0.075-0.4
Φ1500×3000	29	9	≤25	0.047-0.4
Φ1500×3500	29	10.5	≤25	0.047-0.4
Φ1500×4500	29	13.5	≤25	0.047-0.4
Φ1500×5700	29	17	≤25	0.047-0.4
Φ1830×3000	24	13.5	≤25	0.047-0.4
Φ1830×3600	24	14	≤25	0.047-0.4
Φ1830×4500	24	20	≤25	0.047-0.4
Φ1830×7000	24	31.5	≤25	0.047-0.4
Φ2100×3000	22	18	≤25	0.047-0.4
Φ2100x3600	22	20	≤25	0.047-0.4
Φ2100×4000	22	21.5	≤25	0.047-0.4
Φ2200×3600	21.7	25	≤25	0.047-0.4
Φ2200×7000	21.7	46	≤25	0.047-0.4
Φ2400×3600	21	28	≤25	0.047-0.4
Φ2400×4500	21	35	≤25	0.047-0.4
Φ2700×3600	20.7	40	≤25	0.047-0.4
Φ2700×4500	20.7	48	≤25	0.047-0.4
Φ3200×4000	18	65	≤25	0.047-0.4

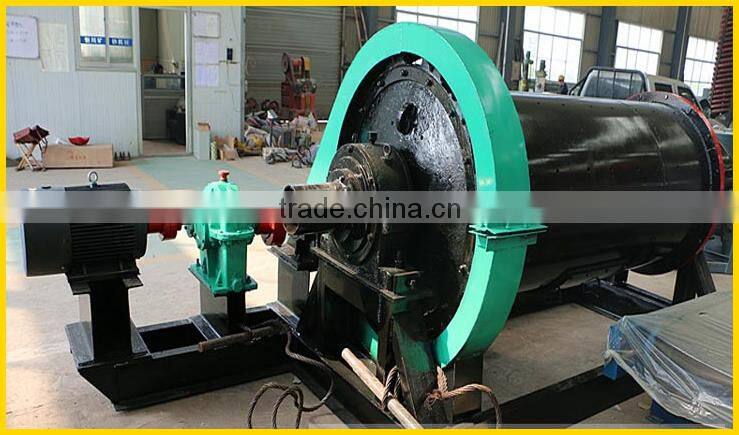

5.Detail of Good Clay Grinding Machine Mill Price/Ball Mill For Sale

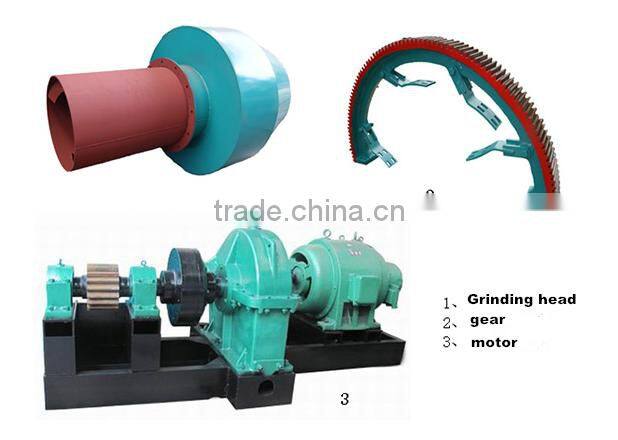

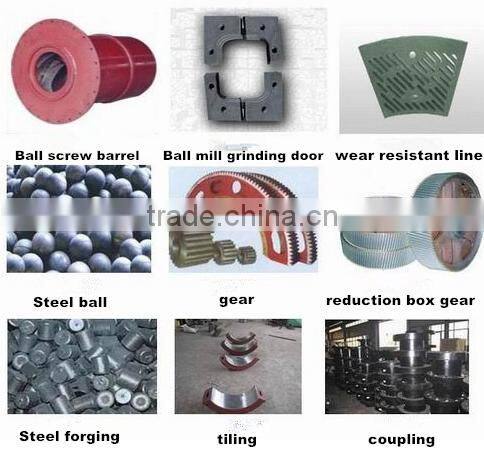

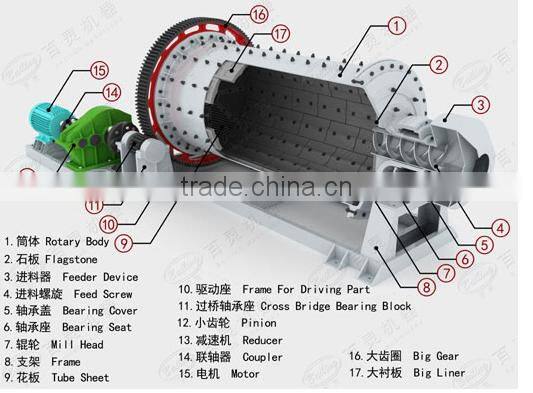

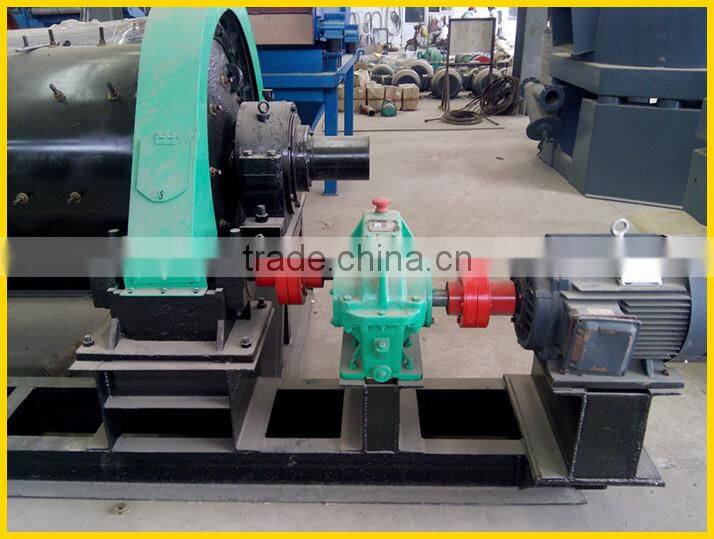

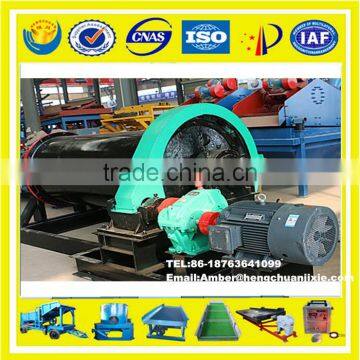

The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable.

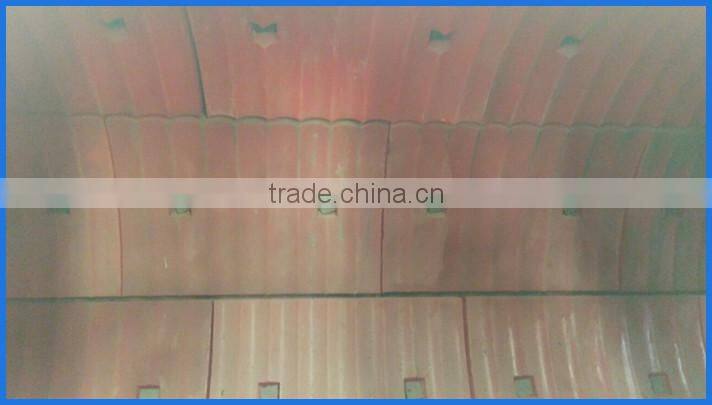

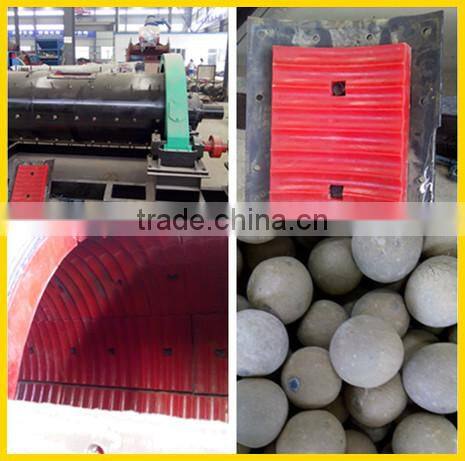

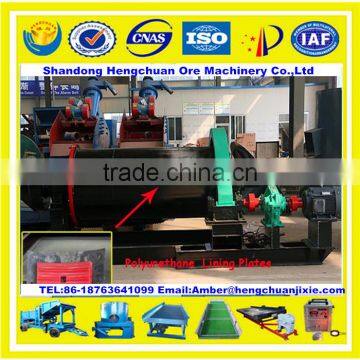

The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition,.moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

Packaging & Shipping

Packing:By container for Good Clay Grinding Machine Mill Price/Ball Mill For Sale

Shipping:Qingdao Port

Our Services

Pre-sale services: enthusiasm

l We will provide you with the prior plan, process flow design and production equipment in line with your

special needs.

Sale services: servant

l We will send technicians to you for guiding the equipment installation and commissioning and staff

training.

After-sale services: faithfulness

l We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

Service Commitment

l We provide one-year warranty to make sure your machine work well. We have spare parts of the very

machine in stock

all the time which means the replacements can be sent to you timely

Company Profile

Qingzhou Hengchuan Ore Machinery Co., Ltd.

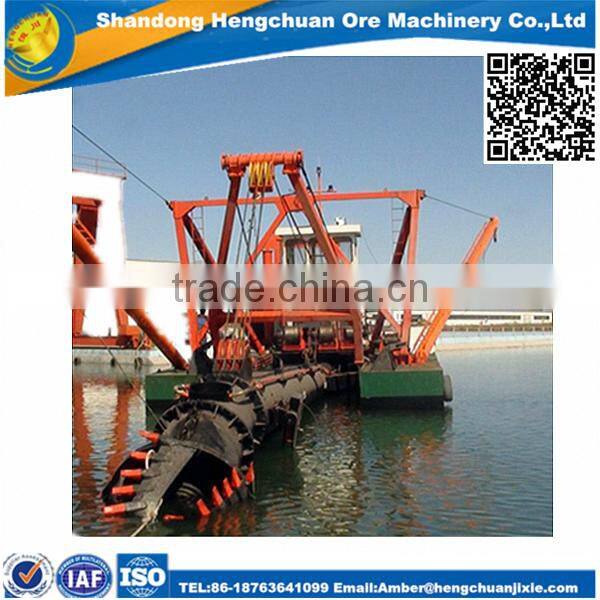

Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc. Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field. Development History: A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS. B).Cooperated with Shandong Gold Group and doubled the sales scale. C).Developed STL-120 gold centrifugal concentrator in 2008. D).Mature dredger products in 2009. E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling. F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015. Enterprise Spirit -eternal integrity Enterprise Purpose-to consistently exceed customers' expectations Core Values-innovation and leading the future Service Concept- to create value for customers Development Concept - Quality is life; innovation is the driving force Corporate Vision- the world leading supplier of magnetic separation equipment
