Suspended High Gradient Plate Magnetic Separator for Iron Separation and Purification
1.Introduction of High Gradient Plate Magnetic Separator for Iron Separation and Purification
High gradient plate permanent magnetic separator is a newly developed product which combines physical mechanics with fluid mechanics and magneto mechanics.All the magnetic materials adopt rare earth neodymium iron boron,and the highest magnetic filed intensity can reach 15000 Gauss.This product is applicable to iron separation and purification of non-metallic ore in wet process,especially for quartz,feldspar, nepheline ore and kaolinite.It can also be used for the wet separation of hematite, limonite,siderite ore,manganese ore,chromite,ilmenite,wolframite and other weak magnetic metallic ore.
2.Features of High Gradient Plate Magnetic Separator for Iron Separation and Purification
1. High magnetic filed gradient and intensity.
2. Large separation area.
3. The belt speed is adjustable.
4. Lower cost compared to vertical ring magnetic separator.
5. Stable performance and long service life.
3.Diagram of High Gradient Plate Magnetic Separator for Iron Separation and Purification
4.Parameter of High Gradient Plate Magnetic Separator for Iron Separation and Purification
ITEM |
SIZE OF MAGNETIC SEPRATION ZONE |
CAPACITY |
MAGNETIC INTENSITY |
FEEDING CONCENTRATION % |
SEPARATION SIZE |
POWER |
HCGP-1020 |
1000*2000 |
10-15t/h |
15000gs |
20-25 |
≤5mm |
1.5kw |
HCGP-2025 |
2000×2500 |
25-30t/h |
15000gs |
20-25 |
≤5mm |
3kw |
HCGP-2530 |
2500×3000 |
35-40t/h |
15000gs |
20-25 |
≤5mm |
4kw |

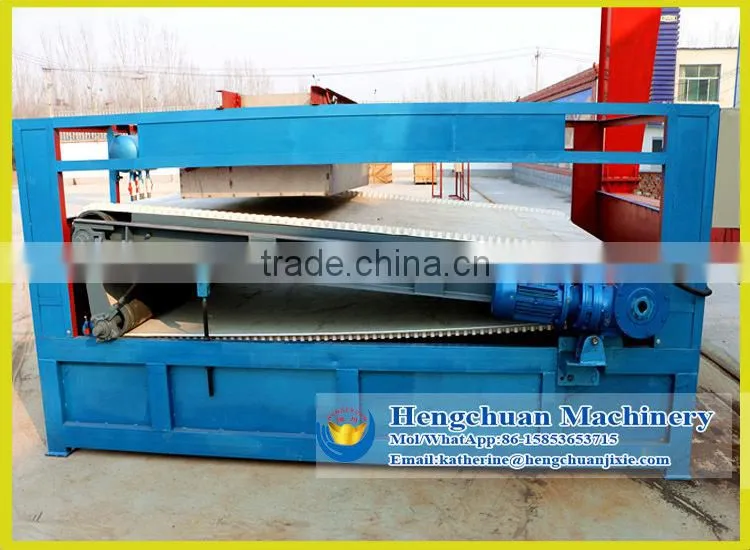

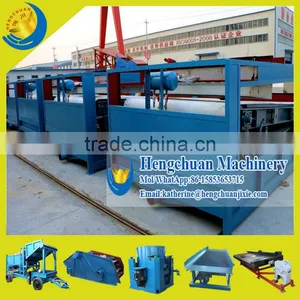

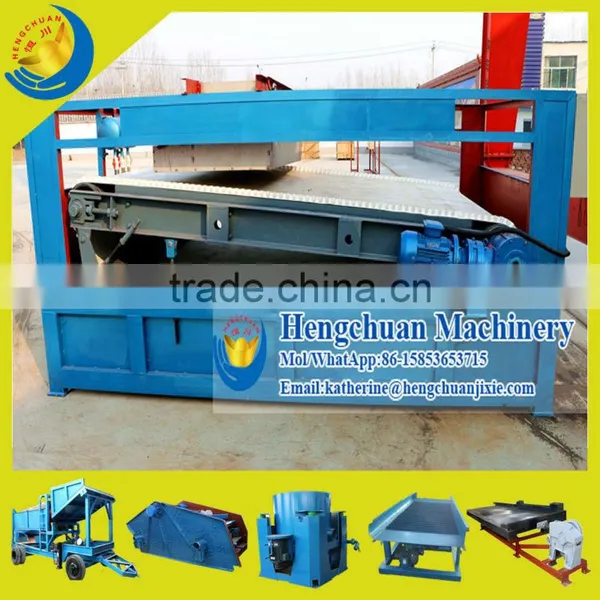

5.Products Show of High Gradient Plate Magnetic Separator for Iron Separation and Purification

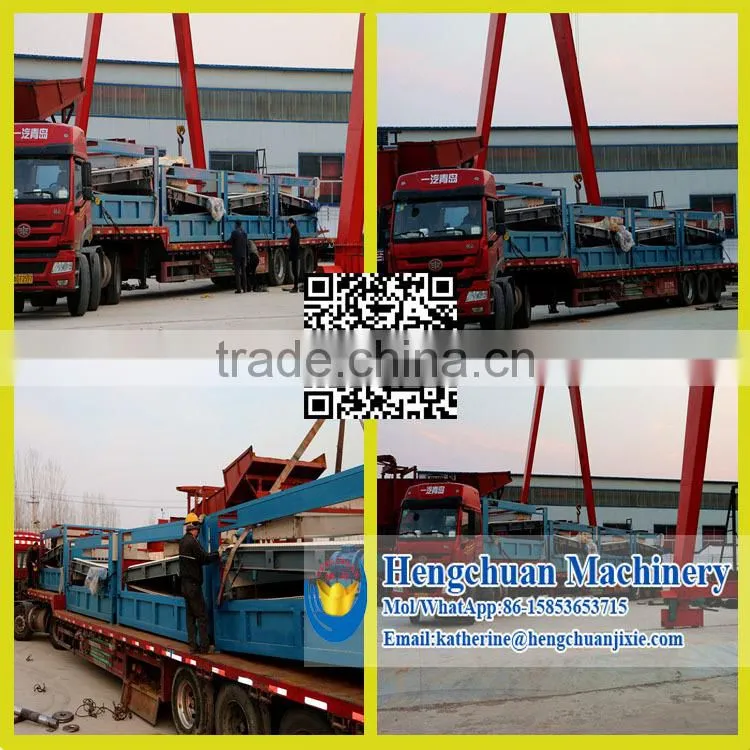

6.Shippingof High Gradient Plate Magnetic Separator for Iron Separation and Purification
