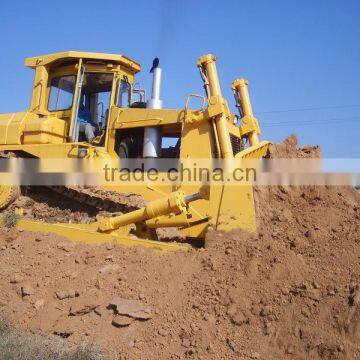

DOZER SD7 230HP

SPECIFICATIONS

Main specifications

Operating weight(not including ripper)

23800

Ripper weight

3900

Engine flywheel power

162kw

Ground pressure(without ripper)

71.9kPa

Ground clearance

404mm

Ground contact length

2890mm

Track center distance

1980mm

Overall dimensions(L×W×H) (with single shank ripper)

7604×3823×3402(with straight tilting blade)

Grade ability

Latitude30 ° Transverse 25°

Theory travel speed (km/h)

1st gear forward 0-3.9

1st gear backward 0-4.8

2nd gear forward 0-6.5

2nd gear backward 0-8.2

3rd gear forward 0-10.9

3rd gear backward 0-13.2

Dozing operation rate(moving distance 40m)

350m³/h

Diesel Engine

Model

NT855-C280 (Cummins) or C6121ZLG10 (Licensed CAT 3306 diesel engine)

Type

water cooled, single line, vertical, four strokes, turbocharged, 6-cylinders, diameter 140mm or 121mm.

Rated speed

2100 RPM

Flywheel power

169 kW

Start mode

24V electric starting
