Mobile Concrete Batching Plant

Name: Mobile Concrete Batching Plant
Brand: CANMAX
SKU: 141326378
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

CANMAX

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name CANMAX

Model Number YHZS90

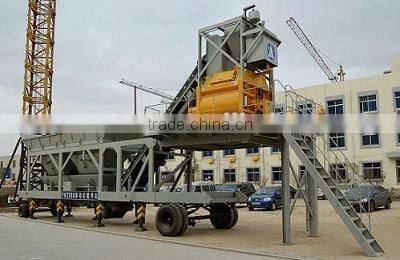

Mobile concrete batching plant
1.Productivity:90m³/h
2.Discharging Height:4m
3.Mixer:JS1500

No.	Part name	Item
1	Aggregate batching system (Three hoppers are accumulative weighing.)	PLD2400
		Weighing hopper
		Belt machine B650
		YBT11-1.6-500*650 Motorized pulley
		Storage hopper 15m³
		Sensor assembly 2000KG
		Framework
2	Skirt Belt Conveyor	NN200,B=800mm
		Motorized pulley YBN11-1.6-500*800
		Framework
3	Control room	2.5m*2.2m Control room
		Chair
		Air-condition
4	Additive system	Additive delivery pipe
		Pipeline accessories
		Water pump IHG20-125
5	Mixer	JS1500
		Mixer cover
		Gearing
		Gear reducer
		Motor P=2*30kw
		Mixing device
		Mixing trough
		Discharge system
6	Weighing system	Cement weighing scale
		Butterfly valve BV1F300S
		Sensor SSB-IIA-0.5
		Water weighing scale
		Sensor SSB-IIA-0.5
		Additive weighing scale
		Butterfly valve DN50
		Sensor STL-B-0.1
7	Water supply system	Water pump
7	Water supply system	Pipeline accessories
8	Pneumatic control system	Air control elements
		Air compressor ET-90
		Triplet
		Pipeline, coupling and fixed parts
9	Electric control system	Console
		High voltage cabinet
		Industrial control computer
		Concrete production control software
		Electrical elements
		17″Color LCD
		printer
		UPS
		Wire, cable
