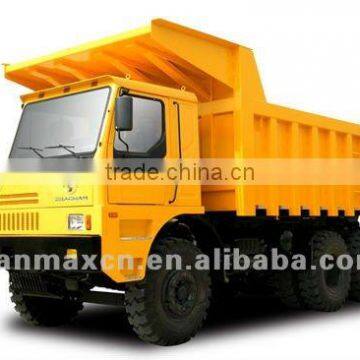

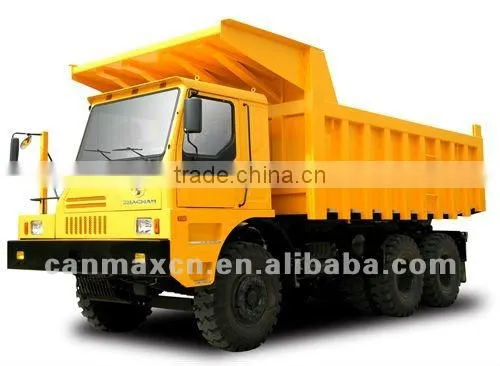

22T off Road Dump Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanxi, China
Brand Name:
Shacman
Model Number:
STL3503
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Truck Mounted Concrete PumpUS$ 509,000 - 543,000MOQ: 1 Unit -
37m Truck Mounted Concrete PumpUS$ 309,000 - 323,000MOQ: 1 Unit
-
Stabilized Soil Commodity Mixing PlantUS$ 145,000 - 153,510MOQ: 1 Set
-
Comparessing Garbage TruckUS$ 25,000 - 35,000MOQ: 1 Piece
-
Comparessing Garbage TruckUS$ 25,000 - 35,000MOQ: 1 Piece
Place of Origin
Shanxi, China
Brand Name
Shacman
Model Number
STL3503
After-sales Service Provided
Overseas service center available
Specifications
1.Tank capacity 380L, CUMMINS Engine, Euro 3 Emmission2.Excellent service & competitive price
| Model | STL3503 |
| Drive type | 6×4 |
| Weight | |
| Complete kerb mass (kg) | 22000 |
| GCW (kg) | 62000 |
| Dimensions | |
| Max.length | 8620 |
| Max.width | 3250 |
| Max.heigh | 3700 |
| Wheel base(mm) | 3750+1560 |
| Frame(mm) | |
| Performance | |
| Max.speed (km/h) | 41 |
| Min.turning circle(m) | ≤11 |
| Min.ground clearance(mm) | 350 |
| Approach / Departure angle (°) | 28/52 |
| Max.gradeability(%) | 44 |
| Engine | |
| Brand | CUMMINS |
| Model | ISME385 30 |
| Power(kw/HP) | 283/385 |
| Max.Torque (N.m )/rpm | 1835/1200 |
| Displacement (L) | 10.8 |
| Emmission Standards | Euro Ⅲ |
| Transmission | |
| Brand | FAST |
| Model | 9JS180 |
| Control type | manual |
| Gear Shift | 9-forward and 1 reverse speeds |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Auxiliary brake | Exhaust brake |
| Option | Jacobs, ABS |
| Steering | |
| Type | ZF8098 |
| Axles | |
| Brand | YQPX |
| Front axle | 12000kg |
| Rear axle | 25000kg(each other) Double reduction driving axle |
| Ratio | 11.5 |
| Tyres | |
| Type (Standard) | 14.00-24 |
| Fueltank | |
| Tank capacity (L) | 380 |
| Cab | |
| Type | Offset single-side mining driver’s cab |
| Loading | |
| ACT internal dimensions (m) | 5.8×3.0×1.6 |
