Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > 37m Truck Mounted Concrete Pump

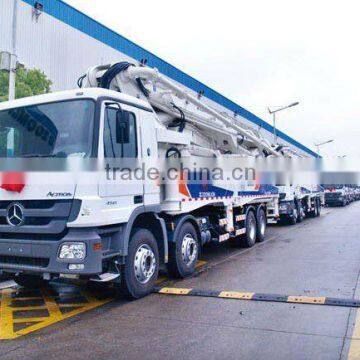

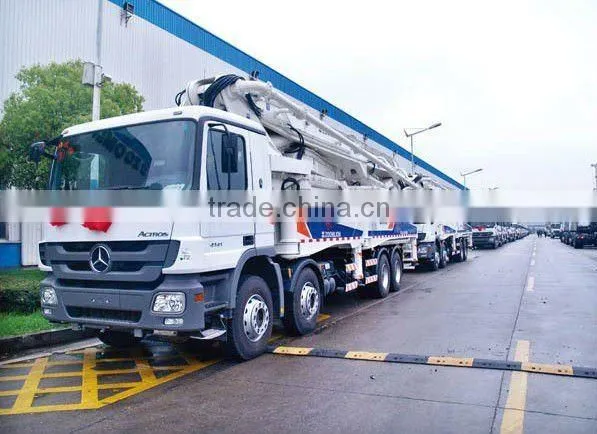

37m Truck Mounted Concrete Pump

Name: 37m Truck Mounted Concrete Pump
Brand: Zoomlion
SKU: 141326384
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

37m Truck Mounted Concrete Pump thumbnail-1

US$ 309,000 - 323,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Hunan, China

Brand Name:

Zoomlion

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Hunan, China

Brand Name Zoomlion

Model Number ZLJ5282THB125-37

Specifications

1.High efficiency pumping system
2.Preeminent intelligent control
3.Value-added accessories enhance profit-making ability

model		ZLJ5282THB125-37
Pumping system	Max. theo. outputm³/h	120
	Max. output pressure of the concreteMpa	6.5
	Rated working pressureMpa	32
	min^-1 Pumping frequency	22
	Hopper capacityL	550
	Feeding heightmm	1540
	Mode of the hydraulic system	closed
	Mode of the distribution valve	S valve
	Cylinder diameter×strokemm	130×2100
	Cylinder diameter×strokemm	230×2100
	Cooling of the hydraulic oil	Air-cooled
	Recommended collapsed slumpcm	12~23
	Max. dimension of the aggregatesmm	40
booms	Max. pumping heightm	36.6
	Max. pumping radiusm	32.6
	Max. pumping depthm	24.9
	Slewing angle	365°
	Number of the booms section	4
	Length of each boommm	8650/7860/7980/8080
	Angle of unfolding the booms	100°/180°/180°/270°
	Diameter of the delivery pipemm	125
	Length of the end hosemm	3000
Chassis and whole vehicle	Chassis model	FS1ERV
	Drive mode	6×4
	wheelbasemm	4640+1310
	Wheel gauge (front/rear)mm	2050/1855
	Modle of the tyre	295/80R22.5
	Modle of the engine	E13C TL
	Max. power of the enginekW/(r/min)	302/1800
	Max. torque of the engineN.m/(r/min)	1618/1100
	Displacement of the enginecc	12913
	Type of the fuel	diesel
	Capacity of the fuel tankL	400
	Standard of the exhaust emission	EUROⅢ
	Max. speed of the whole vehiclekm/h	85
	Mass of the whole vehiclekg	28350
	Overall dimension of the whole vehicle (length×width×height)mm	11720×2500×3820
others	Type of lubrication	Auto lubrication of energy-saving type
	Capacity of the hydraulic oil tankL	650
	Type of control	manual+ remote control
	Max. pressure of the water tankMpa	4
	Capacity of the water tankL	550
	Mode of cleaning the concrete pipes	Water washing/ dry cleaning

	Control cabinet
	1,Zoomlion ZL truck-mounted concrete pump is easy to move and requires small space, thus reduce the labor intensity of the constructors, enhance the construction efficiency, it is especially fit for equipment leasing companies. 2,Zoomlion series of truck-mounted concrete pump can satisfy different requirements of customers by its excellent performance, steady quality and perfect after-sales service system.
	glass plate, cuttig ring
	Zoomlion ZL truck-mounted concrete pump is easy to move and requires small space, thus reduce the labor intensity of the constructors, enhance the production efficiency, it is especially fit for equipment leasing companies. Zoomlion series of truck-mounted concrete pump can satisfy different requirements of customers by its excellent performance, steady quality and perfect after-sales service system.
	Multi-valve
	Zoomlion ZL truck-mounted concrete pump is easy to move and requires small space, thus reduce the labor intensity of the constructors, enhance the production efficiency, it is especially fit for equipment leasing companies. Zoomlion series of truck-mounted concrete pump can satisfy different requirements of customers by its excellent performance, steady quality and perfect after-sales service system.
