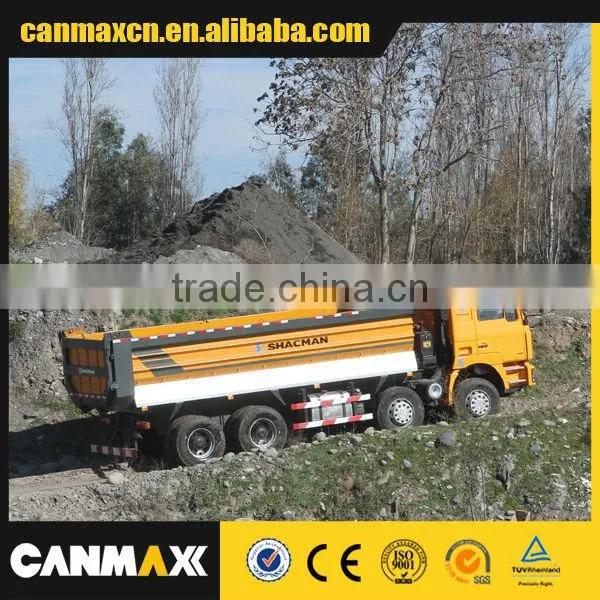

SHACMAN Russian certifcate high quality Dumper truck on sale
1. MAN technology
2. Russian OTTC certificate
3. Weichai Euro II engine
4. FULLER transmission
Model |
SX3256DR384 |
Drive type |
6×4 |
Weight |
|
Complete kerb mass (kg) |
15000 |
GVW (kg) |
25000 |
Dimensions |
|
Max.length(mm) |
8329 |
Max.width(mm) |
2490 |
Max.heigh(mm) |
3450 |
Front / Rear overhang (mm) |
1525/1629 |
Wheel base(mm) |
3775+1400 |
Track width(mm) |
2030/1860 |
Performance |
|
Max.speed (km/h) |
90 |
Min.turning circle(m) |
24 |
Min.ground clearance(mm) |
314 |
Approach / Departure angle (°) |
28/30 |
Max.gradeability(%) |
30 |
Engine |
|
Brand |
WEI CHAI |
Model |
WP10.336E40 |
Power(kw/HP) |
336 |
Max.Torque (N.m )/rpm |
1500/1200-1500 |
Displacement (L) |
9.726 |
Emmission Standards |
Euro IV |
Transmission |
|
Brand |
FAST |
Model |
12JS160TA |
Control type |
manual |
Gear Shift |
12-forward and 1 reverse speeds |
Clutch |
|
Type |
Spring plate,diaphragm spring |
Diameter (mm) |
φ430 |
Action |
mechanical type,hydraulic and pneumatic operation |
Brakes |
|
Type |
Drum |
Service brake |
With dual-circuit |
Park brake |
Power spring brake acting |
Auxiliary brake |
WEVB |
Option |
ABS |
Steering |
|
Type |
Integral circulating ball |
Option |
ZF8098 |
Chassis |
|
Type |
Ladder structure with |
Dimensions (mm) |
300×80×(8+7) |
Suspension |
|
Front Suspension |
Longitudinal leaf spring |
Rear Suspension |
Inverted leaf spring stabilizator suspension |
Axles |
|
Brand |
HANDE |
Front axle |
7500kg MAN |
Rear axle |
16000kg(each other) STR |
Ratio |
5.73(Option 4.8) |
Tyres |
|
Type (Standard) |
12.00R20 |
Option |
11.00R20/12R22.5 |
Fueltank |
|
Tank capacity (L) |
380 |
Material |
Metal |
Electrics |
|
Type |
24V |
Starter |
5.58kw(24V) |
Generator |
1.54kw(28V 55A) |
Battery |
2×135Ah |
Cab |
|
Type |
MAN F2000, Mid-lengthened flat roof |
Equipments |
2 rear window, mechanical clerestory, |
Option |
electric windows, electricity heated rear-view mirror,CD,Tachograph; |
Other |
|
Platform dimentions(mm) |
5600×2300×1500 |
Platform specification (mm) |
Floor 8, Side 4 |
