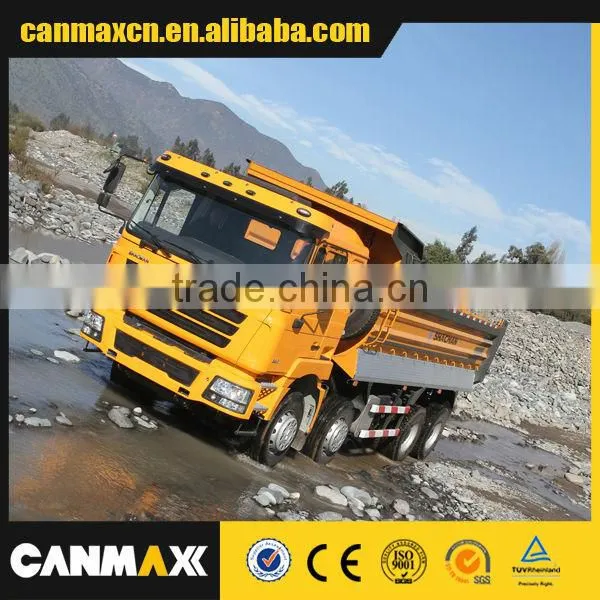

Russian certifcate Dumper truck SX3256DR384 trucks SHACMAN

Name: Russian certifcate Dumper truck SX3256DR384 trucks SHACMAN
Brand: SHACMAN
Availability: InStock

FOB Price

US$ 45,000 - 55,000 / Unit

1 Unit(Min. Order)

Port Andy port of China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	6x4	Capacity (Load)	31 - 40t
Horsepower	251 - 350hp	Condition	New
Transmission Type	Manual	Emission Standard	Euro 4
Fuel Type	Diesel
Gross Vehicle Weight	15000	Place of Origin	Shaanxi, China
Brand Name	SHACMAN	Model Number	SX3256DR384
Dimensions (L x W x H) (mm)	560023001500mm

Product Description

truck

1. MAN technology
2. Russian OTTC certificate

3. Weichai Euro II engine
4. FULLER transmission

Model	SX3256DR384
Drive type	6×4
Weight
Complete kerb mass (kg)	15000
GVW (kg)	25000
Dimensions
Max.length(mm)	8329
Max.width(mm)	2490
Max.heigh(mm)	3450
Front / Rear overhang (mm)	1525/1629
Wheel base(mm)	3775+1400
Track width(mm)	2030/1860
Performance
Max.speed (km/h)	90
Min.turning circle(m)	24
Min.ground clearance(mm)	314
Approach / Departure angle (°)	28/30
Max.gradeability(%)	30
Engine
Brand	WEI CHAI
Model	WP10.336E40
Power(kw/HP)	336
Max.Torque (N.m )/rpm	1500/1200-1500
Displacement (L)	9.726
Emmission Standards	Euro IV
Transmission
Brand	FAST
Model	12JS160TA
Control type	manual
Gear Shift	12-forward and 1 reverse speeds
Clutch
Type	Spring plate,diaphragm spring
Diameter (mm)	φ430
Action	mechanical type,hydraulic and pneumatic operation
Brakes
Type	Drum
Service brake	With dual-circuit compressed air brake
Park brake	Power spring brake acting on rear wheel
Auxiliary brake	WEVB
Option	ABS
Steering
Type	Integral circulating ball power sreering
Option	ZF8098
Chassis
Type	Ladder structure with parallel straight
Dimensions (mm)	300×80×(8+7)
Suspension
Front Suspension	Longitudinal leaf spring
Rear Suspension	Inverted leaf spring stabilizator suspension
Axles
Brand	HANDE
Front axle	7500kg MAN
Rear axle	16000kg(each other) STR Double reduction driving axle with inter-wheel differential and differential lock.
Ratio	5.73(Option 4.8)
Tyres
Type (Standard)	12.00R20
Option	11.00R20/12R22.5
Fueltank
Tank capacity (L)	380
Material	Metal
Electrics
Type	24V
Starter	5.58kw(24V)
Generator	1.54kw(28V 55A)
Battery	2×135Ah
Cab
Type	MAN F2000, Mid-lengthened flat roof
Equipments	2 rear window, mechanical clerestory, hydraulic suspension cab,hydraulic chair with seatbelts,one sleeping bed,hydraulic reversal cab,with USB,can play radio with MP3 format
Option	electric windows, electricity heated rear-view mirror,CD,Tachograph; 2 point air suspension,A/C,air suspension driver seat with handle and eatbelts,electricity reversal cab
Other
Platform dimentions(mm)	5600×2300×1500
Platform specification (mm)	Floor 8, Side 4
