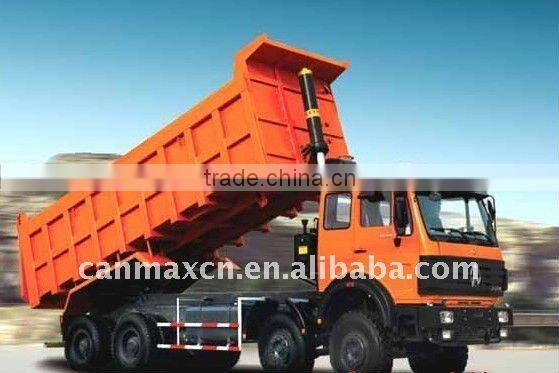

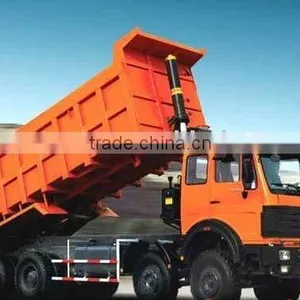

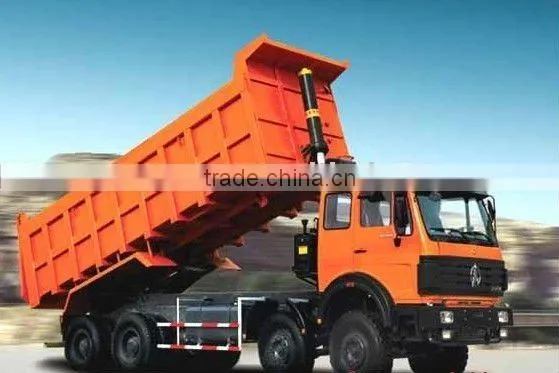

3132K/8x4/1500+4150+1450/Dump Truck

Wheel base  (mm)

1,500 + 4,150 + 1,450mm

Curb weight kg

15040

Upper body inner dimension

6200×2300×1500 sand body

Engine

Model

WD615.44 (Based on Styre technology, made in China) water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Emission

EURO II

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

BEIBEN 5S-111GP(with the license from ZF Germany)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,whole circulation in ball type, hydraulic boosting

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tire

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab

Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly;
