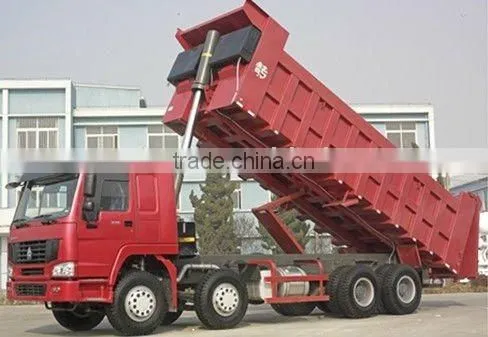

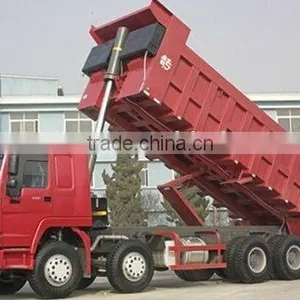

2628K/6x4/3450+1450/ Dump Truck

Name: 2628K/6x4/3450+1450/ Dump Truck
Brand: CANMAX
SKU: 141326180
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

6x4

Horsepower:

251 - 350hp

Condition:

New

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Horsepower 251 - 350hp

Condition New

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Place of Origin Shanghai, China

Brand Name CANMAX

Model Number 2628K

Specifications

2628K/6x4/3450+1450/ Dump Truck
5400*2300*1200 mm
Power 206kw

2628K/6x4/3450+1450/ Dump Truck

This truck is manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.

Wheel base (mm)				3450+1450
Curb weight kg				12120
Upper body Dimension(Lx W x H)				5400×2300×1200 sand body
Engine	Model			WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged
	Power, max kw/rpm			206/2200
	Max torque(Nm/rpm)			1160/1100-1600
	Emission standard			EUROII
Fuel tanker capacity L				300
Clutch		Model		GFX420, Single dry frictional disc,Hydraulic boosting
Gearbox		Model		ZF 5S-112GP (With 9 forward gears,1 reverse gear; With license from ZF Germany)
Brake system		Service brake		Brake gap can be adjusted automatically, double circulation air brake system
		Assistant brake		Engine exhaust brake
		Park brake		Potential springs pressing on middle and rear wheels
Steering system		Model		ZF8098
Frame of vehicle		Fish belly shape, variable width, variable section side beam structure
Front axle (Mercedes Benz Technology)		Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology)		Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre		Radial 12.00R20
Electrical system		Battery	2X12V/135Ah
		Generator	28V-35A
		Starter	5.4Kw/24V
Cab		Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.Can be tipped forwardly; Inner A/C
