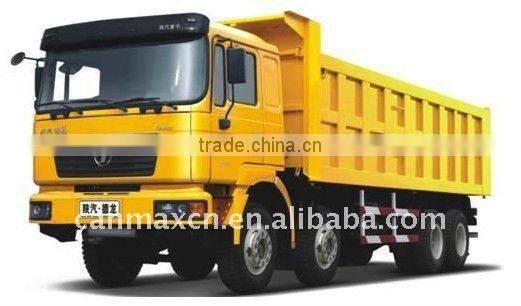

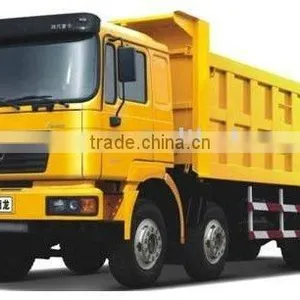

SHACMAN D'Long 31Ton 8X4 Dump Truck F2000

Specifications

SHACMAN D'Long 31Ton 8X4 Dump Truck F2000
MAN F2000 CABIN
ZF STEERING SYSTERM
FAST FULLER/ZF GEAR BOX
MAN FRONT AXLE

SHACMAN D'Long 31Ton 8X4 Dump Truck F2000



MAN F2000 CABIN
ZF STEERING SYSTERM
FAST FULLER/ZF GEAR BOX
MAN FRONT AXLE
13T HUB REDUCTION AXLE



Model:                                         SX3254JS384

Drive type:                                    6x4

Max.laden mass(kg):                    25000

Kerb mass(kg):                            11200

Total mass(kg):                            32000

Max speed(km/h):                         77

Min. turning diameter(m):               24

Min. ground clearance(mm):           314

Max.grade ability(%):                     30

Overall dimension(mm):                  8275x2490x3450

Cargo body dimension(mm):           5200x2300x1500

Wheel base(mm):                          3800+1500

Engine model:                               WD615.46

Horse power(ps):                           360

Torque N.m/(r/min):                       1460/1400-160

Overhang(front/rear)(mm):              1525/1600

Track width(front/rear)(mm):            2036/1860

Min. fuel cunsumption (g/kw.h):      198

Compression ratio:                        17:1

Displacement(L):                           9.726

Steering:                                       ZF

Front axle:                                    MAN 7.5 T

Rear axle:                                     STEYR 13 T

Clutch:                                         Φ430 diaphragm-spring

Gear box:                                     F9

Cab:                                             MAN F2000lengthen flat head

Tyre:                                            11.00-20 (Option: 12.00-20, 12.00R20, 12.00R22.5)

Fuel tank capacity(L):                    200L (Option: 380L, 400L Ardal fuel tank)

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Option:

Cab:                                            N-lengthen high head, D-middling length flat head

Others:                                        ABS,AC,Electric heating fuel filter,

                                                   Electric window lifter, Flame preheating,

                                                   Electric heating rearview mirror..
