3T Road Roller

Specifications

1.front and rear wheels have scraping and water spray unit
chanical rear wheel driving and hydraulic front wheel vibration.

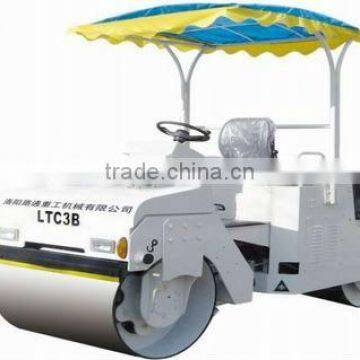

LTC3B LTC2.5B double steel-wheeled vibratory roller is applicable for maintenance of municipal roads and highways, as well as the compaction of the narrow road surfaces such as groove foundation with width above 1.1m, building construction, pipeline backfill and stadium.
Main Features
      Mechanical movement, hydraulic vibration, hydraulic rotation, with reliable performance and optimum function/price ratio.
      Both front and rear wheels have scraping and water spray unit.
      Adopt N385Q diesel engine, very convenient for use and maintenance.
      Compact integral structure, small volume, capable of used for compaction on narrow site.



Main Technical Parameters
		LTC3B	LTC2.5B
Operating mass	Kg	3000	2500
Static linear load	N/cm	128/172	115/163
Vibration frequency	Hz	50	50
Centrifugal force	kN	30	28
Travel speed	km/h	5.6	5.6
Grade ability	%	20	25
Turning radius	mm	4600	4000
Overall dimension	mm	2900X1314X2600	2900x1200x2550
Vibration round width	mm	1000	900
Wheelbase	mm	2100	2100
Diesel power	kW	21	21
Diesel model		ZN385Q	ZN385Q
