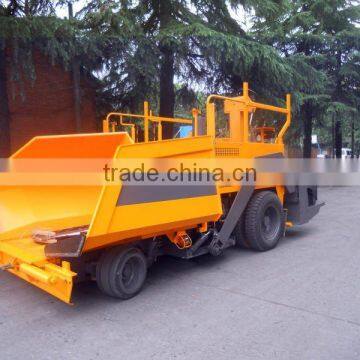

Help CenterConcrete Paver
Related Products
Specifications
1.Scraper and auger independent2.Driver has wide eyeshot, control panel can be moved to the L/R
3.Stable quality and service
Model: 2LTLZ45E
Type: tyre
Performance parameter
Basic paving width 2500mm
Maximum width of paving 4500mm
Maximum thickness of paving 250mm
Minimum thickness of paving 10mm
Traveling speed 2.29~16.74km/h
Paving speed 3.01~8.97m/min
Maximum theoretic productivity 220t/h
Hopper capacity 10t
Maximum climbing capacity load 10% unload 15%
Mass 11000kg
Overall size
Length 5850mm (transportation 5550mm)
Width 3000mm (transportation 2494mm)
Height 2450mm
Engine
Model 4JR3AG7
Type Air cooling with 4 cylinders
Power 55Kw/2000r/min
Diesel oil tank capacity 143L
Send Inquiry to This Supplier
