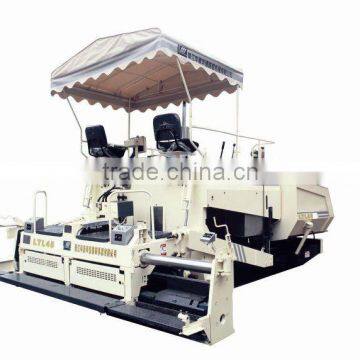

concrete asphalt paver

Specifications

1.The traveling clutch is operated by hydraulic
2.The roller can swing to push the truck rear wheels.



Model: LTL45H Type: Crawler







Parameter



Paving Width (mm)                                            2200-4500



Paving Thickness (mm)                                    10-250



Paving Speed (m/min)                                      2.03~6.07



Traveling Speed (km/h)                                    1.55~4.62



Engine Power (kW)                                                  46



Hopper Capacity (t )                                                 10



Max. Theoretical output (t/h)                                    220



Weight (kg)                                                            11000



Overall Size                                                       5740*4534*2995 (operation)



                                                                           5740*2194*2293 (transportation)



Engine                                                               four cylinders, air cooled engine 46Kw/2000r/min
