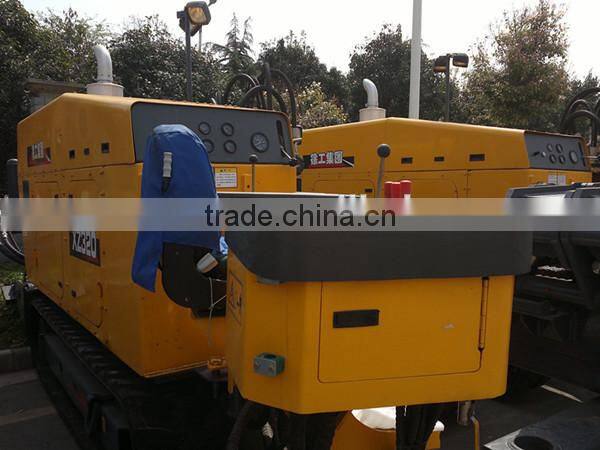

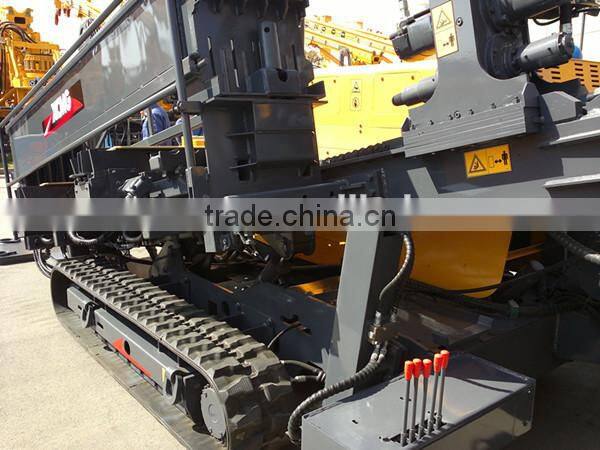

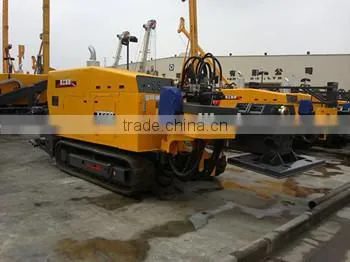

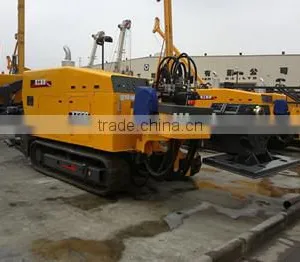

Trenchless Ground Drilling Machine

Name: Trenchless Ground Drilling Machine
Brand: XCMG
SKU: 141325636
Availability: InStock

US$ 87,350 - 89,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XZ320

Weight 12tons

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Trenchless Ground Drilling Machine
1Imported hydraulic parts
2Automatic loading and unloading system
3Different accessories

Trenchless Ground Drilling Machine

1. Technical features

Strong power:
The 160kW engine ensures that the drilling rig can pave the pipes under various complex ground conditions.

Dual speed power unit: The low drilling and pulling speed ensures the successful construction. The power unit can accelerate the sliding speed after the drill stem is removed,so that the auxiliary work time is reduced and the work efficiency is enhanced.

Rubber crawler: The influence of this kind of crawler on the road, lawn and sight spot is smallest.

Floating vice: The proprietary floating vice of the Company shall be adopted, which can prolong the service life of drill stem effectively.

Automatic loading and unloading of drill stem: The automatic drill stem loading and unloading device can boost the work efficiency, and reduce the work intensity of operators and the number of construction workers.

Automatic anchoring: The drilling and pulling of anchor rod is driven hydraulically and controlled by the cylinder and the low-speed and high-torque motor. It is easy and convenient to operate.

Easy operation: The rotation, pushing and pulling of power unit are controlled separately. The whole machine is easy to operate so that the operators can learn how to operate the drilling rig after a short-period training .
2. Main technical parameters

Item		Unit	Qty
Engine	Producer		Dongfeng Cummins
	Model		6CT8.3-C215
	Rated power	kW/ rpm	160/2200
Pusher and puller	Type		Cylinder and chain type
	Max. pulling/feeding force	kN	320/200
	Running speed of power unit	m/min	0~20
Rotation	Type		Four-motor gear transmission
	Max. torque of power unit	N.m	12000
	Rotation speed of power unit	r/min	0~140
Drill stem	Type
	Diameter	mm	φ73
	Length (single piece)	m	3
Drill stand	Type		Box-type drill stand
Drill stand	Adjusting angle	°	10~22
Travel drive	Type		Self-propelled rubber crawler
Travel drive	Travel speed	km/h	2.0
Slurry pump	Type		Hydraulic drive
Slurry pump	Flow rate	L/min	320
Overall dimension (L×W×H)		mm	7100x2300x2450
Weight (including one box-type drill stem)		t	12.1
