Borehoe Drilling Rig
US$ 308,000 - 325,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2011
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Borehoe Drilling Rig

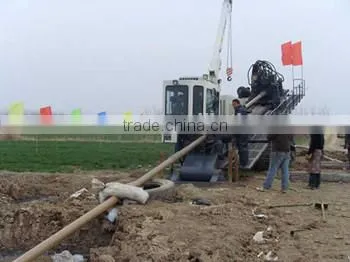

Mobile Drilling Equipment XZ1000 Cummins (392kW) turbocharger water cooling engine, self-propelled steel tracks chassis, high strength assembled drill frame which can adjust to various length drill rods, slidable drill frame (controlled by cylinder), closed circuit and load sensing control hydraulic system, independent cooling system, rack and pinion push-pull, two shift gears speed transfer, all-weather double cab, wire controlling walk, and floating spindle and equipped with truck mounted crane.
Model |
XZ1000 |
|
|---|---|---|
Engine |
CUMMINS | |
Rated power |
kW | 392 |
Max.pullback/thrusting |
kN | 1000/1000 |
Spindle torque (max) |
N.m | 55000 |
Spindle speed |
r/min | 0-80 |
Backreaming diameter |
mm | Ø1200 |
Tubing length(single) |
m | 9.6 |
Tubing diameter |
mm | Ø127 |
Entry angle |
° | 10-18 |
Mud flow rate (max) |
L/min | 1200 |
Mud pressure (max) |
bar | 200 |
Overall weight |
kg | 32000 |
Dimension(LxWxH) |
mm | 14500×3150×3390 |
