Specifications

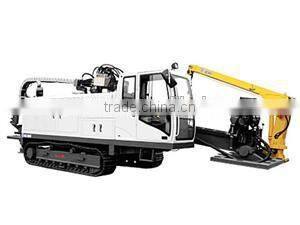

Horizontal Drilling Rig1. Advanced hydraulic system.
2.Movable holder and truck mounted crane.
Horizontal Drilling Rig
• Hydraulic system: Adopt many advanced control techniques, such as closed energy-efficient circuit, hydraulic pilot control, electrohydraulic proportion control, etc.
• Rotation: It is driven by both the motor and the reducer with two gears to control the speed.
• Feed/retract: Pull or push with the gear rack. There are two gears to control the speed, which has high working efficiency.
• Cab: The single cab with air conditioning makes the operation easy and comfortable.
• Engine: The turbocharging engine has large power reserve, guaranteeing the drilling power demand.
•Drill stand: The high-intensity drill stand is fit for the 4.5m drill rod. The drill stand can slide, which facilitates the angle adjustment.
• Drill rod holder: The movable holder and truck mounted crane make the drill installment and dismantlement efficient and labor-saving.
• Track: The self-propelled steel tracks move and turn conveniently. It is driven by wire, and the speed can be shifted between high speed and low speed.
• Monitoring and protection: The engine, hydraulic pressure, filtration monitoring and alarming can effectively protect the machine safety.
| Model | XZ500 | ||
|---|---|---|---|
Item |
Unit |
Parameter |
|
Engine |
Manufacturer |
|
Cummins |
Model |
|
6CTA8.3-C260 |
|
Rated power |
kW/ rpm |
194/2200 |
|
Feed/retract |
Type |
|
Two-motor driving gear rack |
Max. retract/feed force |
kN |
500/500 |
|
Drill unit running speed |
m/min |
0~20 |
|
Rotation |
Type |
|
Motor+reducer driving gear transmission |
Max. drill unit torque |
N.m |
18000 |
|
Drill unit rotate speed |
r/min |
0~108 |
|
Drill rod |
Diameter |
mm |
φ89 |
Length(single) |
m |
4.5 |
|
Drill stand |
Type |
|
Sliding box drill stand |
Drilling angle |
° |
10~20 |
|
Truck mounted crane |
Type |
|
Full rotary straight boom retractable crane |
Max. hoisting weight |
t |
2 |
|
Travel drive |
Type |
|
Steel track self-propelled |
Travel speed |
km/h |
1.8 |
|
Flow rate |
L/min |
600 |
|
Dimensions |
mm |
9280×2755×3000 |
|
Weight |
t |
18 |
|
