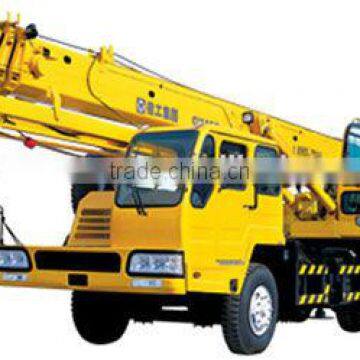

QY16C Crane

Name: QY16C Crane
Brand: XCMG
SKU: 141324918
Availability: InStock

US$ 60,000 - 69,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Lifting Moment:

790 KN.m

Place of Origin:

Jiangsu, China

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Lifting Moment 790 KN.m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY16C

Specifications

16T XCMG Hydraulic Truck Crane
1. Max. Rated lifting weight 16T.
2. Max. Lifting Torque 790KN.m

16T XCMG Hydraulic Truck Crane

Classificatory	Item		Unit	Parameter
Engine	Model			D6114
Outline dimension	Overall length		mm	11990
	Overall width		mm	2500
	Overall height		mm	3350
	Wheel base	Axle 1, Axle 2	mm	4025
	Wheel base	Axle 2, Axle 3	mm	1350
Mass	Total mass in travel state		kg	22900
	Axle load	Axle 1	kg	5240
	Axle load	Axle 2	kg	17660
Travel performance	Travel speed	Max. travel speed	km/h	70
	Travel speed	Min. stable travel speed	km/h	4
	Turning diameter	Min. turning diameter	m	20
	Turning diameter	Min. turning diameter at boom tip	m	23
	Min. ground clearance		mm	270
	Approach angle		(°)	21
	Departure angle		(°)	10
	Braking distance (at 30km/h with full load)		m	9.5
	Max. grade-ability		%	24
	Fuel consumption for 100km		L	35
Power	Engine rated output		kW/(r/min)	158/2200
	Engine rated torque		N.m/ (r/min)	790/1400
	Engine rated speed		r/min	2200

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	16
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	≤3.12
	Max. load moment	Base boom			kN.m	711
		Fully extended boom			kN.m	449
		Fully extended boom + Jib			kN.m	186
	Outrigger span	Longitudinal			m	4.6
		Lateral			m	5.4
	Lifting height	Base boom			m	≥9.9
		Fully extended boom			m	≥23.6
		Fully extended boom + Jib			m	≥30.8
Working speed	Boom raising time				s	≤60
	Boom full extension time				s	≤75
	Max. swing speed				r/min	≥2.5
	Hoist speed (single line)		Main winch	Full load	m/min	≥54
				No load	m/min	≥100
			Aux. winch	Full load	m/min	≥54
				No load	m/min	≥100
Noise limit	Crane exterior noise				dB (A)	≤118
	At seated position				dB (A)	≤90
