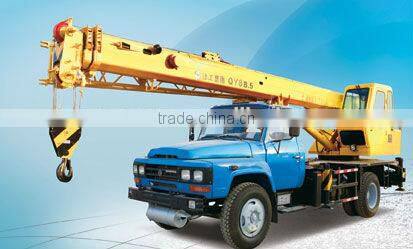

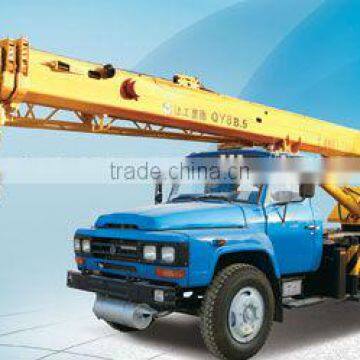

8 Ton Crane

Name: 8 Ton Crane
Brand: XCMG
SKU: 141324922
Availability: InStock

US$ 26,000 - 36,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Lifting Moment:

500 KN.m

Place of Origin:

Jiangsu, China

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Lifting Moment 500 KN.m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY8D-II

Specifications

8T XCMG Hydraulic Truck Crane
1. Max. Rated lifting weight 8T.
2. Max. Lifting Torque 500KN.m

8T XCMG Hydraulic Truck Crane

Dimension	Unit	QY8B.5
Overall length	mm	9450
Overall width	mm	2400
Overall height	mm	3180
Weight
Total weight in travel	kg	10490
Front axle load	kg	2800
Rear axle load	kg	7690
Power
Engine model		YC4E140-30
Engine rated power	kW/(r/min)	105/2500
Engine rated torque	N.m/(r/min)	500/1600
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	16000
Min. ground clearance	mm	260
Approach angle	°	29
Departure angle	°	11
Max. grade ability	%	28
Fuel consumption for 100km	L	25.5
Main performance
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.254
Max. lifting torque	KN.m	245
Base boom	m	8.2
Fully extended boom	m	19
Fully extended boom+jib	m	25.3
Longitudinal outrigger span	m	3.825
Lateral outrigger span	m	4.18
Working speed
Boom luffing time	s	28
Boom full extension time	s	31
Max. swing speed	r/min	2.8
Main winch single-pump/dual-pump converging (single rope)	m/min	53/110
