35 Ton Crane
Specifications
35T XCMG Hydraulic Truck Crane1. Max. Rated lifting weight 35T.
2. Max. Lifting Torque 1250KN.m

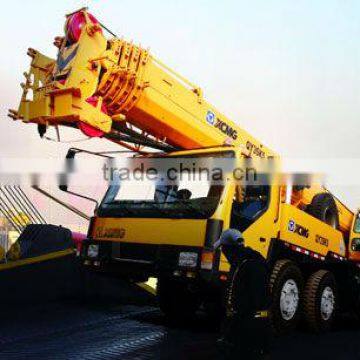

30T XCMG Hydraulic Truck Crane
Dimension |
Unit |
QY30K5-I |
|
Overall length |
mm |
12570 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
3390 |
|
Weight |
|||
Total weight in travel |
kg |
32400 |
|
Front axle load |
kg |
7000 |
|
Rear axle load |
kg |
25400 |
|
Power |
|||
Engine model |
SC8DK280Q3 |
WD615.329 |
|
Engine rated power |
kW/(r/min) |
206/2200 |
213/2200 |
Engine rated torque |
N.m/(r/min) |
1112/1400 |
1160/1400 |
Travel |
|||
Max. travel speed |
km/h |
80 |
|
Min. turning diameter |
m |
22 |
|
Min. ground clearance |
mm |
291 |
|
Approach angle |
° |
19 |
|
Departure angle |
° |
13 |
|
Max. grade ability |
% |
40 |
|
Fuel consumption for 100km |
L |
40 |
|
Main performance |
|||
Max. rated total lifting capacity |
t |
30 |
|
Min. rated working radius |
mm |
3000 |
|
Turning radius at turntable tail |
m |
3.065 |
|
Max. lifting torque |
kN.m |
1025 |
|
Base boom |
m |
10.6 |
|
Fully extended boom |
m |
40.4 |
|
Fully extended boom+ jib |
m |
48.7 |
|
Longitudinal outrigger span |
m |
5.85 |
|
Lateral outrigger span |
m |
6 |
|
Working speed |
|||
Boom luffing time |
s |
68 |
|
Boom full extension time |
s |
150 |
|
Max. swing speed |
r/min |
2.5 |
|
Max. speed of main winch (single rope) (no load) |
m/min |
120 |
|
Max. speed of aux. winch (single rope) (no load) |
m/min |
120 |
|

| |
