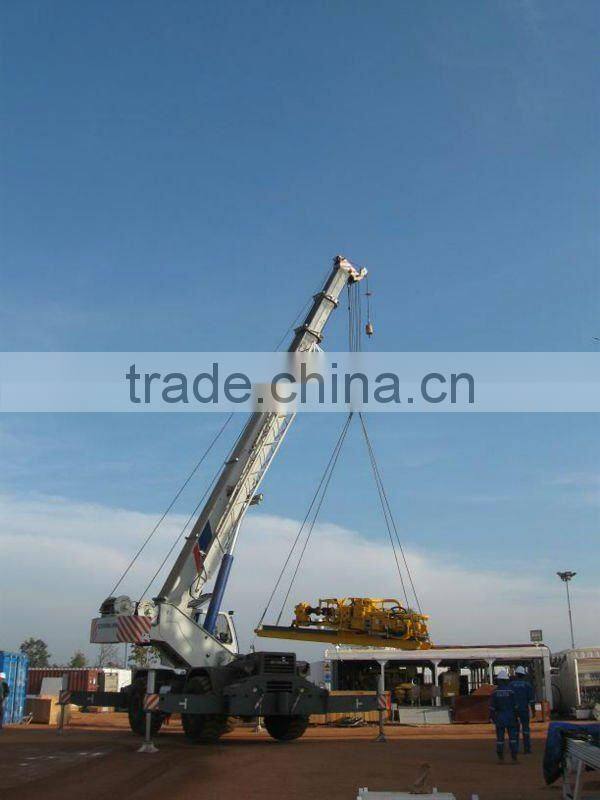

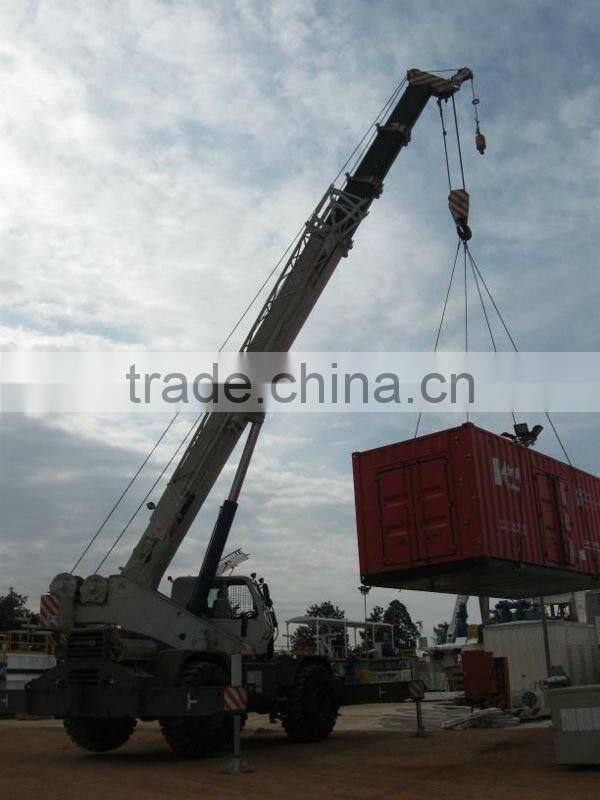

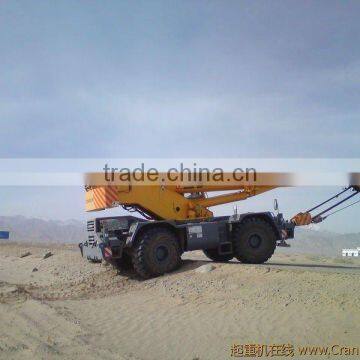

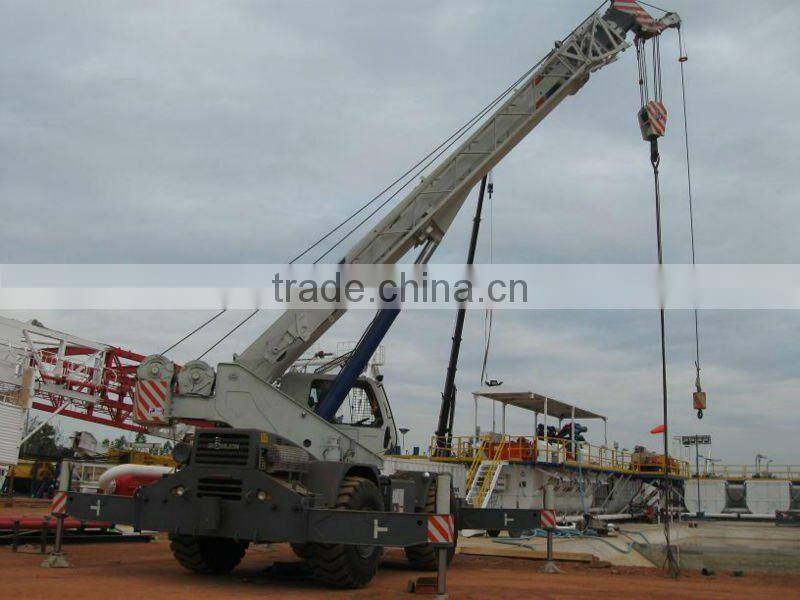

Help Center100ton Rough-terrain Crane
Related Products
Specifications
1. Orignial Cummins engine QSB6.72. Kessler axle, DANA transimission
3. Sweden WELDOX960 steel
4. Four wheel drive, steering
1.The machine adpot four wheel drive and four wheel steering, so the machine have three kind moving control, two wheel steering, four wheel steering and crabbing.
2.Short wheelbase design make the machine very convinient in narrow space, minimum turning diameter.
3.The machine passed the TUV inspection, can meet the America standard.
Item |
No. |
Specification |
Unit |
Value |
Working performance specification |
1 |
Max. rated total lifting capacity ×working radius |
kg.m |
100000×3.0 |
2 |
Max. load moment of basic boom |
kN.m |
3339 |
|
3 |
Max. load moment with max. main boom length |
kN.m |
1388 |
|
4 |
Max. lifting height of main boom |
m |
45.6 |
|
5 |
Max. lifting height of fly jib |
m |
63 |
|
Dimension specification |
6 |
Overall dimensions(L×W×H) |
mm |
14247×3620×3960 |
7 |
Outrigger span(portrait×transy) |
mm |
8000×7900 |
|
8 |
Main boom length |
mm |
11500~43000 |
|
9 |
Fly jib length |
mm |
10800~18500 |
|
10 |
Main boom angle° |
° |
-3~78 |
|
11 |
Swing range |
|
360°Continuing |
|
Working speed |
12 |
Max. speed of single rope on main winch m/min |
m/min |
126 |
13 |
Extend time of Boom |
s |
170 |
|
14 |
Retraction time of Boom |
s |
158 |
|
15 |
Rising time of boom |
s |
82 |
|
16 |
Laydown time of boom |
s |
69 |
|
17 |
Slewing speed |
r/min |
0~1.5 |
|
Hydraulic system |
18 |
Rated working pressure |
MPa |
30 |
19 |
Rated working flux |
L/min |
500 |
|
20 |
Volume of Hydraulic oil tank |
L |
1200 |
|
Mass specification |
21 |
Deadweight of crane in traveling condition |
kg |
65000 |
22 |
Front axle load |
kg |
33200 |
|
23 |
Rear axle load |
kg |
31800 |
|
Traveling specification |
24 |
Max. traveling speed (Advance/back) |
km/h |
24/15 |
25 |
Wheelbase |
mm |
4600 |
|
26 |
Wheel track(Front/Rear) |
mm |
2860 |
|
27 |
Max. grade ability |
% |
74 |
