Truck Mounted Crane

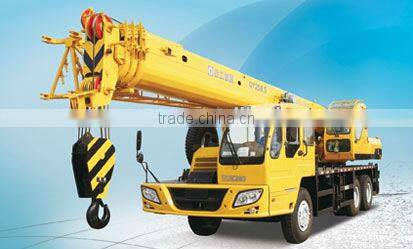

Truck Mounted Crane photo-1
US$ 107,000 - 112,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Rated Lifting Moment:
1010KN.m
Max. Lifting Load:
25 ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Rated Lifting Moment 1010KN.m
Max. Lifting Load 25 ton
Max. Lifting Height 47.6m (section boom+jib))
Place of Origin Jiangsu, China
Brand Name XCMG
Model Number QY25B.5

Specifications

1. XCMG 25ton hydraulic truck crane;
2. XCMG brand new;
3. Pilot control system;
4. We are manufacturer.

       Specifications

Dimension

Unit

QY25B.5

Overall length

mm

12990

Overall width

mm

2500

Overall height

mm

3430

Weight



Total weight in travel

kg

29000

Front axle load

kg

6970

Rear axle load

kg

22030

Power



Engine model



 SC8DK260Q3

Engine rated power

kW/(r/min)

192/2200

Engine rated torque

N.m/(r/min)

 1000/1400

Travel



Max. travel speed

km/h

75

Min. turning diameter

m

20

Min. ground clearance

mm

272

Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

30

Fuel consumption for 100km

L

40

Main performance



Max. rated total lifting capacity

t

25

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.450

Max. lifting torque

kN.m

1010

Base boom

m

10.85

Fully extended boom

m

34.19

Fully extended boom+jib

m

42.3

Longitudinal outrigger span

m

5

Lateral outrigger span

m

6

Working speed



Boom luffing time

s

75

Boom full extension time

s

100

Max. swing speed

r/min

3

Max. speed of main winch (single rope)

m/min

120

Max. speed of aux. winch (single rope)

m/min

120



 truck mounted crane
