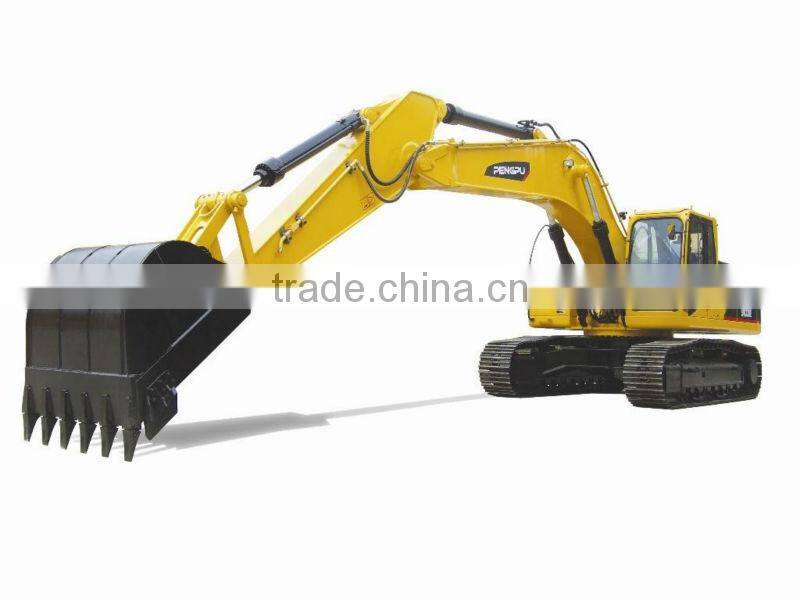

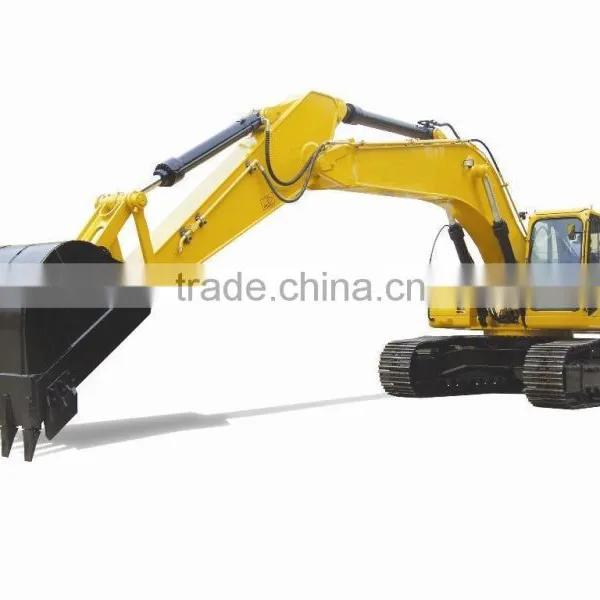

33t excavator
- 100 Set / Sets per Month
- main ports in China
- T/T
- Good Condition HYUNDAI R220LC-9S Used Excavator 22ton Large Crawler Municipal Construction Excavators R 220 210 For Sale
- Used CAT 330D 320D2 crawler excavator CAT 320 CAT330D used excavators used cat 320D excavator
- Hot Selling Good Quality for the mini Used Excavator Doosan DH55 DX75 DX225 Second Hand Excavators/digger
- Cheap second-hand Japanese Carter 320d excavator second-hand Komatsu 20 ton excavator price PC200
- 0.8 ton mini excavator for sale
- Affordable and high-quality of the used CAT 330D 320D2 crawler excavator CAT 320 CAT330D excavators used cat 320D excavator
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Pengpu | Model Number: | SW330E |
Condition: | New | Moving Type: | Crawler Excavator | Operating Weight: | 33400kg |
Bucket capacity: | 1.45 cubic m | Maximum Digging Height: | 10390mm | Maximum Digging Depth: | 7490mm |
Machine Weight: | 36600kg | Max Digging Radius: | 11220mm |
Product Description
Specifications
Excellent quality with competitive price; Cummins engine; Advanced hydraulic system and other key parts.NO. | DESCRIPTION | SPECIFICATON | ||
| Main machine |
| ||
(1) | Working weight | 33400kg | ||
(2) | Bucket capacity | 1.45M3 | ||
(3) | Track width | 600mm | ||
(4) | Transport dimension | 11250*3190*3430(mm) | ||
(5) | Overall dimension | Length of track on ground | 3730mm | |
Ground clearance of counter weight | 1180mm | |||
Tail swing radius | 3430mm | |||
Total length | 11250mm | |||
Total height | 3430mm | |||
Total width | 3190mm | |||
Track gauge | 2590mm | |||
Min. ground clearance | 540mm | |||
Track width | 600mm | |||
Track height | 1040mm | |||
(6) | Working range | Max. working radius | 11220mm | |
Max. digging depth | 7490mm | |||
Max. vertical digging depth | 6520mm | |||
Max. digging height | 10390mm | |||
Max. dumping height | 7320mm | |||
Min. swing radius | 4295mm | |||
(7) | Performance | Ground pressure | 68.5Kpa | |
Swing speed | 11r/min | |||
Travelling speed high/low | 4.5/3.1km/h | |||
Grade ability | 35° | |||
Noise inside the cab | ≤80db(A) | |||
Fuel tank | 545L | |||
(8) | Engine | Company | Cummins C8.3(6CTAA) | |
Type | 6 cylinder, inline, turbocharged | |||
Rated horsepower | 168KW/2000rpm | |||
Bore-stroke | 114*134.9mm | |||
Displacement | 8.29L | |||
Min. fuel consumption | ≤228g/kw.h | |||
Max. torque /revolution | 975Nm/1400rpm | |||
(9) | Swing motor | Company | KAWASAKI | |
Type | M5X180CHB-10A-20A/260-RG16S21D18A-140 | |||
Rated pressure | 25.5Mpa | |||
Max. delivery | 180.1cc/rev | |||
(10) | Travel motor | Company | JAPAN NEBTESCO | |
Type | GM60VA | |||
| Rated pressure | 35.0MPa | ||
Max. delivery | 290.7/170.1cc/rev | |||
(11) | Swing system | Swing speed | 11RPM | |
Type | constant closed disc type brake with buffer function | |||
| (12) | Chassis system | Track feature | three grouser, grease tension |
Track rollers and carrier rollers | Floating sealing | |||
Quantity | 2 carrier rollers and 9 track rollers | |||
Brake type | Hydraulic brake | |||
(13) | Working equipment | Arm length | 6450mm | |
Rod length | 3000mm | |||
Bucket digging force | ≥185KN | |||
Rod crowed force | ≥160KN |
Standard equipment | Engine | Cummins C8.3(6CTA) |
Hydraulic pump | KAWASAKI | |
Control valve | KAWASAKI | |
Swing motor | KAWASAKI | |
Travel motor | JAPAN NEBTESCO | |
Cylinder | HENG LI | |
Electrical Instrument | Imported | |
Driving cab | Luxury | |
Seat | Grammer | |
Painting | NIPPON |
