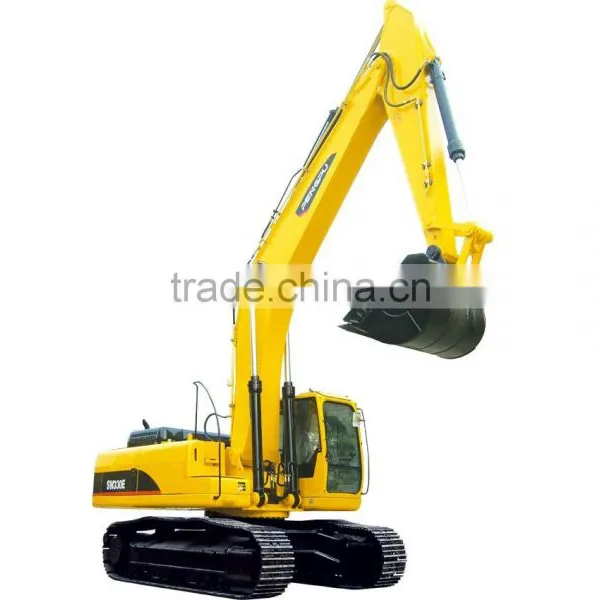

Help Center33t Excavator
Related Products
Specifications
Excellent quality with competitive price; Cummins engine; Advanced hydraulic system and other key parts.NO. |
DESCRIPTION |
SPECIFICATON |
||
|
|
Main machine |
|
||
(1) |
Working weight |
33400kg |
||
(2) |
Bucket capacity |
1.45M3 |
||
(3) |
Track width |
600mm |
||
(4) |
Transport dimension |
11250*3190*3430(mm) |
||
(5) |
Overall dimension |
Length of track on ground |
3730mm |
|
Ground clearance of counter weight |
1180mm |
|||
Tail swing radius |
3430mm |
|||
Total length |
11250mm |
|||
Total height |
3430mm |
|||
Total width |
3190mm |
|||
Track gauge |
2590mm |
|||
Min. ground clearance |
540mm |
|||
Track width |
600mm |
|||
Track height |
1040mm |
|||
(6) |
Working range |
Max. working radius |
11220mm |
|
Max. digging depth |
7490mm |
|||
Max. vertical digging depth |
6520mm |
|||
Max. digging height |
10390mm |
|||
Max. dumping height |
7320mm |
|||
Min. swing radius |
4295mm |
|||
(7) |
Performance |
Ground pressure |
68.5Kpa |
|
Swing speed |
11r/min |
|||
Travelling speed high/low |
4.5/3.1km/h |
|||
Grade ability |
35° |
|||
Noise inside the cab |
≤80db(A) |
|||
Fuel tank |
545L |
|||
(8) |
Engine |
Company |
Cummins C8.3(6CTAA) |
|
Type |
6 cylinder, inline, turbocharged |
|||
Rated horsepower |
168KW/2000rpm |
|||
Bore-stroke |
114*134.9mm |
|||
Displacement |
8.29L |
|||
Min. fuel consumption |
≤228g/kw.h |
|||
Max. torque /revolution |
975Nm/1400rpm |
|||
(9) |
Swing motor |
Company |
KAWASAKI |
|
Type |
M5X180CHB-10A-20A/260-RG16S21D18A-140 |
|||
Rated pressure |
25.5Mpa |
|||
Max. delivery |
180.1cc/rev |
|||
(10) |
Travel motor |
Company |
JAPAN NEBTESCO |
|
Type |
GM60VA |
|||
|
Rated pressure |
35.0MPa |
||
Max. delivery |
290.7/170.1cc/rev |
|||
(11) |
Swing system |
Swing speed |
11RPM |
|
Type |
constant closed disc type brake with buffer function |
|||
|
(12) |
Chassis system |
Track feature |
three grouser, grease tension |
Track rollers and carrier rollers |
Floating sealing |
|||
Quantity |
2 carrier rollers and 9 track rollers |
|||
Brake type |
Hydraulic brake |
|||
(13) |
Working equipment |
Arm length |
6450mm |
|
Rod length |
3000mm |
|||
Bucket digging force |
≥185KN |
|||
Rod crowed force |
≥160KN |
|||
Standard equipment |
Engine |
Cummins C8.3(6CTA) |
Hydraulic pump |
KAWASAKI |
|
Control valve |
KAWASAKI |
|
Swing motor |
KAWASAKI |
|
Travel motor |
JAPAN NEBTESCO |
|
Cylinder |
HENG LI |
|
Electrical Instrument |
Imported |
|
Driving cab |
Luxury |
|
Seat |
Grammer |
|
Painting |
NIPPON |
