0,5m3 Skid Steer Loader

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

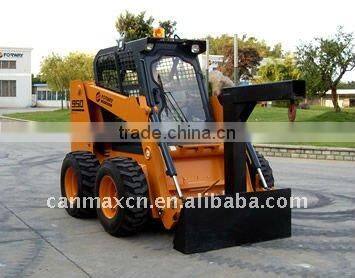

0,5m3 Skid Steer Loader thumbnail-1

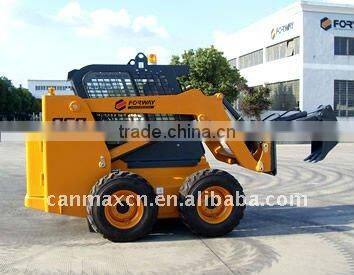

0,5m3 Skid Steer Loader photo-1
US$ 20,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
CANMAX
Model Number:
FW950
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name CANMAX
Model Number FW950
Place of Origin Zhejiang, China
Type Skid Steer Loader
Moving Type Wheel Loader
Rated Load 1020kg

Specifications

1.Good quality,low price.
2.Imported hydraulic parts,professional service
3.Operating capacity:1020kg

Skid steer loader FW950





Engine



Rated power(KW/rpm)

55/2500

Max Tloquemoment(N.M/rpm)

245/1600





Number of Cylinder

4

Displacement(L)

3.3(voltage increase)





Transmission Agent



Running speed(double speed)km/h

0-11

Tyre

12.0-16.5 10PR





Performance:



Operating Capacity(kg)

1020



Tipping load(kg)

2040

Lifting Mechanism

Radial Lift

max prying force(N)

24000





Hydraulic System



Saft Pressure(bar)

210-230

Rated Flow(L/min)

65/75

Exclusive Robotistic Rated Folw(L/min)

80

Servo Hydraulic System Rated Flow(L/min)

80

High flow optional(L/min)

125/138





DIMENSIONS



Height to cab top(mm)

2095

Length with bucket(mm)

3725

Length without bucket(mm)

2965

Overall width(mm)

1940

Bucket width(mm)

1950

Tread(mm)

1050





Operating Extent



Max. dump height(mm)

2450

Dump distance(mm)

665

Height to bucket hinge pin(mm)

3185

Angle of departure

20

Ground clearance(mm)

215





General Information



Operating weight(kg)

3300

Feul tank capacity(L)

92

Bucket capacity(m3)

0.48



0,5m3 skid steer loader0,5m3 skid steer loader0,5m3 skid steer loader
