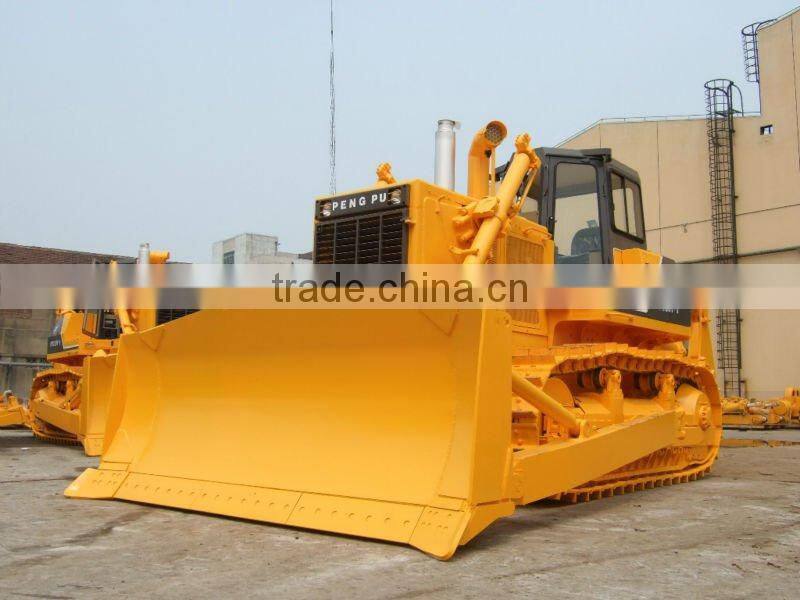

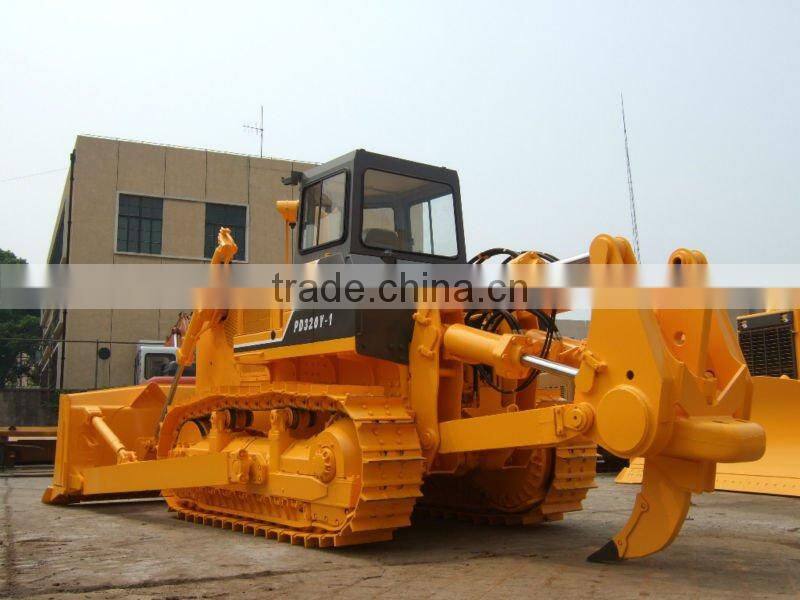

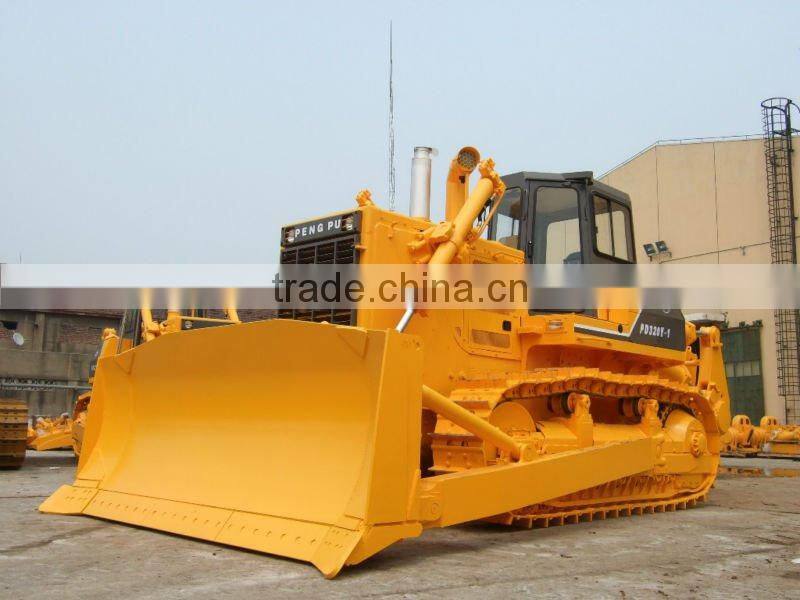

320hp Bulldozer
Shanghai-PD220Y-1 bulldozers are manufactured by Shanghai Canmax according to the imported technology of Komatsu D85A. It has outstanding advantages contrasting to relevant civil products:
1. Undercarriage steering hydraulic system
We imported, digested and applied the update steering valve of Komatsu, which lead to compact structure and easy operation.
2. Electronic monitor system
The 3-stage alarming & monitoring system is mounted in cabin, which can measure and monitor voltage, oil pressure, water temperature, oil temperature, engine speed. It also can monitor the status of fuel oil, cooling water and the condition of air filter. By the twinkling of light and buzzing of horn, the system can inform drivers the essential information of bulldozer and assure bulldozers working in normal, safe and high efficiency condition. There are also engine oil pressure gauge and water temperature gauge in the instrument panel to make parameters visible and own two-tier protection function.
3. Transmission, hydraulic parts, undercarriage and working equipment
Inter-changeable with same products of Komatsu as well as those products that are produced according to Komatsu technology.
4. The operating system is designed to be reasonable, handy and comfortable and allow more working place for the driver.
5. Final drive
The final drive gear is produced according to the imported technology strictly. Our imported specialized gear-processing equipment insure the high quality and the leading position in China.
6. The cabin is hexahedron with wide view scope.
Shanghai-PD220Y-1 bulldozer is the only one which import update technology of Komatsu D85A-21and occupy leading position in China.
NO |
DESCRIPTION |
UNIT |
SPECIFICATON |
||||
1 |
MODEL |
/ |
PD320Y-1 |
||||
2 |
Engine |
Model |
/ |
Chongqing Cummins NTA855-C360S10 |
|||
Type |
/ |
Straight vertical, four-stroke, water cooling, direct injection type. turbocharger. |
|||||
Number of cylinder-bore*stroke |
mm |
6-139.7*152.4 |
|||||
Displacement |
L |
14 |
|||||
Rated horsepower/revolution |
kW/r/min |
239/2000 |
|||||
Max. torque/revolution |
N.m/r/min |
1421/1400 |
|||||
Min. fuel consumption |
g/kw.h |
242 |
|||||
3 |
Start method |
Type |
/ |
Electric starting motor |
|||
Voltage/power |
V/kW |
24V/11kW |
|||||
Battery |
/ |
24V(12V*2)-195Ah |
|||||
4 |
Lubrication system |
Lubrication type |
/ |
Forced lubrication. |
|||
Cooling type |
/ |
Water cooling |
|||||
5 |
Fuel system |
Specification |
/ |
Light diesel |
|||
Speed controller |
/ |
PT pump |
|||||
6 |
Cooling system |
Closed water circulation |
/ |
Through radiator, fan, heat exchanger |
|||
7 |
Electric generator |
V/A |
24/35 |
||||
8 |
Air filter type |
/ |
Dry type, precleaned cyclone air cleaner. |
||||
9 |
Transmission system |
Hydraulic torque converter |
/ |
3-element, single stage, single phase |
|||
|
Transmission
|
/ |
3-element, single stage, single phase |
|||||
Bevel gear |
/ |
Helical bevel gear, splash lubrication. |
|||||
Steering clutch |
/ |
Wet, multiple disc, spring loaded, hand-operated with booster and hydraulic released. |
|||||
Steering brake |
/ |
Wet, band brake, operated with hydraulic booster. |
|||||
Final drive |
/ |
Spur gear, double reduction, splash lubrication. |
|||||
10 |
Travel Speed |
Forward |
1st |
km/h |
0-3.6 |
||
2nd |
km/h |
0-6.6 |
|||||
3rd |
km/h |
0-11.5 |
|||||
Reverse |
1st |
km/h |
0-4.4 |
||||
2nd |
km/h |
0-7.8 |
|||||
3rd |
km/h |
0-13.5 |
|||||
|
11 |
Under carriage |
Suspension system |
/ |
Equalizer bar |
|||
Track tension |
/ |
Hydraulic-adjusted |
|||||
Sprocket |
pics |
Segmented |
|||||
Number of track rollers (each side) |
pics |
7 (2 double 5 single) |
|||||
Number of carrier rollers (each side) |
pics |
2 |
|||||
12 |
Track |
Type |
/ |
Sealed single grouser |
|||
Track pitch |
mm |
228.6 |
|||||
Number of track shoes |
pics |
41 |
|||||
Track gauge |
mm |
2140 |
|||||
Length of track on ground |
mm |
3150 |
|||||
Track width |
mm |
560 |
|||||
Ground pressure |
MPa |
0.094 |
|||||
Ground clearance |
mm |
500 |
|||||
13 |
Hydraulic system of work equipment |
Pump type |
/ |
Gear pump |
|||
Rated delivery |
L/min |
335 |
|||||
Control valve |
/ |
Hand-operated, servo valve. |
|||||
Working pressure |
MPa |
13.7 |
|||||
Fuel tank |
L |
110 |
|||||
Blade Max. lift above the ground |
mm |
1560 |
|||||
Blade Max. drop below the ground |
mm |
560 |
|||||
Max. lift speed |
m/s |
0.4 |
|||||
Max. tilt |
mm |
1000 |
|||||
Pitch adjustment |
0 |
55±2 |
|||||
14 |
blade |
type |
/ |
Semi U blade U blade |
|||
Dimension |
mm |
4130*1590 4225*1745 |
|||||
Blade capacity |
m3 |
10 12.8 |
|||||
16 |
Ground ability |
0 |
30 |
||||
17 |
Dimension without ripper |
mm |
6880*4130*3640 |
||||
18 |
Operating weight without ripper |
kg |
36000 |
||||
