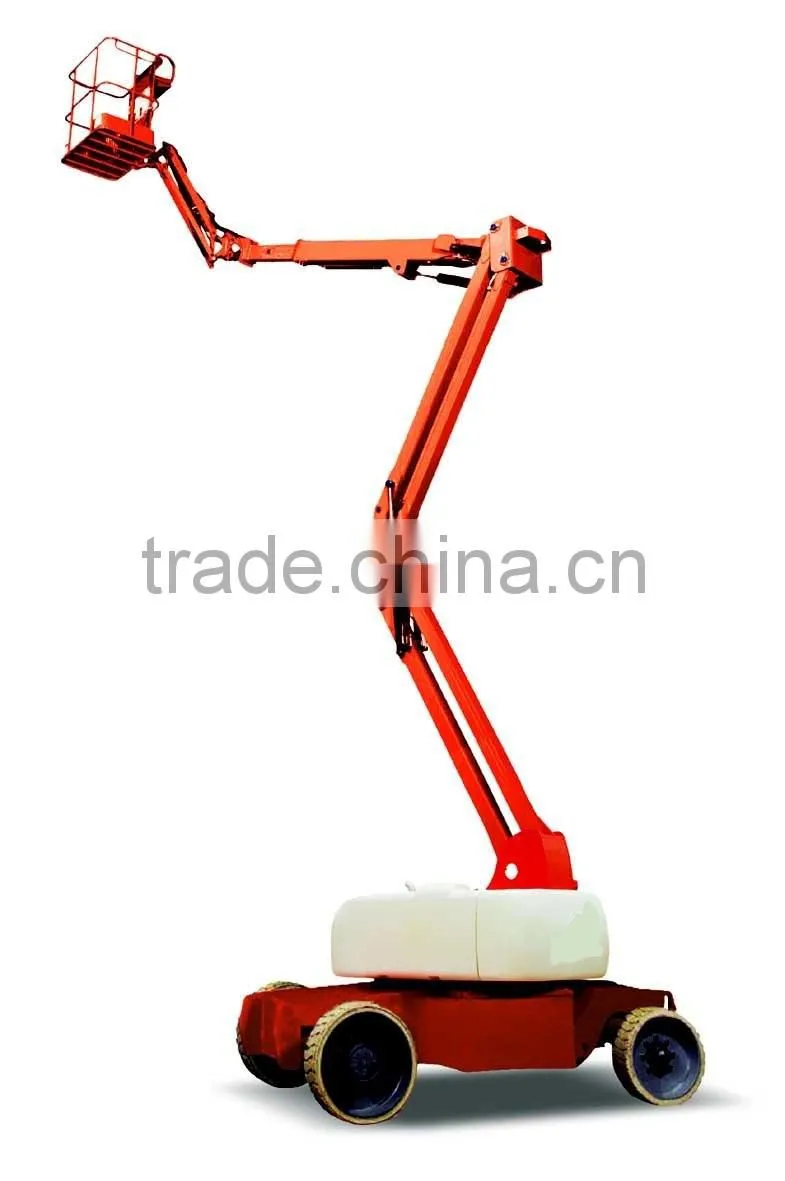

Self-Propelled Articulating Boom Aerial Platform CMQB15 17M
US$ 10,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
canmax
Model Number:
CMQB15
Lift Mechanism:
Articulated Lift
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self-Propelled Articulating Boom Aerial Platform CMQB18 20MUS$ 10,000 - 60,000MOQ: 1 Set -
Self-Propelled Articulating Boom Aerial Platform CMQB25 27MUS$ 10,000 - 60,000MOQ: 1 Set
-
15m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
-
6m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
-
8m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
Brand Name
canmax
Model Number
CMQB15
Lift Mechanism
Articulated Lift
Lift Drive / Actuation
Hydraulic
Power
/
Rated Loading Capacity
250KG
Min. Lifting Height
2m
Max. Lifting Height
17m
Table Size
1.45 m x 0.85 m x 1.24 m
Overall Dimensions
7.68*2.26*2.16m
Weight
6850KG
Certification
ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Self-Propelled Articulating Boom Aerial Platform CMQB15 17M
Product Description
| Dimensions | |
| Platform height max. | 49 ft (15 m) |
| Working height max. | 55 ft (17 m) |
| Horizontal reach max. | 27 ft 9 in (8.5 m) |
| Up and over clearance max. | 24 ft 3 in (7.4 m) |
| Length - stowed | 25 ft 2 in (7.68 m) |
| Width - stowed | 7 ft 4 in (2.26 m) |
| Height - stowed | 7 ft 1 in (2.16 m) |
| Wheelbase | 6 ft 7 in (2.03 m) |
| Ground clearance | 1 ft (0.32 m) |
| Platform size (L*W*H) | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) |
| Productivity | |
| Max. platform occupancy | 2 |
| Lift capacity | 551 lbs (250 kg) |
| Turntable rotation | 355° |
| Platform rotation | 160° |
| Drive speed - stowed | 0~4.3 mph (0~7 km/h) |
| Drive speed - raised | 0~0.7 mph (0~1.1 km/h) |
| Gradeability | 30%(2WD) 40%(4WD) |
| Turning radius - inside | 5 ft 9 in (1.8 m) |
| Turning radius - outside | 14 ft 8 in (4.5 m) |
| Turntable tailswing | 0 ft (0 m) |
| Max. allowable slope | 3° |
| Drive & steer model | 2 WD * 2 WS / 4 WD * 2 WS |
| Tire size / type | 33*12 - 20 / solid |
| Power | |
| Power source | Perkins Engine |
| Driving type | Hydraulic |
| Fuel tank capacity | 18.49 gal (70 L) |
| Control voltage | 12 VDC |
| Power | 37.3 KW |
| Weight | |
| Overall weight | 15102 lbs (6850 kg) - 2WD |
| 15543 lbs (7050 kg) - 4WD | |
| Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
