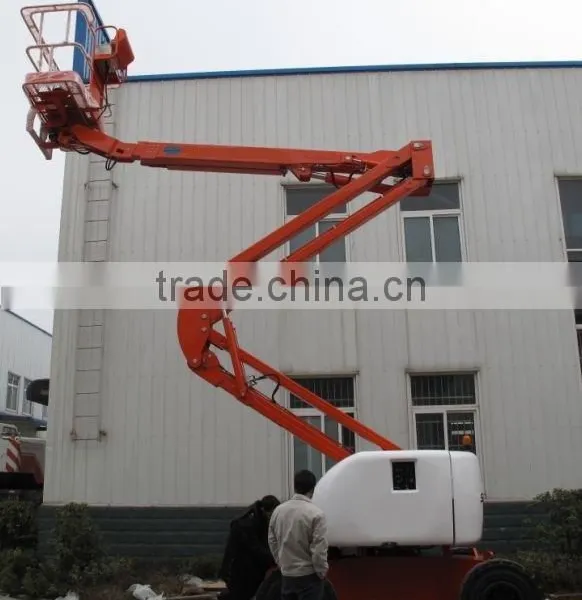

Self-Propelled Articulating Boom Aerial Platform CMQB25 27M
US$ 10,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
canmax
Model Number:
CMQB25
Lift Mechanism:
Articulated Lift
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set -
6m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
-
8m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
-
10m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
-
12m Self Propelled Scissor Lift Aerial Work PlatformNegotiableMOQ: 1 Set
Brand Name
canmax
Model Number
CMQB25
Lift Mechanism
Articulated Lift
Lift Drive / Actuation
Hydraulic
Power
60KW
Rated Loading Capacity
230KG
Min. Lifting Height
2m
Max. Lifting Height
27m
Table Size
1.45 m x 0.85 m x 1.24 m
Overall Dimensions
11.36*2.48*3.16m
Weight
15900KG
Certification
ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Self-Propelled Articulating Boom Aerial Platform CMQB25 27M
Product Description
| Models | CMQB25 |
| Dimensions | |
| Platform height max. | 81 ft (24.6 m) |
| Working height max. | 87 ft (26.6 m) |
| Horizontal reach max. | 52 ft 8 in (16.1 m) |
| Up and over clearance max. | 30 ft 8 in (9.4 m) |
| Length - stowed | 37 ft 3 in (11.36 m) |
| Width - stowed | 8 ft 1 in (2.48 m) |
| Height - stowed | 10 ft 4 in (3.16 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground clearance | 1 ft 3 in (0.39 m) |
| Platform size (L*W*H) | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) |
| Productivity | |
| Max. platform occupancy | 2 |
| Lift capacity | 507 lbs (230 kg) |
| Turntable rotation | 360° continuous |
| Platform rotation | 160° |
| Drive speed - stowed | 0~3.0 mph (0~4.8 km/h) |
| Drive speed - raised | 0~0.7 mph (0~1.1 km/h) |
| Gradeability | 45% |
| Turning radius - inside | 9 ft 8 in (3.0 m) |
| Turning radius - outside | 20 ft 8 in (6.33 m) |
| Turntable tailswing | 3 ft 3 in (1 m) |
| Max. allowable slope | 3° |
| Drive & steer model | 4 WD * 2 WS |
| Tire size / type | 12.00 - 20 / 8.5 solid |
| Power | |
| Power source | Original Cummins Engine |
| Driving type | Hydraulic |
| Fuel tank capacity | 42.27 gal (160 L) |
| Control voltage | 12 VDC |
| Power | 60 KW |
| Weight | |
| Overall weight | 35053 lbs (15900 kg) |
| Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
