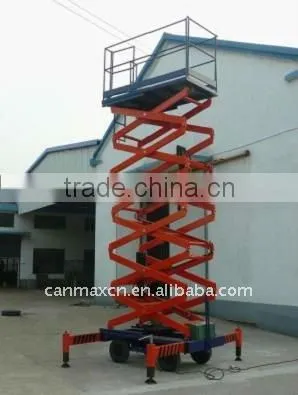

15m self propelled scissor lift aerial work platform

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	CANMAX
Model Number	GTJS15

15m self propelled scissor lift aerial work platform
1.Platform height 15.26m
2.Lift capacity 680kg
3.Weight 6650kg

15m self propelled scissor lift aerial work platform

No.	Item	Parameter
1	Working height maximum	16.96m
2	Platform height maximum	15.26m
3	Height-stowed	2.91m
4	Length-stowed	4.03m
5	Width	2.28m
6	Ground clearance-center	0.33m
7	Platform length-stowed	3.95m
8	Platform length-extended	6.15m
9	Platform width	2.06m
10	Lift capacity	680kg
11	Lift capacity-extension deck	300kg
12	Turning radius (outside)	5.2m
13	Travel speed-stowed	6.3km/h
14	Travel speed-raised	1.1km/h
15	Gradeablity	35%
16	Weight	6650kg
17	Engine	Cummins B3.3-C60 45kW

Standard equipment

-Can Bus Technology

-Proportional controls

-Two self-closing gates

-2WD

-Oscillating axle

-Slide-out engine tray

-Tilt protection

-Tilt alarm

-Horn

-Hour meter

-Fault indication on platform

-Anti-restart engine protection

-Two extended platforms
