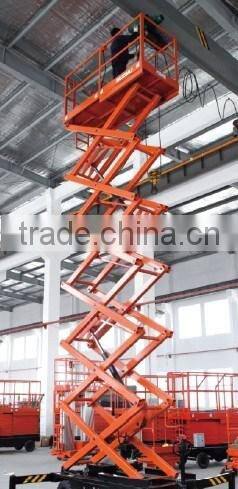

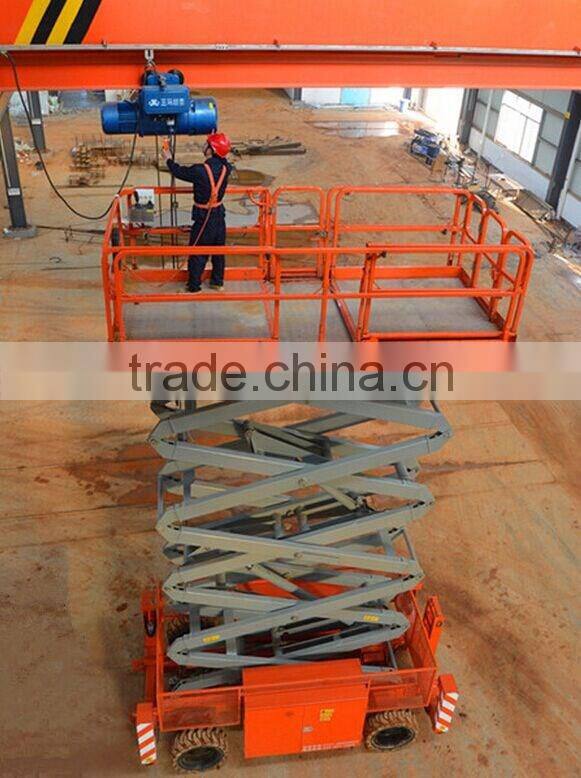

Self Propelled Sessior Lift CMJC0608 8M
US$ 10,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Canmax
Model Number:
CMJC0608
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self Propelled Sessior Lift CMJC0812 10MUS$ 10,000 - 60,000MOQ: 1 Set -
Self Propelled Sessior Lift CMJC1212 14MUS$ 10,000 - 60,000MOQ: 1 Set
-
Self Propelled Sessior Lift CMJC1412 16MUS$ 10,000 - 60,000MOQ: 1 Set
-
Self-Propelled Articulating Boom Aerial Platform CMQB14 16MUS$ 10,000 - 60,000MOQ: 1 Set
-
Self-Propelled Articulating Boom Aerial Platform CMQB15 17MUS$ 10,000 - 60,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
Canmax
Model Number
CMJC0608
Lift Mechanism
Scissor Lift
Lift Drive / Actuation
Hydraulic
Power
/
Rated Loading Capacity
230Kg
Min. Lifting Height
1.78m
Max. Lifting Height
7.8m
Table Size
1.64 m x 0.76 m x 1.1 m
Overall Dimensions
1.78*0.76*2m
Weight
1328KG
Certification
CE ISO
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Self Propelled Sessior Lift CMJC0608 8M
Product Description
| Models | CMJC0608 |
| Dimensions | |
| Platform height max. | 19 ft (5.8 m) |
| Working height max. | 25 ft (7.8 m) |
| Platform extended | 3 ft (0.9 m) |
| Lengt - stowed | 5 ft 8 in (1.775 m) |
| Width - stowed | 2 ft 5 in (0.76 m) |
| Height- stowed | 6 ft 8 in (2.06 m) |
| Wheelbase | 4 ft 3 in (1.315 m) |
| Ground clearance | 3 in (0.07 m) |
| Platform size(L*W*H) | 5 ft 4 in*2 ft 5 in*3 ft 6 in (1.64 m*0.76 m*1.1 m) |
| Productivity | |
| Max. platform occupancy | 2 |
| Lift capacity | 507 lbs (230 kg) |
| Lift capacity - extension deck | 265 lbs (120 kg) |
| Driving speed - stowed | 0~2.5 mph (0~4 km/h) |
| Driving speed - raised | 0~0.5 mph (0~0.8 km/h) |
| Gradeability | 30% |
| Turning radius - inside | 0 ft (0 m) |
| Turning radius - outside | 4 ft 9 in (1.48 m) |
| Raise / Lower speed | 18/ 25 s |
| Controls | Proportional |
| Drives | Dual front wheel |
| Brakes | Dual rear wheel |
| Tire size (solid non-marking) | 12 in * 5 in (305 mm * 115 mm) |
| Power | |
| Power source | 24V DC (4*6V, 225Ah batteries) |
| Hydraulic system capacity | 4.76 gal (18 L) |
| Power | 3 KW |
| Weight | |
| Indoor | 2928 lbs (1328 kg) |
| Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
