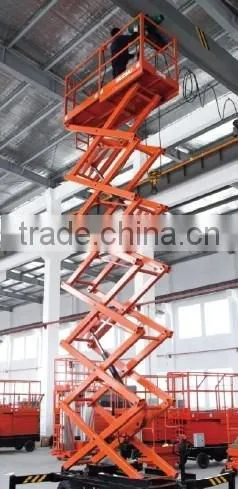

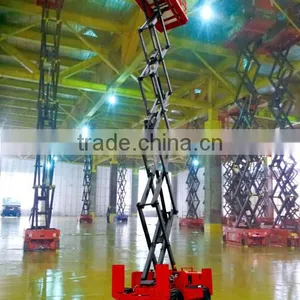

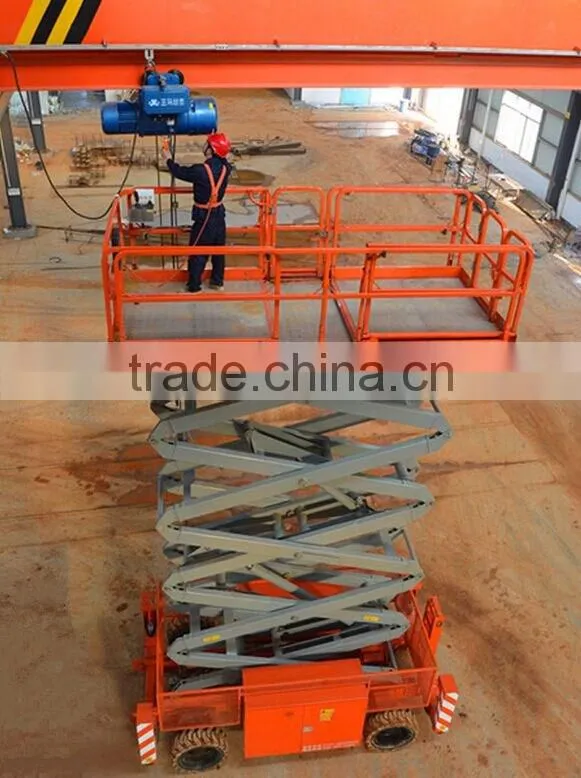

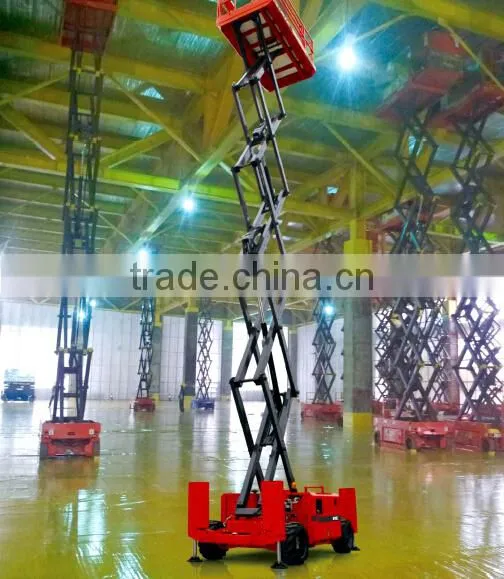

Self Propelled Sessior Lift CMJC1212 12M
US$ 10,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Canmax
Model Number:
CMJC1212
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self Propelled Sessior Lift CMJC0408 6MUS$ 10,000 - 60,000MOQ: 1 Set -
Self Propelled Sessior Lift CMJC0608 8MUS$ 10,000 - 60,000MOQ: 1 Set
-
Self Propelled Sessior Lift CMJC0812 10MUS$ 10,000 - 60,000MOQ: 1 Set
-
Self Propelled Sessior Lift CMJC1212 14MUS$ 10,000 - 60,000MOQ: 1 Set
-
Self Propelled Sessior Lift CMJC1412 16MUS$ 10,000 - 60,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
Canmax
Model Number
CMJC1212
Lift Mechanism
Scissor Lift
Lift Drive / Actuation
Hydraulic
Power
/
Rated Loading Capacity
320Kg
Min. Lifting Height
2.7
Max. Lifting Height
13.6
Table Size
2.3*1.15*1.1m
Overall Dimensions
2.41*1.15*2.7m
Weight
3050
Certification
CE ISO
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Self Propelled Sessior Lift CMJC1212 12M
Product Description
| Models | GTJZ1212E |
| Dimensions | |
| Platform height max. | 38 ft (11.6 m) |
| Working height max. | 44 ft (13.6 m) |
| Platform extended | 3 ft (0.9 m) |
| Length - stowed | 8 ft (2.43 m) |
| Width - stowed | 3 ft 8 in (1.15 m) |
| Height - folding guardrails | 8 ft 9 in (2.7 m) |
| Height - rails folded | 6 ft 7 in (2.04 m) |
| Wheelbase | 6 ft 1 in (1.87 m) |
| Ground clearance | 3 in (0.09 m) |
| Platform size(L*W*H) | 7 ft 5 in*3 ft 8 in*3 ft 6 in (2.3 m*1.15 m*1.1 m) |
| Productivity | |
| Max. platform occupancy | 2 (indoor) 1 (outdoor) |
| Lift capacity | 705 lbs (320 kg) |
| Lift capacity - extension deck | 265 lbs (120 kg) |
| Drive speed - stowed | 0~2.5 mph (0~4 km/h) |
| Drive speed - raised | 0~0.5 mph (0~0.8 km/h) |
| Gradeability | 20% |
| Turning radius - inside | 0 ft (0 m) |
| Turning radius - outside | 7 ft 7 in (2.35 m) |
| Raise / Lower speed | 65 /45 s |
| Controls | Proportional |
| Drives | Dual front wheel |
| Brakes | Dual rear wheel |
| Tire size (solid non-marking) | 16 in * 5 in (406 mm * 125 mm) |
| Power | |
| Power source | 24V DC (4*6V, 225Ah batteries) |
| Hydraulic system capacity | 4.23 gal (16 L) |
| Power | 3 KW |
| Weight | |
| Indoor | 6173 lbs (2800 kg) |
| Indoor & outdoor general | 6900 lbs (3130 kg) |
| Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
