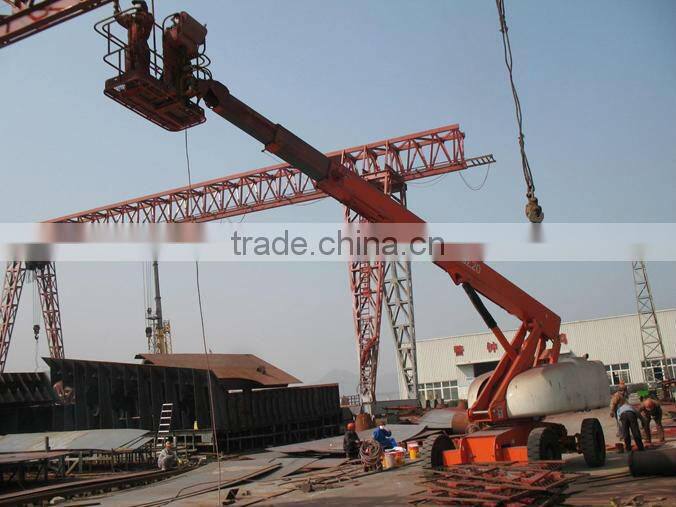

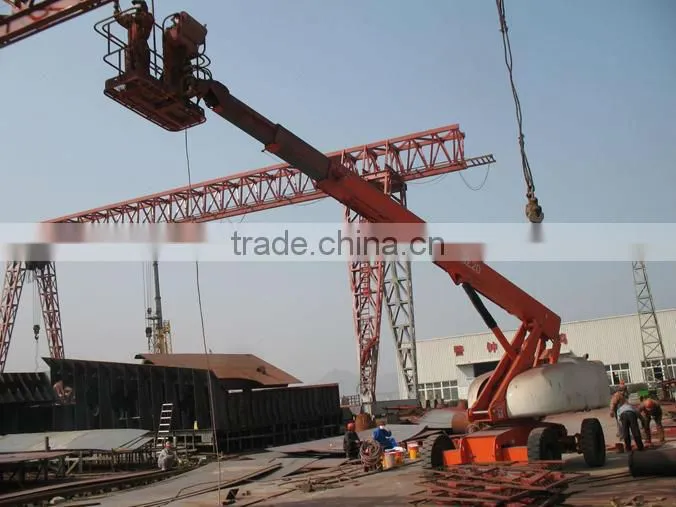

20m Aerial Work Platform

Name: 20m Aerial Work Platform
Brand: CANMAX
SKU: 141323796
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

US$ 100,000 - 130,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

CANMAX

Model Number:

GTBZ20

Payment & Shipping

Payment Methods:

Port of Shipment:

main ports in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name CANMAX

Model Number GTBZ20

Specifications

As a professinal manufacturer of aerial work platforms, we are able to give you the best quality and service.

More details about this Aerial Work Platform:

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	9.18M (30ft)	Platform height max.	20.6M (68ft)
Overall width(stowed)	2.49M (8ft)	Working height max.	22.6M (74ft)
Overall height(stowed)	2.8M (9ft)	Horizontal reach max.	17.3M (57ft)
Ground clearance	0.31M (1ft)	Turntable rotation	360°continuous
Wheelbase	2.49M (8.2ft)	Platform rotation	160°
Overall weight	11015kg (2WD)	Platform Load capacity	250kg (non-restricted)
Overall weight	11085kg (4WD)	Platform Load capacity	340kg (restricted)
Platform Size (LWH)	1.830.761.1M (6ft 2.5ft 3.6ft)	Grade ability	40% (2WD)
Platform Size (LWH)	1.830.761.1M (6ft 2.5ft 3.6ft)	Grade ability	45% (4WD)
Platform levelling	Automatic	Turning radius(outside)	4.97M (16.3ft)
Tire specification	9.00-20	Turning radius(inside)	1.66 M (5.5ft)
Tire type	Solid	Turntable tailswing	1.32M (4.3ft)
Power		Max. Driving Speed	6.3km/h
Hydraulic tank vol.	170L	Driving Speed (stowed)	0~6.3km/h
Hydraulic system vol. (inc. the tank)	270L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	125L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Original Cummins B3.3 60hp	Max noise on normal use	82dB(A)
Drive & steer model	2WD*2WS	Max allowable side force	400N
