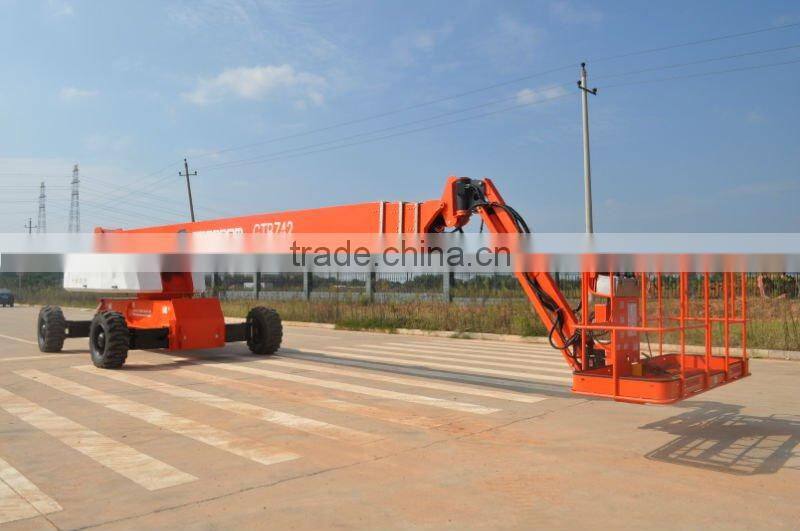

42m Telescopic Boom Self-propelled Aerial Work Platform

Name: 42m Telescopic Boom Self-propelled Aerial Work Platform
Brand: SINOBOOM
SKU: 141323760
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

SINOBOOM

Model Number:

GTBZ42

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name SINOBOOM

Model Number GTBZ42

Specifications

42m Telescopic boom Self-propelled aerial work platform
1.Platform height 41.6m
2.Lift capacity 480kg
3.Weight 20500kg

42m Telescopic boom Self-propelled aerial work platform

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	12.25M (40ft)	Platform height max.	41.6M (136ft)
Overall width(stowed)	2.49M (8ft)	Working height max.	43.6M (143ft)
Overall height(stowed)	3.05M (10ft)	Horizontal reach max.	24.38M (80ft)
Ground clearance	0.30M (1ft)	Turntable rotation	360°continuous
Wheelbase	3.81M (12.5ft)	Platform rotation	160°
Overall weight	20500kg (4WD)	Platform Load capacity	250kg (non-restricted)
Overall weight	20500kg (4WD)	Platform Load capacity	480kg (restricted)
Platform Size (LWH)	2.440.911.1M (8ft3ft3.6ft)	Grade ability	40% (4wd)
Platform levelling	Automatic	Turning radius(outside)	6.86M (23ft)
Tire specification	12.00-20	Turning radius(inside)	4.39M (14.4ft)
Tire type	Solid	Turntable tailswing	1.65M (5.4ft)
Power		Max. Driving Speed	5KM/H
Hydraulic tank vol.	200L	Driving Speed (stowed)	0~5km/h
Hydraulic system vol. (inc. the tank)	360L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	200L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Perkins 1104D	Max noise on normal use	82dB(A)
Drive & steer model	4WD*4WS	Max allowable side force	400N
