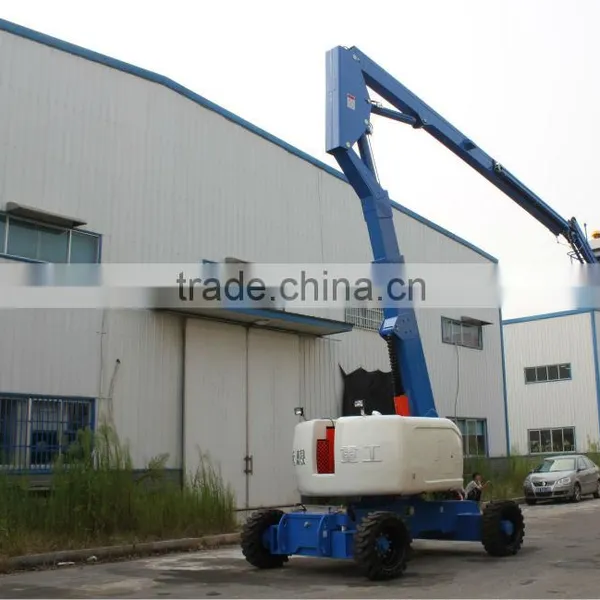

15m Aerial Work Platform

15m Aerial Work Platform thumbnail-1
15m Aerial Work Platform photo-1
US$ 45,000 - 60,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CANMAX
Model Number:
GTJZ13
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CANMAX
Model Number GTJZ13

Specifications

1. Working height max.:14.7m;
2. Platform height max.:13m
3.Horizontal reach max.:8m;

 Measurements Specifications

NO

Item

GTZZ12D

GTZZ14D

For illustrative purposes only, Specifications may vary and are subject to change without notice or obligation.

GTZZ16D

1

Working height maximum

14m

15.9m

17.7m

2

Platform height maximum

12.3

14.2m

16m

3

Platform Size

ALength

1.83 m

1.83m

1.83m

BWidth

0.76m

0.76m

0.76m

4

CHeight-stowed

2 m

2m

2m

5

DLength-stowed

5.89 m

6.2m

7.27m

6

EWidth

1.75m

1.75m

1.75m

7

FWheel Base

2.2 m

2.2m

2.2m

8

G Ground clearance center

0.33 m

0.33 m

0.33 m

7

Horizontal reach maximum

7

8m

9.33m

9

Lift capacity

230 kg

230kg

230 kg

10

Turning radius (inside)

3.0m

3.0m

3.0m

11

Turning radius (outside)

5.2m

5.2m

5.2m

12

Turntable Swing

360continuous

13

Speed of Turntable Swing

0

15

Leveling mode



Automatic

16

Platform rotation



±80°

17

Main booms’ quantity

2

18

Hydraulic pressure maximum

21MPa

20

Tire

33x12-20

21

Hydraulic oil tank capacity

115 L

22

Weight

7000kg

7570kg

7800kg

23

Travel speed





Stowed



6.3km/h

24

Raised or extended



1.1km/h

25

Grade ability

30%

26

Drive and turn mode



4WD×2×2

26

Battery



24x2/320Ah

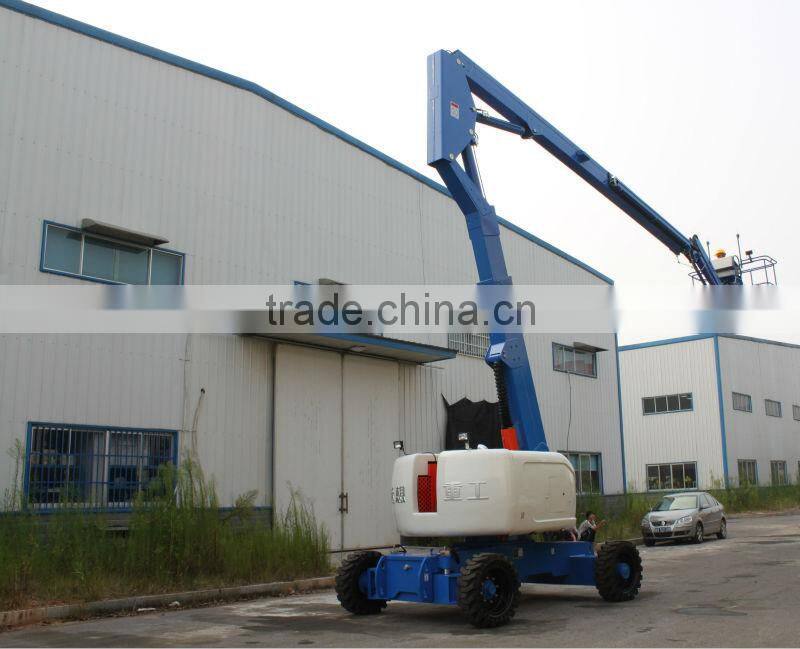

15m Aerial work platform
