18m Articulating Boom Self-propelled Aerial Work Platform

Name: 18m Articulating Boom Self-propelled Aerial Work Platform
Brand: SINOBOOM
SKU: 141323762
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

SINOBOOM

Model Number:

GTZZ18

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name SINOBOOM

Model Number GTZZ18

Specifications

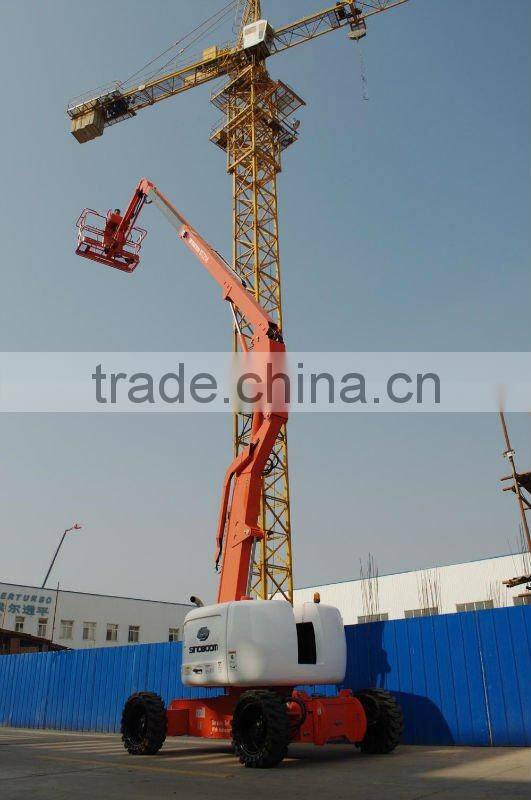

18m articulating boom Self-propelled aerial work platform
1.Platform height 18.4m
2.Lift capacity 250kg
3.Weight 10500kg

18m articulating boom Self-propelled aerial work platform

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	8.83M (29ft)	Platform height max.	18.4M (60ft)
Overall width(stowed)	2.46M (8.1ft)	Working height max.	20.4M (67ft)
Overall height(stowed)	2.69M (8.8ft)	Horizontal reach max.	12.1M (40ft)
Ground clearance	0.21M (0.7ft)	Turntable rotation	360°continuous
Wheelbase	2.44M (8ft)	Platform rotation	160°
Overall weight	10500kg (4WD)	Platform Load capacity	250kg
Platform Size (LWH)	1.830.761.1M (6ft 2.5ft 3.6ft)	Grade ability	40% (4WD)
Platform levelling	Automatic	Turning radius(outside)	6.29M (20ft)
Tire specification	33x12-20	Turning radius(inside)	3.48 M (11.4ft)
Tire type	Solid	Turntable tailswing	0M (0ft)
Power		Max. Driving Speed	6km/h
Hydraulic tank vol.	110L	Driving Speed (stowed)	0~6km/h
Hydraulic system vol. (inc. the tank)	150L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	150L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Cummins B3.3 60HP	Max noise on normal use	82dB(A)
Drive & steer model	4WD*2WS	Max allowable side force	400N
