Specifications
BS 3059 steel boiler and superheater tubes1 OD: 6.35-114.3mm
2 Thickness: 0.89-12.7mm
3 Length:3-12m

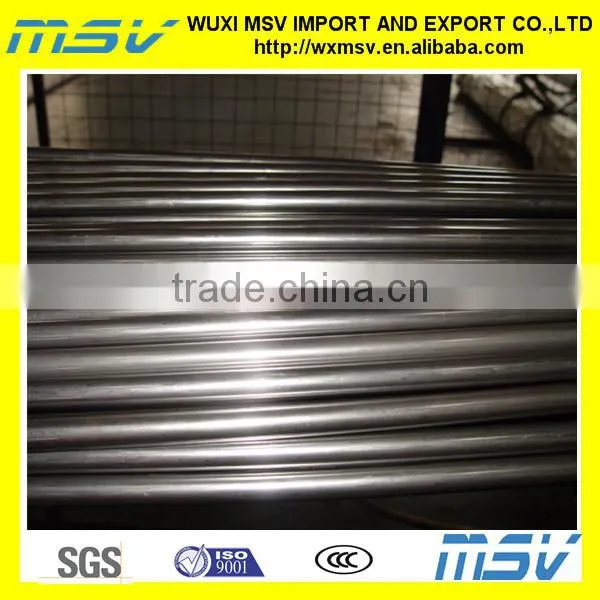

BS 3059 steel boiler and superheater tubes
Product Information
Black Steel Pipe
1) Wall Thickness: 0.89-12.7mm or according to your requirement
2) Outerside Diameters: 6.35-114.3mm
3) Length: 3000mm-12000mm, according to your requirement
4) Surface Treatment: black painting, 3PE FBE or others
5) Standard: ASTM, DIN, BS, GB, JIS
6) Tight tolerance, Smooth surface, Uniform mechanical property(Mechanical Properties equilibrium) ;
7) Heat treatment: BK, BKS, GBK, NBK,Stress Relief, Normalizing, Spheroidize Anneal, Annealing, Bright Annealing, Normalized, Quenched and Tempered, Solution Annealing, etc
8) Continuous stenciling as required ;
9) Rust prevention treatment, such as: immersion oil, lacquer, passivation, phosphating,etc;
10) Application: Automobile and Bearing Industry, Mechanical and Structral Purpose, Boiler and Heat Exchanger, Hydraulic and Petrochemical Purpose, etc.
11) Packaging: a) Plastic plug in both ends---- Packed in budles----protcted by plastic film----put into woven bags;
b) Plastic plug in both ends---- Packed in budles----protcted by plastic film----put into woven bags----put into crate;
c) Hexagonal bundles of max. 1,500kg with several steel strips, Wrapped in waterproof paper, PVC sleeve,and sackcloth with several steel strips or packed in heavy tri-wall boxes, wooden boxes, wooden slats as requires;Type: Round , Square, Rectangle, Hexagon. Streamline, etc;
8) Lead Time: 15-30 days. According to your quantity
| BS 3059 steel boiler and superheater tubes |
| Steel Grade |
| GB/T 8163: 10#, 20#, 35#, 45#, 16MN(Q345B) |
| GB 3087: 10#, 20#, 35#, 45#, 16MN(Q345B) |
| GB 5310: 20G, 12Cr1MoV, 12Cr1MoVG, 12CrMoG |
| ASTM A106: Gr A, Gr B, Gr C |
| ASTM A333: Gr 1, Gr 3, Gr 6, Gr 8 |
| ASTM A335: P1, P2, P5, P9, P11, P12, P22 |
| JIS G3452: SGP |
| JIS G3455: STS 370, STS 410, STS 480 |
| BS3059: HFS320, CFS320 |
| DIN 1629: St 37.0, St 44.0, St 52.0 |
| DIN10210/EN10219 S355J0H S355J2H |
| DIN 17175: St35.8, St45.8, 17Mn4, 19Mn5, 15Mo3, 13CrMo910, 10CrMo910, 14MoV63, X20CrMoV121 |
| GOST8732-78 8731-74 ST10 ST20 ST40 |
| API 5L: A B X42,X46, X52, X60, X65, X70, X80 |
| Standard |
| GB/T 8163: Seamless steel tubes for liquid service |
| GB 3087: Seamless Steel Tubes for Low and Medium Pressure |
| GB 5310: Seamless steel tubes and pipes for high pressure boiler |
| ASTM A106:Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service |
| ASTM A179:Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes |
| ASTM A192: Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service |
| ASTM A333: Standard Specification for Seamless and Welded Steel Pipe for Low-Temperature Service |
| ASTM A335: Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature ServiceJIS G3452: Carbon Steel Pipes for Ordinary Piping |
| JIS G3454: Carbon Steel Pipes for Pressure Service |
| BS 3059: steel boiler and superhearer tubes |
| DIN 1629: seamless circular tubes of non alloy steels with special quality requirement |
| DIN 17175: seamless steel tubes for elevated temperatures |
| DIN10210/DIN10219 |
| GOST8732-78/GOST8731-74 |
| API 5L: Line Pipe |
BLACK STEEL PIPE
Factory Tour
BLACK STEEL PIPE
Overview
BLACK STEEL PIPE
BLACK STEEL PIPE
Euipment
BLACK STEEL PIPE
BLACK STEEL PIPE
Quality Control & Inspection
Relevant Test: Chemical Component Analysis---Mechanical Properties(Ultimate tensile strength,Yield strength,Elongation)---Technics Properties(Flattening Test,Flaring
Test,Bending Test,Hardness Test,Blow Test,etc)---Exterior Size Inspection---Nondestructive Test---Hydrostatic Test;
BLACK STEEL PIPE
Packaging
1) Plastic plug in both ends---- Packed in budles----protcted by plastic film----put into woven bags
2) Plastic plug in both ends---- Packed in budles----protcted by plastic film----put into woven bags----put into crate
3) Hexagonal bundles of max. 1,500kg with several steel strips, Wrapped in waterproof paper, PVC sleeve,and sackcloth with several steel strips or packed in heavy tri-wall boxes, wooden boxes, wooden slats as requires;Type: Round , Square, Rectangle, Hexagon. Streamline, etc;
Black Steel Pipe
Bundles
Black Steel Pipe
Black Steel Pipe
Woven bags and Crate
Black Steel Pipe
1. Free sample is available
2. Small quantity order is acceptable
3. Quality Control is strict
4. Third Party inspection is acceptable
5. 12 months Quality Guarantee
6. Payment Term is negotiable
