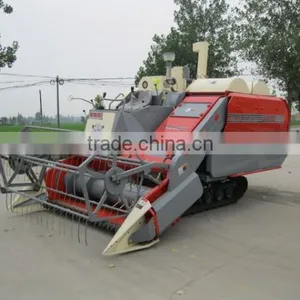

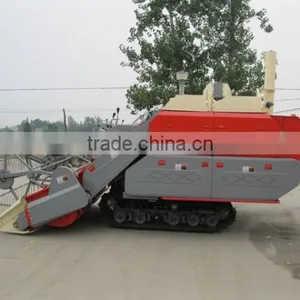

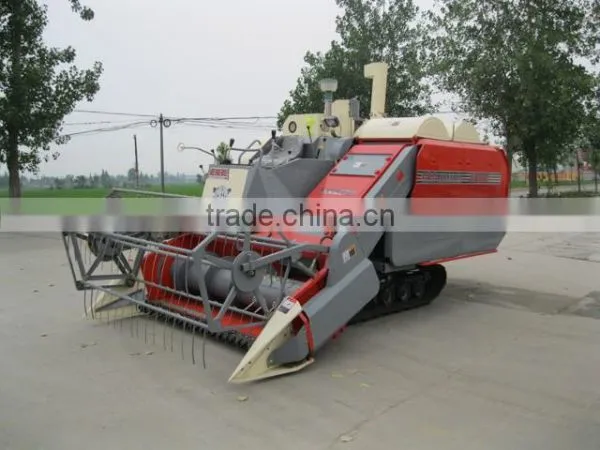

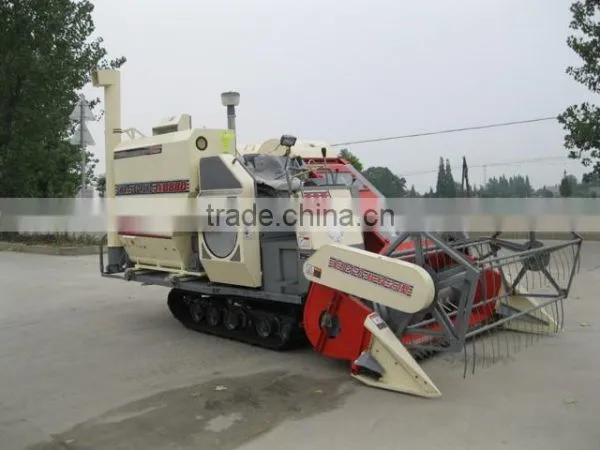

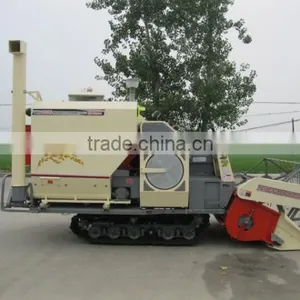

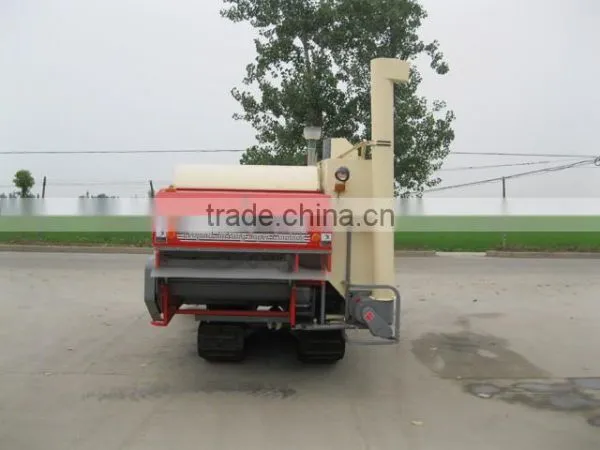

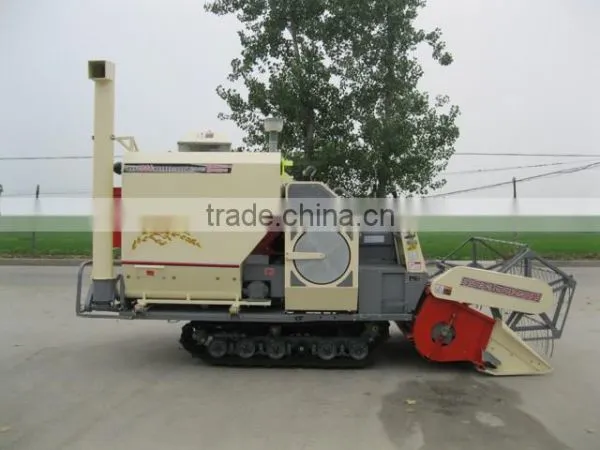

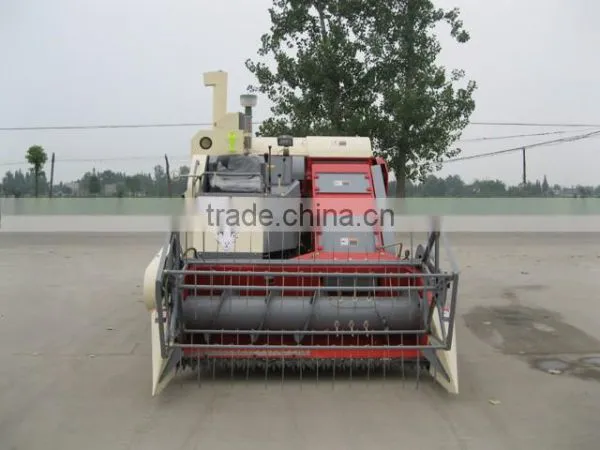

Help CenterJYB 4LYZ-2.0 COMBINE HARVESTER
Related Products
-
JYB 4LYZ-1.6 COMBINE HARVESTERNegotiableMOQ: 1 Set -
JYB 4LYZ-1.4 COMBINE HARVESTERNegotiableMOQ: 1 Set
-
COMBINE HARVESTER FOR RICE, WHEAT, RAPESEED, BARLEY AND OTHER GRANULAR CROPNegotiableMOQ: 3 Units
-
High Purity 4LZ-3.0 Rice & Wheat Combine HarvesterNegotiableMOQ: 3 Sets
-
High Purity 4LZ-3.0 :Rice & Wheat Smail Tank Combine HarvesterNegotiableMOQ: 3 Sets
Specifications

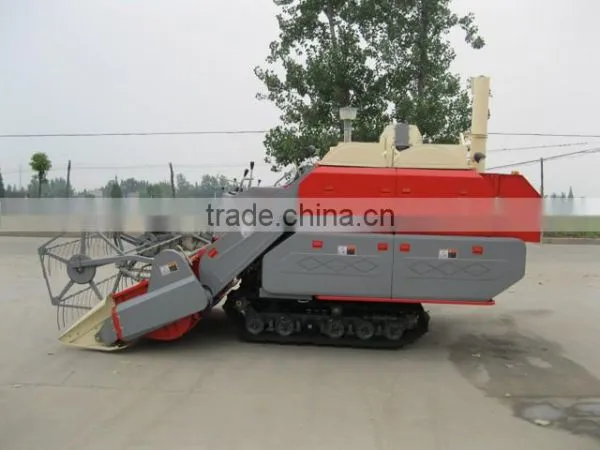

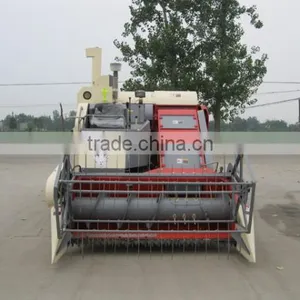

JYB 4LYZ-2.0 COMBINE HARVESTERPRODUCT SPECIFICATION:
OVERALL DIMENSION (mm): Length 4550 × Width 2350 × Heights 2300
WEIGHT (kg): 2700
FEEDING CAPACITY (kg/s): 2.0
HARVESTING CAPACITY (hm²/h): 0.2-0.4
ENGINE: Engine Model: 498BT/BZT/L
Rated Power ( kw/hp ): 65/88, 55/75(Alternative)
Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel, Turbocharged Engine.
Rated Rotation Speed (r/min) : 2600
Fuel Tank Capacity ( l ): 70
DRIVING SYSTEM: Crawlers: Track Gauge (mm): 970; Width×ground contact length ( mm ): 400×1500
Crawler Steering Radius (mm): left turn 3400; right turn 3400
Minimum Ground Clearance (mm): 280
Type of Gearbox: Mechanism + HST(3F, 3R)
Theoretical Operating Speed ( km/h ): 5
Type of Brake: By Foot
Steering: Clutch and Brake
CUTTING HEAD: Pickup Reel: Type: Tooth (off-centre ); Diameter( mm ): 900; Nos: 5
Height Adjustment: Hydraulics
Cutting Bar Length (mm ): 2000
Type of Cutting Bar Auger: Screw Conveying
Type of Blade: V Type / Left and Right
Rape Seed Extension: Optional
THRESHING & SEPARATING & CLEANING SYSTEM: Threshing System: Spiked Tooth Axial Flow
Main Threshing Cylinder Size Diameter × Length ( mm ): 540×1285
Assistant Threshing Cylinder Size Diameter × Length ( mm ): 540×650
Reshresher: Blade-Rotation
Concave Sieve: Grid × 2
Blower Fan: Type: Swirl; Diameter( mm ): 335; Nos: 2
GRAIN STORING: Machanism Option: Grain Tank with Unloading Auger, Capacity: 1149L
Manual Operation
Product Description
4LYZ-2.0 combine harvester with excellent performance in different crops and different field conditions, the machine is easy for operation and maintenance, it is a safety and energy-saving machine.
Packaging & Shipping
Strong standard export package suitable for long distance transportation.
