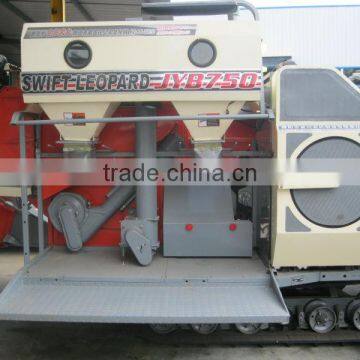

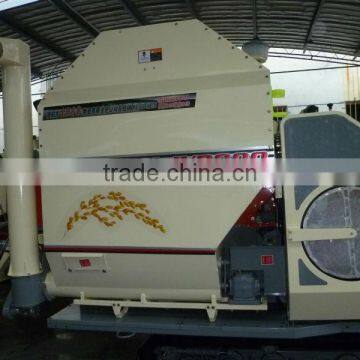

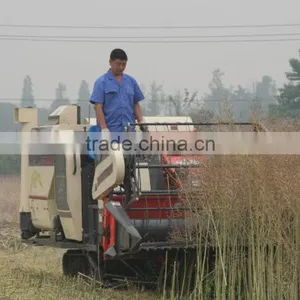

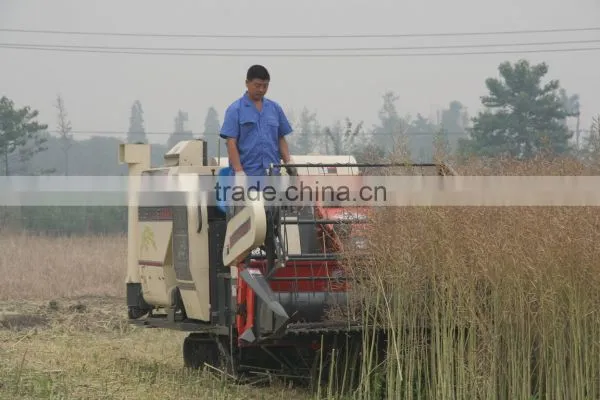

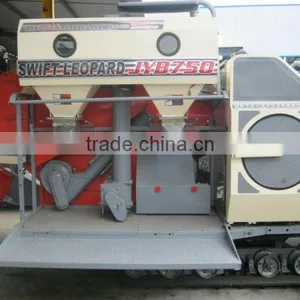

COMBINE HARVESTER FOR RICE, WHEAT, RAPESEED, BARLEY AND OTHER GRANULAR CROP
Negotiable
MOQ: 3 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Combine Harvester
Drive Type:
Other, HST
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port Shanghai port Shenzhen Port available
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Purity 4LZ-3.0 Rice & Wheat Combine HarvesterNegotiableMOQ: 3 Sets -
High Purity 4LZ-3.0 :Rice & Wheat Smail Tank Combine HarvesterNegotiableMOQ: 3 Sets
-
High Purity 4LZ-3.0 :Rice & Wheat Big Tank Combine HarvesterNegotiableMOQ: 3 Sets
-
High Purity 4LZ-3.0 Rice & Wheat Big Tank Combine HarvesterNegotiableMOQ: 3 Sets
-
4lz-3.0 Full Feed Rice Wheat Combine HarvesterNegotiableMOQ: 3 Sets
Condition
New
Type
Combine Harvester
Drive Type
Other, HST
Usage
Other
Place of Origin
Sichuan, China
Brand Name
JYB
Model Number
4LZ-2.0
Dimension(L*W*H)
4550*2350*2300
Weight
2700kg
Certificate
Other
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
duble threshing drums, high purity.new grain tank very convenient for repairing.

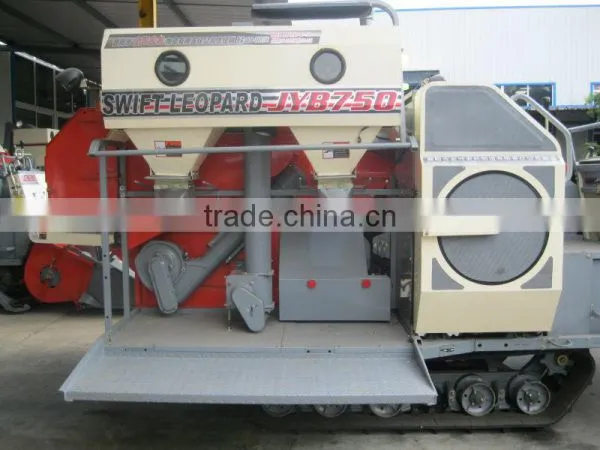

small grain tank by manual operation availab
| Model: | 4LYZ-2.0 Combine Harvester | Application: | Grain, Wheat, Rape Seed. | |
| Type: | Full-feed, Track Combine | Safety & Handling: | See Product Brochures. | |
| Make: | JinYang Bao | Occupation: | Manufacturer | |
| Product Description: | 4LYZ-2.0 combine with excellent performance in different crops and different field conditions, | |||
| the machine is easy for operation and maintenance, it is a safety and energy-saving machine. | ||||
| Quality System: | Production Plant Accredited to GB/T 19001-2008 / ISO9001 :2008. | |||
| Packing: | Strong standard export package suitable for long distance transportation. | |||
| Specification: | ||||
| Overall Dimension | Length×Width×Heights ( mm ): 4550×2350×2300 | |||
| Weight (kg) | 2700 | |||
| Feeding Capacity( kg/s ) | 2 | |||
| Harvesting Capacity(hm²/h): | 0.2-0.4 | |||
| Engine | Engine Model: 498BT/BZT/L; | |||
| Rated Power ( kw/hp ): 65/88, 55/75 (Alternative) | ||||
| Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. | ||||
| Rated Rotation Speed (r/min) : 2600 | ||||
| Fuel Tank Capacity ( l ): 70 | ||||
| Driving System | Crawlers: Track Gauge( mm ): 970; Width×ground contact length ( mm ): 400×1500 | |||
| Crawler Steering Radius ( mm ): left turn 3400; right turn 3400 | ||||
| Minimum Ground Clearance (mm): 280 | ||||
| Type of Gearbox: Mechanism + HST(3F, 3R) | ||||
| Theoretical Operating Speed ( km/h ): 5 | ||||
| Type of Brake: By Foot. | ||||
| Steering: Clutch and Brake. | ||||
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 | |||
| Height Adjustment: Hydaulics. | ||||
| Cutting Bar Length ( mm ): 2000 | ||||
| Type of Cutting Bar Auger: Screw Conveying. | ||||
| Type of Blade: V Type / Left and Right. | ||||
| Rape Seed Extension: Optional | ||||
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow | |||
| & Cleaning System | Main Threshing Cylinder Size Diameter × Length ( mm ): 540×1285 | |||
| Assistant Threshing Cylinder Size Diameter × Length ( mm ): 540×650 | ||||
| Reshresher: Blade Rotation. | ||||
| Concave Sieve: Grid × 2 | ||||
| Fan: Type: Swirl; Diameter( mm ): 325; Nos: 2 | ||||

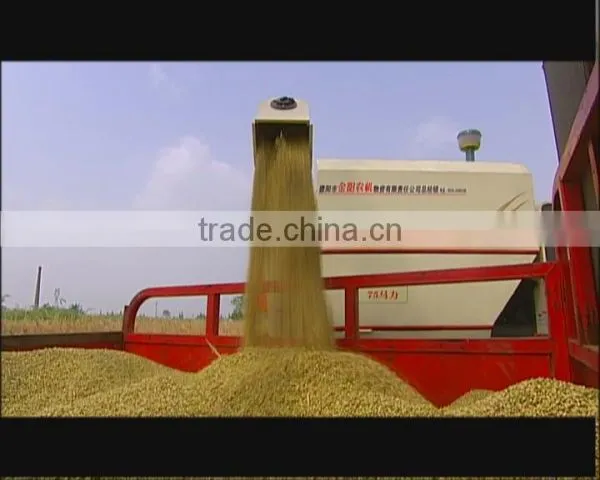

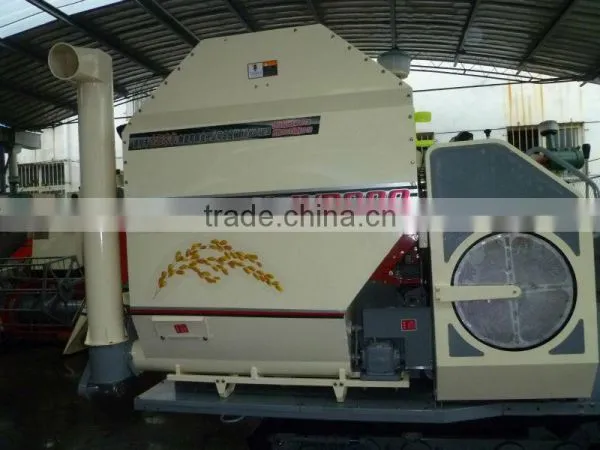

| Grain Storing | Option 1: Grain Tank with Unloading Auger, Capacity ( l ): 1149 | |||
| Option 2: Manual Operation. | ||||
